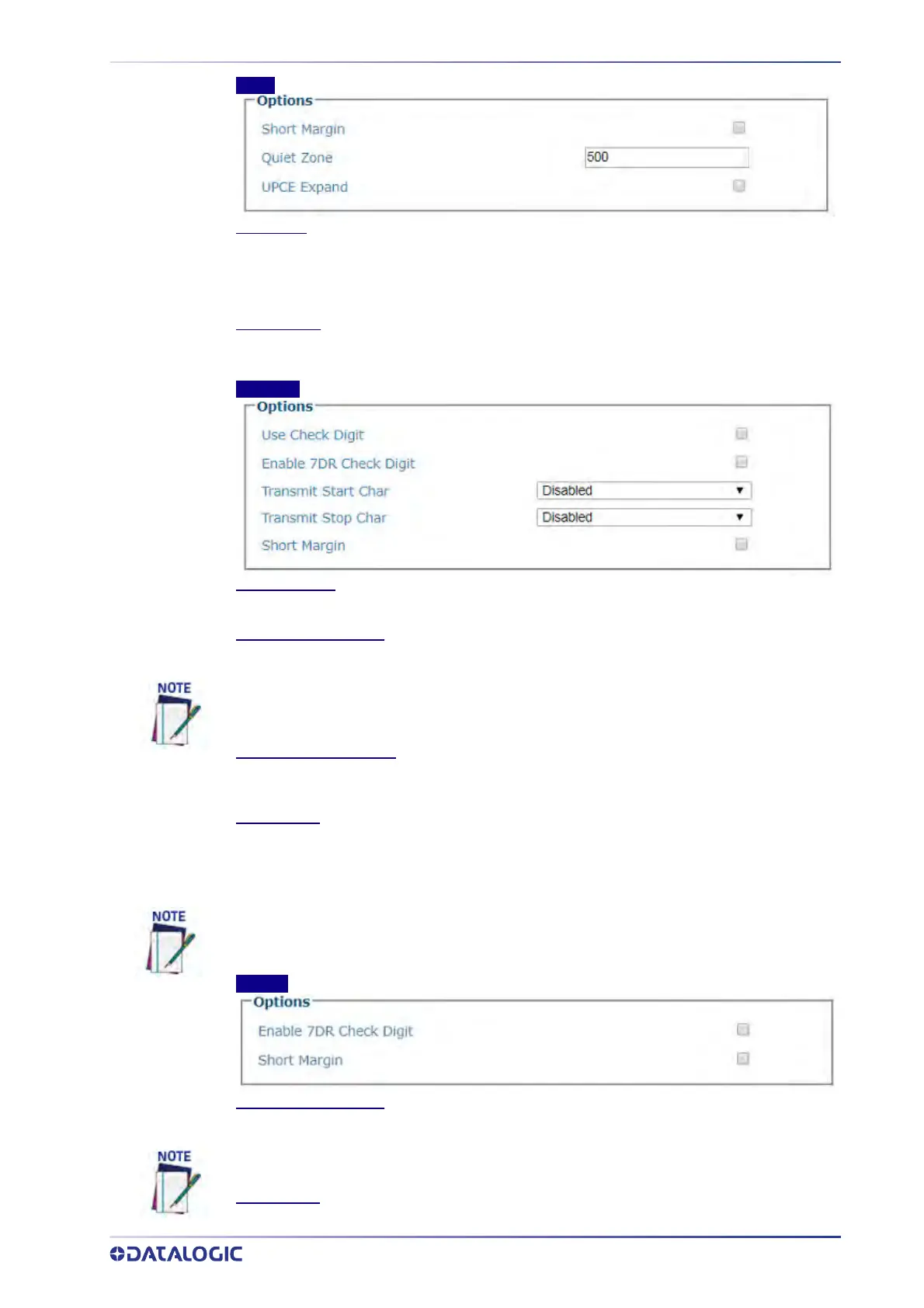

BARCODE SETTINGS TABLE
PRODUCT REFERENCE GUIDE
117
UPC-E
Quiet Zone
Specify the quiet zone in the field provided. This defines the minimum quiet zone (white
margins) measured in narrowest module width. This option may be symbology dependent. The
quiet zone is expressed as a percentage of module, 500 = 500% of the module = 5 times the
module.
UPCE Expand
Select the check box to enable conversion of a full-length UPC (UPC-A) UPC-E. Excess zeros will
be suppressed.
CODABAR
Use Check Digit
Select the check box to include the Check Digit in the code transmitted
Enable 7DR Check Digit
Select the check box to enable 7DR Check Digit.
Transmit Start/Stop Char
Select the check box to allow Start/Stop Characters. This parameter is available only for
Codabar code symbologies.
Short Margin
Select the check box to enable. Available for Code 128, Code GS1-128, Interleaved 2 of 5, Code
39, Code GS1-128, EAN, UPC, CODABAR, and Code 39. This options allows the bar code to have
an illegal quiet zone on one side of the bar code. If selected this could increase the processing
time.
Code 93
Enable 7DR Check Digit
Select the check box to enable 7DR Check Digit.
Short Margin
The 7DR Check Digit is not use with all code symbologies.
For Codabar codes the start/stop characters must be considered in the match conditions.
The 7DR Check Digit is not use with all code symbologies.
