Datalogic AV900 - Three Av500 S, Light Curtain, Two Distance Sensors CBX510, CBX100, Trigger and Tach; Four Av500 S, Light Curtain, Two Distance Sensors CBX510, CBX100, Trigger, Tach

STANDARD INTERCONNECTION DIAGRAMS INTRODUCTION
PRODUCT REFERENCE GUIDE 333

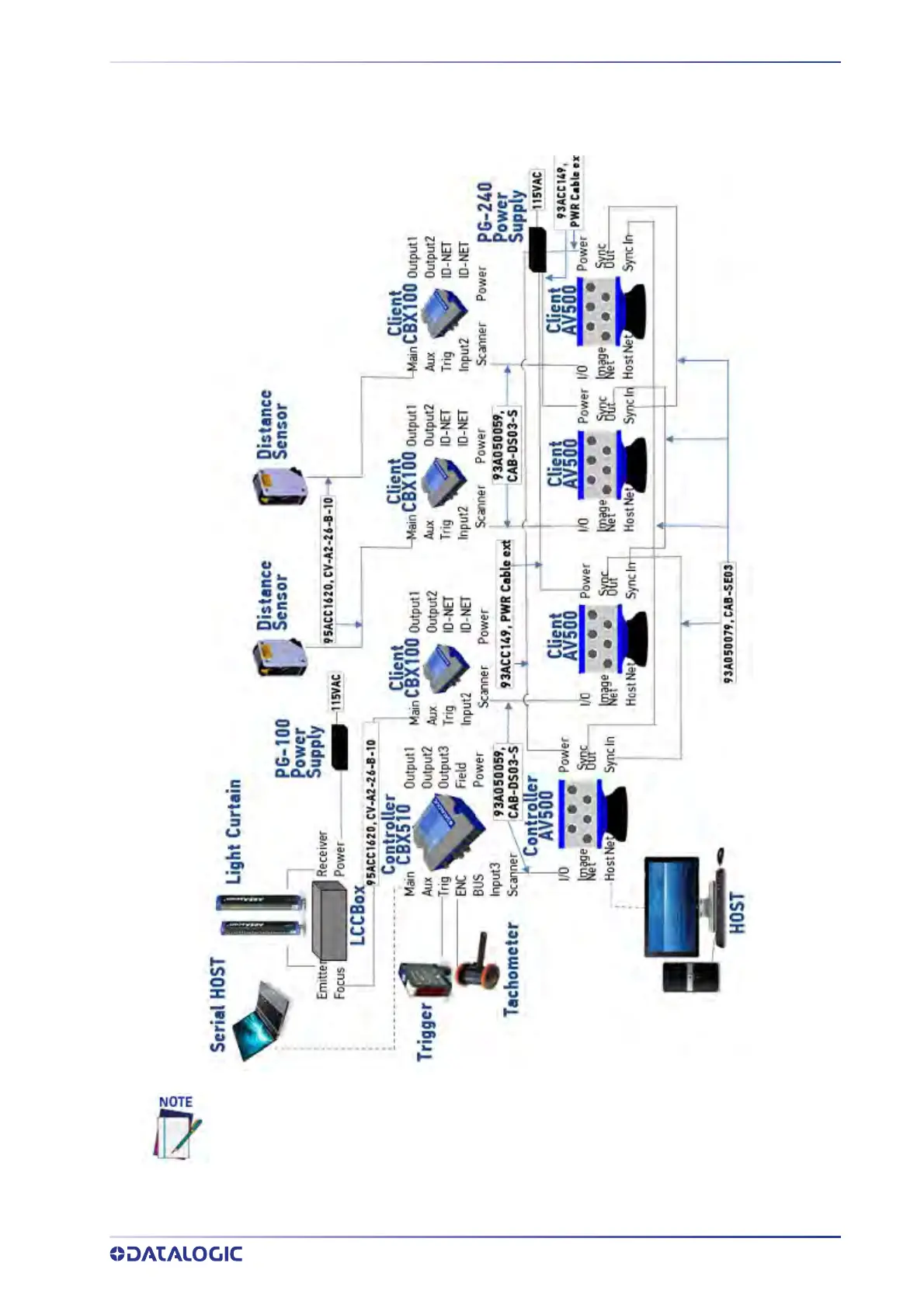

Four AV500’s, Light Curtain, Two Distance Sensors CBX510, CBX100,
Trigger, Tachometer
AV500/900 cameras cannot accommodate fieldbus, however a CBX800 can be used for
fieldbus applications.
