X-PRESS FUNCTIONALITY
PRODUCT REFERENCE GUIDE
13
X-PRESS FUNCTIONALITY

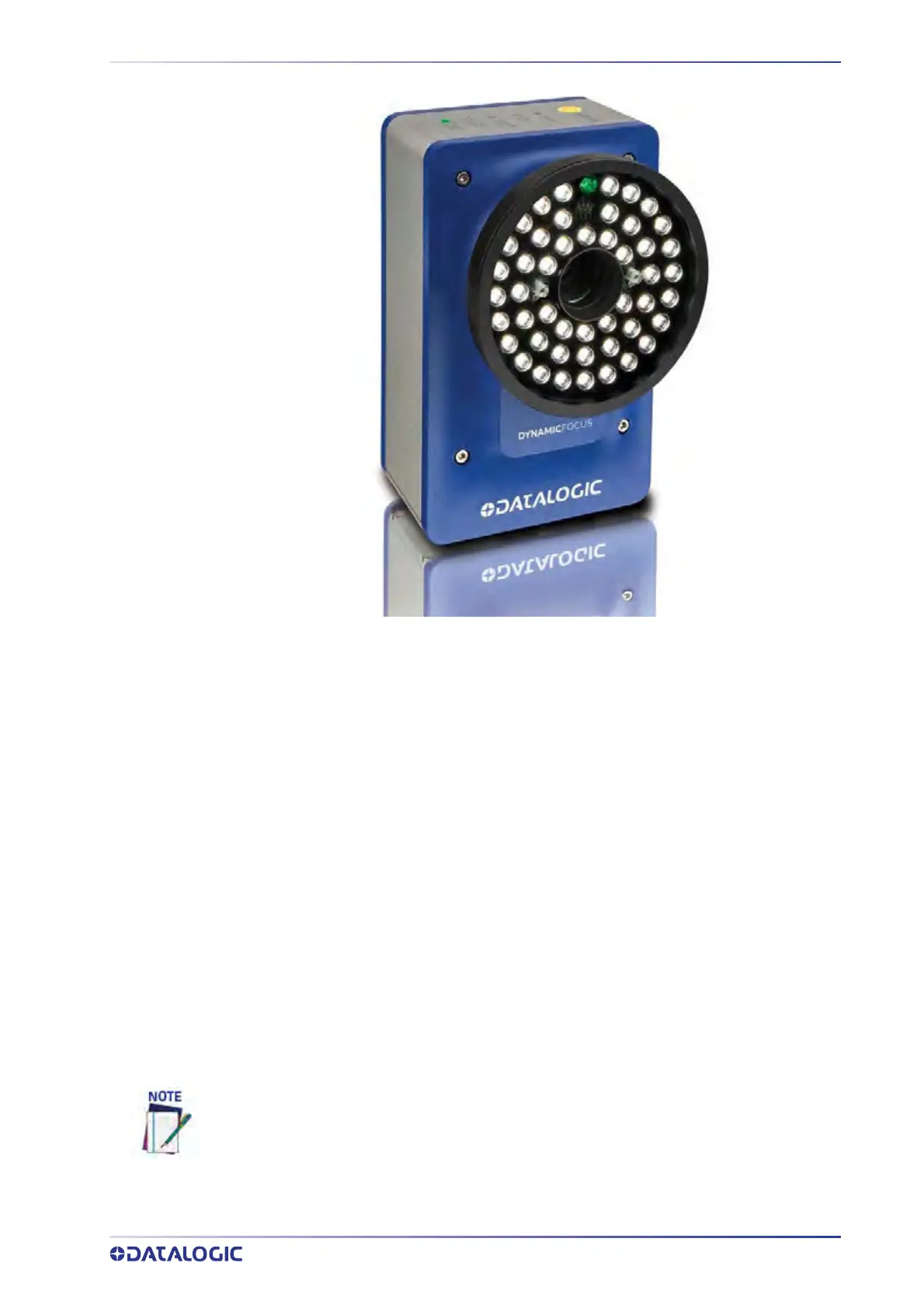

X-PRESS is the intuitive Human Machine Interface designed to improve ease of installa-
tion and maintenance. Status information is clearly presented by means of the five col-
ored LEDs, and a single push button gives immediate access to the following relevant
functions:
• Tes
t with bar graph visualization to check static reading performance
• Focus/Locate the Focus LED will blink
• Setup to perform Exposure Time and sensitivity calibration
• Turn on aiming diodes
• Learn to self-detect and auto-configure for reading unknown codes
1 – Pr
ess the butt
on (the Status LED will give a visual feedback).
2 – Hold the butto
n until the specific function LED is on (Test, Focus, Setup or Learn).
3 – Release the button t
o enter the specific function.
Once in a mode, if you press and hold the button again, it will exit that mode and con-
tinue the scrolling sequence to select a mode.
Once button is pressed, the cycle of L
EDs activ
ation is as follows:
If the Xpress web interface is active, the LEDs will flash four times indicating it is dis-
abling the active interface. The hardware interface returns to its initial state for regular
access.
