SETTING UP THE DM3610 DIMENSIONER
PRODUCT REFERENCE GUIDE
283

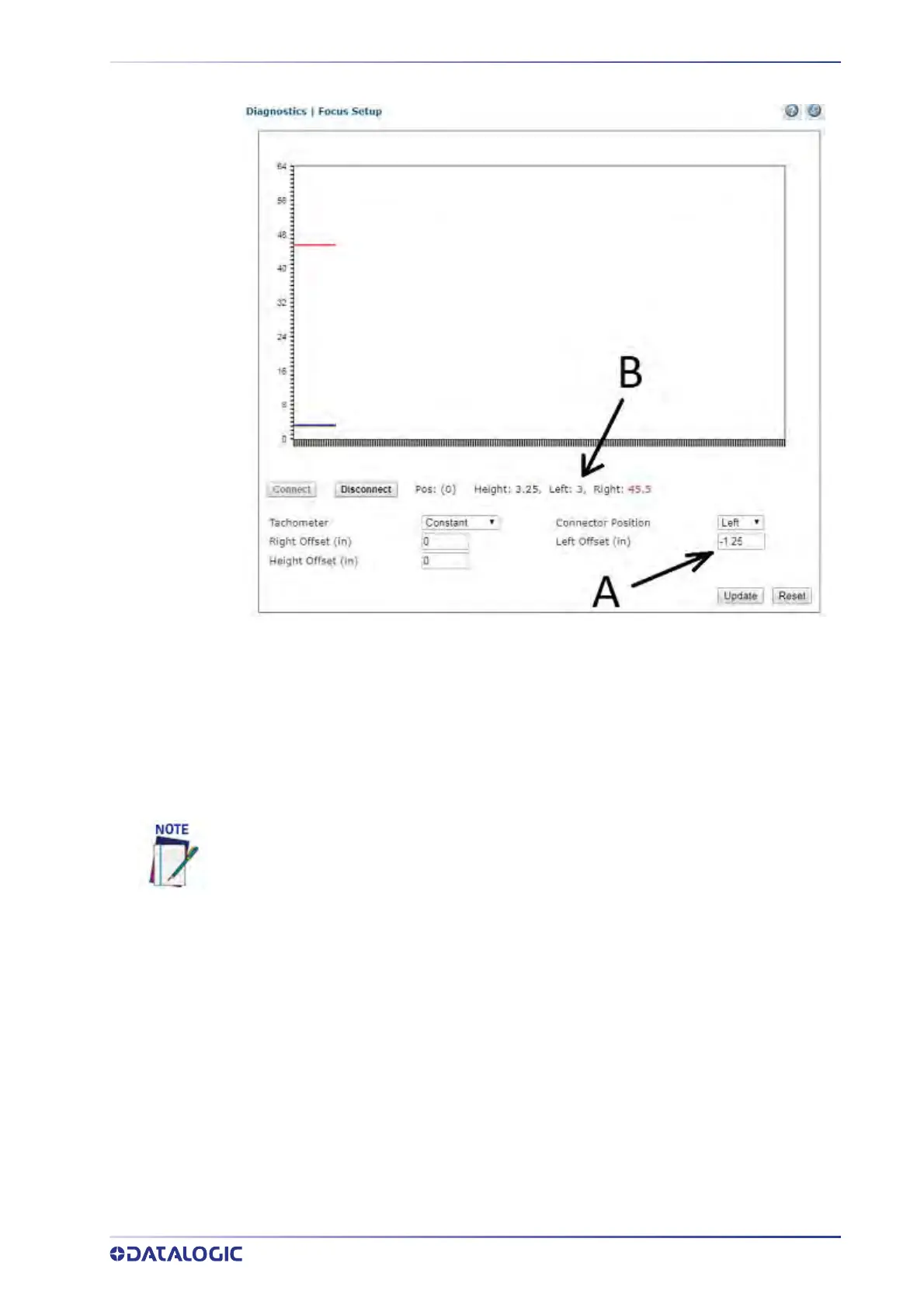

6. The position value displayed for the Left is now 3.
7. Click Update to save your changes.
Adjusting Right Focus Offset
1. Position the test box with a known width in the dimensioning line so the LEFT side
of the box is at the RIGHT far working distance as specified by the application
installation drawing.
2. View the displayed data and determine what the RIGHT v
alue is. In our ex
ample
the value is 6.5”.
When working with a DC3000 multi-head based Dimensioning system, the text box
must intercept all dimensioning lines.
