AV500 TIMING AND DISTANCE DIAGRAMS
PRODUCT REFERENCE GUIDE
359

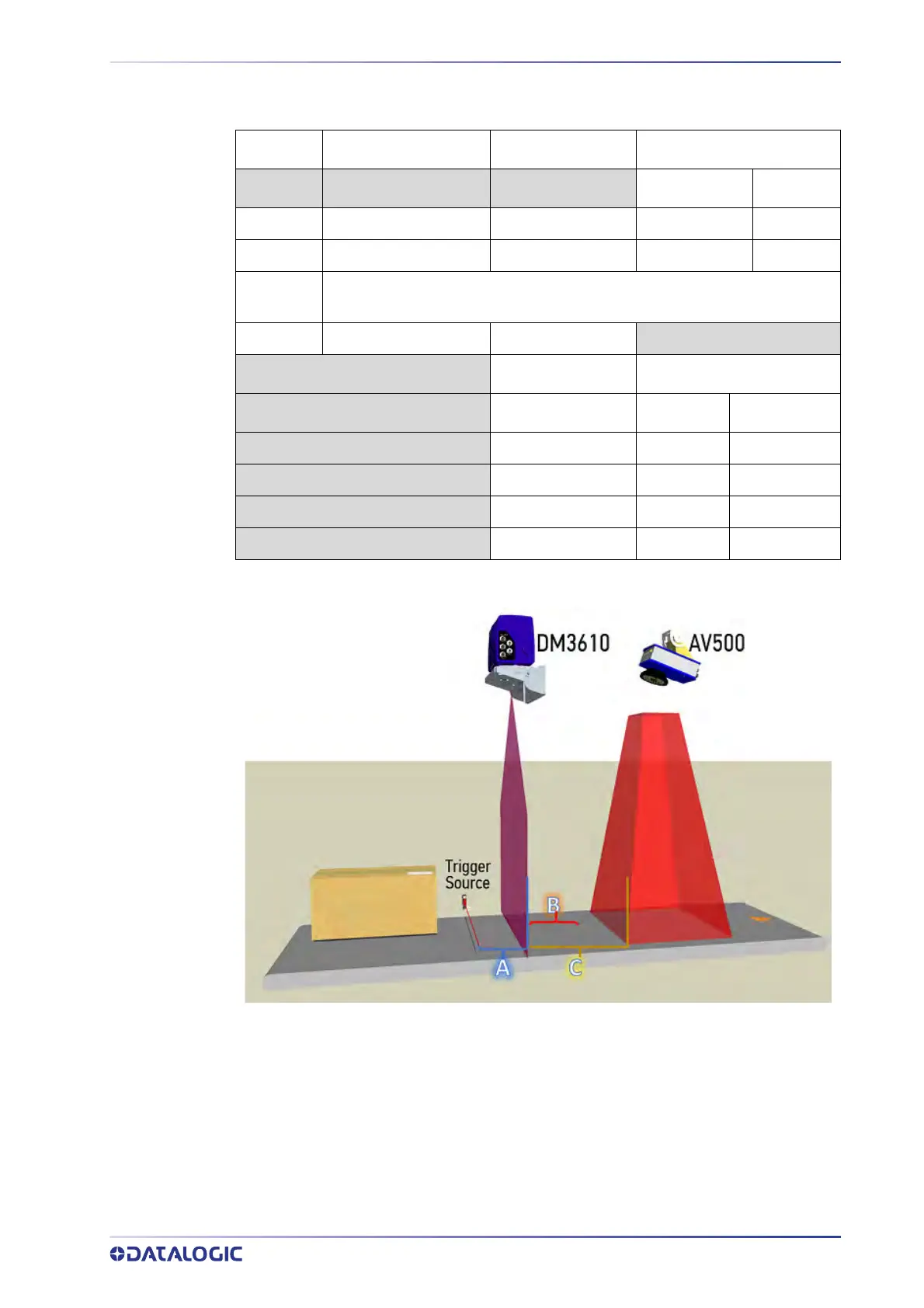

Focusing with a Single DM3610
Identifier Item 1 Item 2 Minimum Distance
[in] [mm]
A Trigger Source DM3610 5 127
B DM3610 Scanline Focus Xmit Point 5 127
B note:
The “B” distance number is inserted into the Focus Transmit Point in the
DM36
00 and the Position Sensor Transmit Delay in the AV7000
C DM3610 Scanline
AV500
Speed [ft/min] Minimum Distance
[in] [mm]
300 15.4 391
400 17.7 450
500 20.0 508
600 22.3 566
