Static Calibration
Static calibration is used to set up and calibrate the camera while the conveyor is sitting
still.
1. Navigate to Modif
y Set

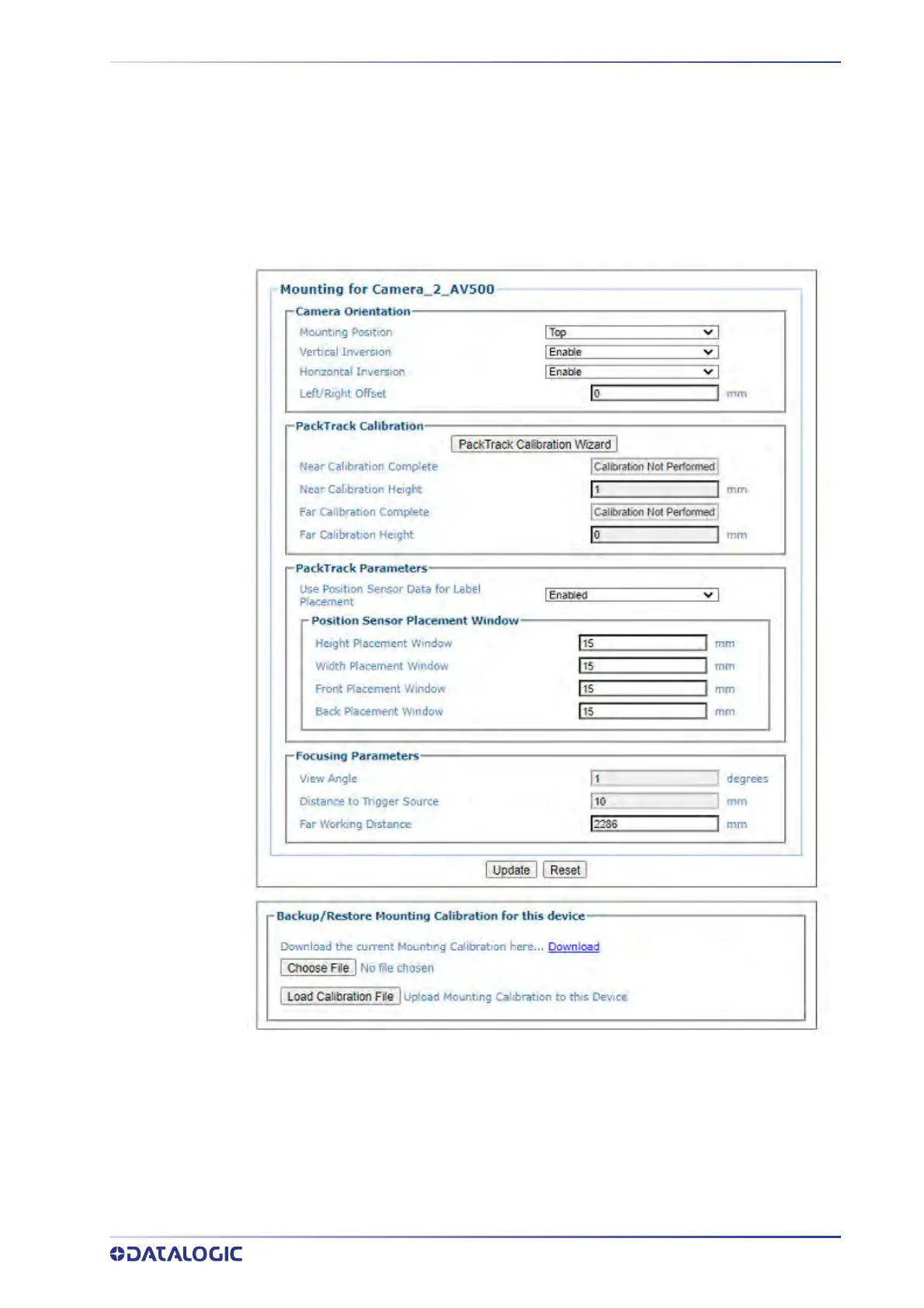

tings | Device Settings | Camera N | Mounting. The
Mounting window opens. See “Device Settings | Camera #n | Mounting” on
page 174.
2. Click PackTrack Calibration Wizard button and Mounting Calibration for Camera n
and Step 1/5: Far Distance Calibration Target Alignment appears.
