ELECTRICAL INSTALLATION
70 AV500/AV900 2D CAMERA
AS1 Area Sensor to CBX100/CBX800 Connections
The AS1 area sensors can detect and provide trigger for very small or irregularly shaped
objects. PNP Output.

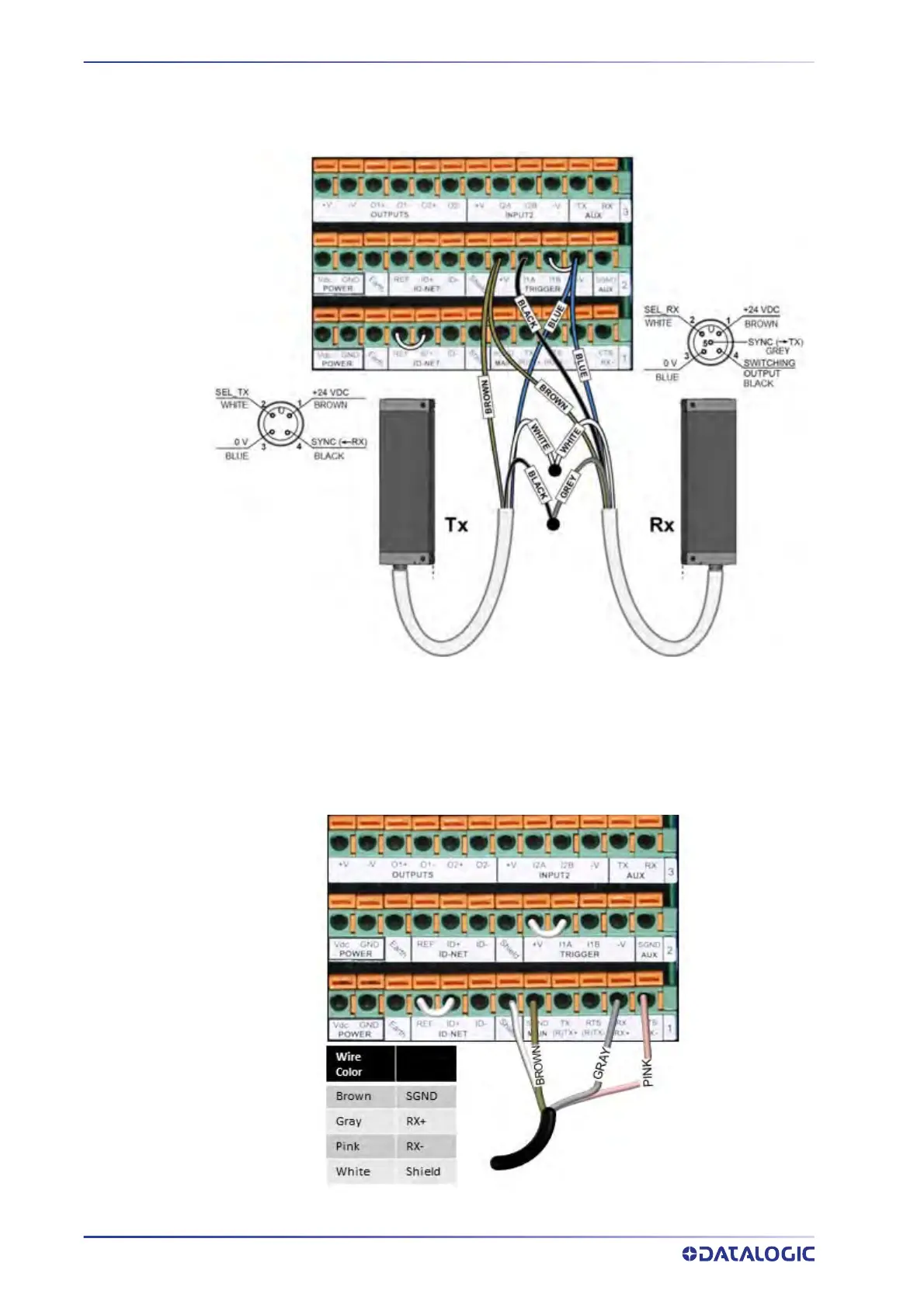

Light Curtain to CBX100/CBX800 Connections
The Light Curtain may be connected to the CBX100/CX800 if there is more than one
AV500/AV900.
