Datalogic AV900 - Digital Output Configuration from CBX510

ELECTRICAL INSTALLATION
60 AV500/AV900 2D CAMERA

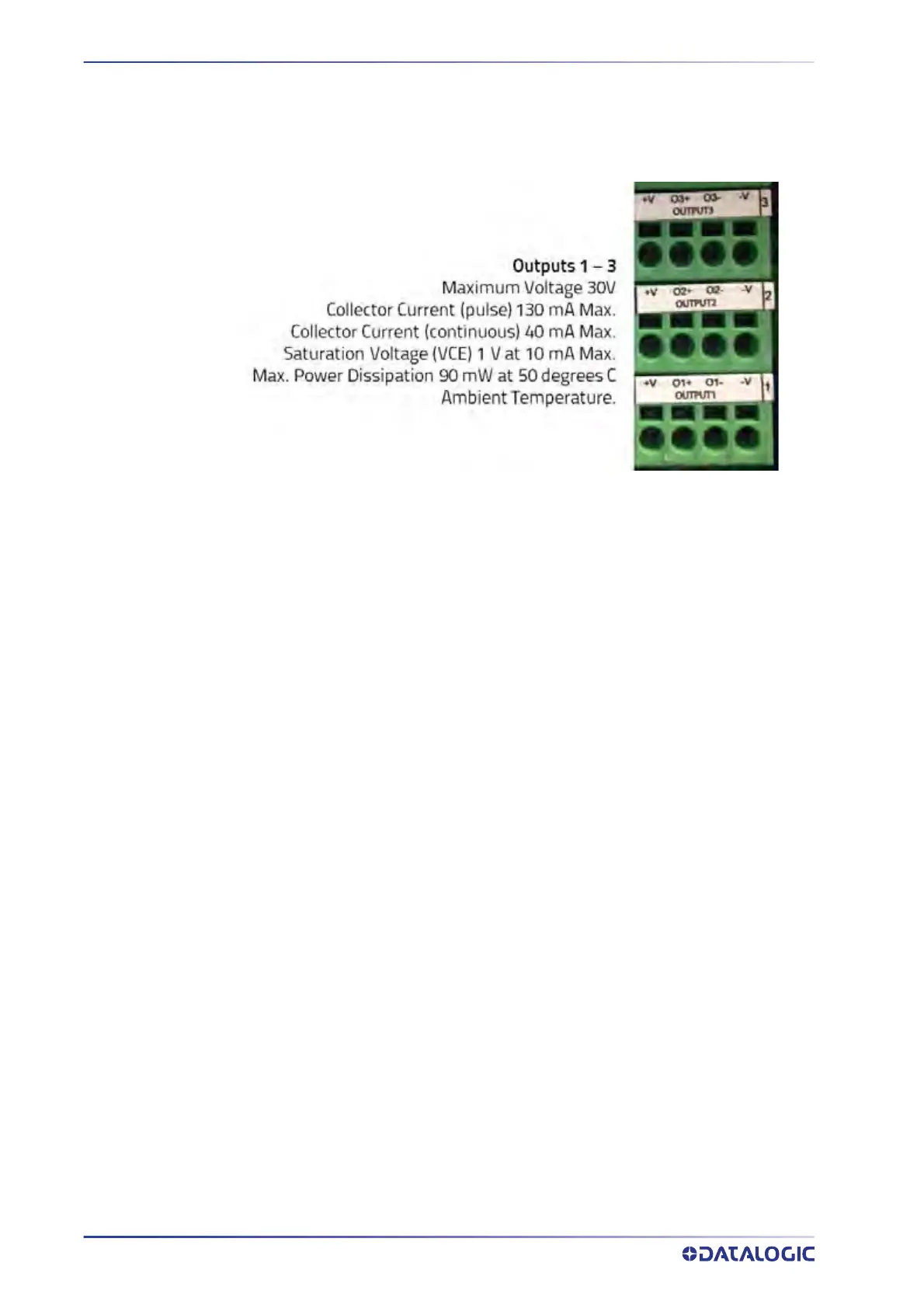

Digital Output Configuration from CBX510
The CBX510 includes an OUTPUT block for wiring relays as needed for external accesso-
ries.
Schematics for Isolated and Non-Isolated digital outputs are provided below.
