AV500/AV900 2D CAMERA
Subregion Wizard
Use the Subregion Wizard to automatically draw a green rectangle around a region of
the pattern specifying the Imaging Subregion. The Imaging Subregion (if enabled) is
used to dete
rmine what frames intersect a package (PackTrack).
To access the Subregion Wizard:
1. In the menu tree under Modify Settings, n
avi
gate to Device Settings | <Camera
Name> | Imaging. The Imaging window opens. Click the Subregion Wizard but-
ton.
2. Place a Calibration Target at the maximum distance from the camera. Make sure
the checker board grid is centered in the green alignment area and the 'Conveyor
Direction' arrow is pointing in the direction the conveyor travels. Leave the target
under the camera.

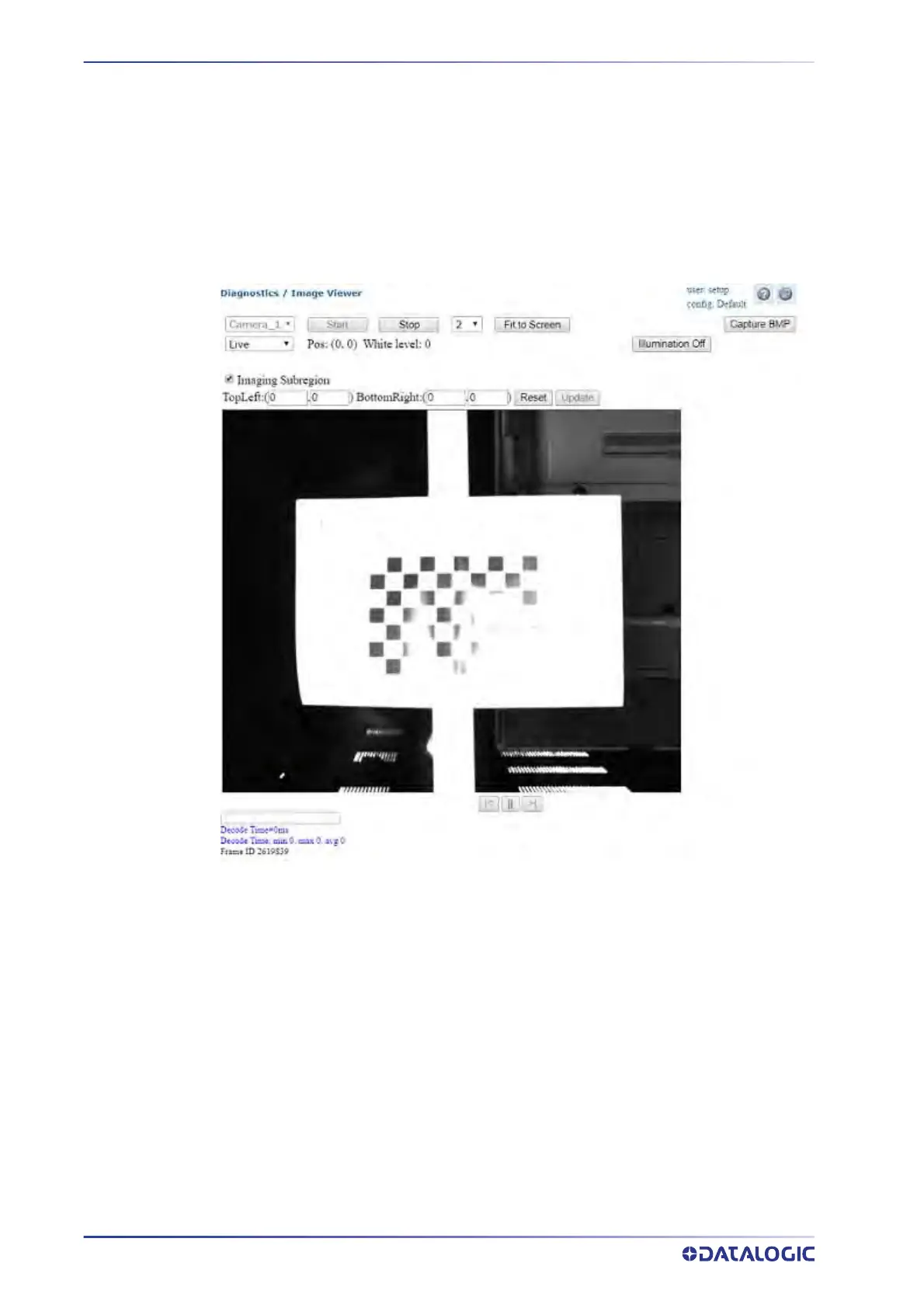

3. Drag your mouse to select the “Subregion ar
ea” you desire.
