244 AV500/AV900 2D CAMERA

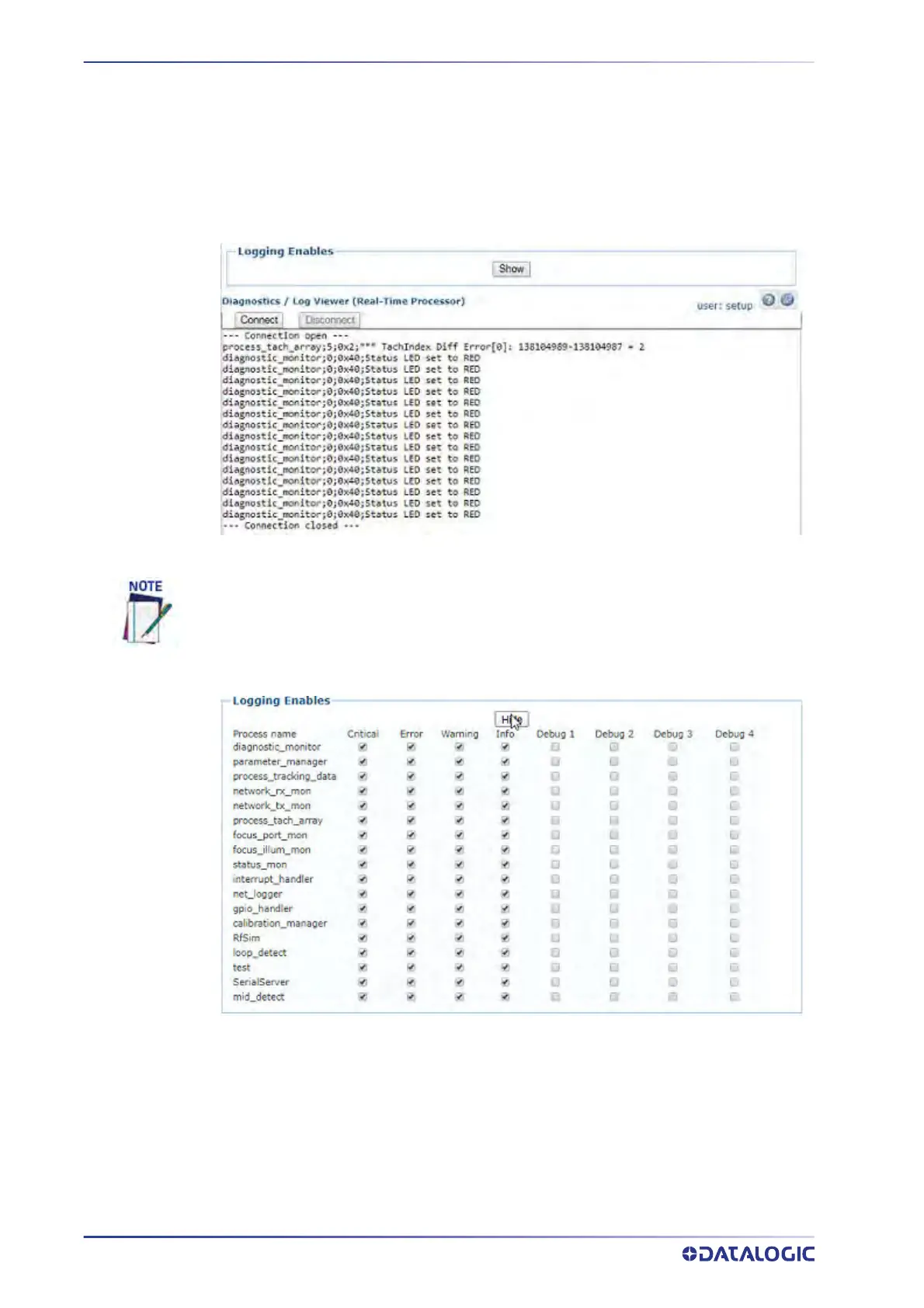

Diagnostics | Log Viewer (RTP)
Use the Log Viewer (RTP) window to view encoder/tachometer, trigger and focusing
event information.
To access the Log Viewer (RTP) window:
1. In the menu tree under Diagnostics, click Log Viewer (RTP). The Log Viewer (RTP)
wi
ndow opens.
2. Click Show at the top of the window to view a Logging Enables table of processes.
3. Select the check boxes related to the named processes to display Logged Informa-
tion pertaining to Critical, Error, Warning, Info, or Debug conditions.
4. Click Connect t
o view logged da
ta from the real-time processes.
5. Click Disconnect to pause the
data stream.
The RTP Log Viewer tool is used by Datalogic support to assist in diagnosing issues
experienced by the camera. If a log option is selected, it will remain enabled until it is
unselected or power is cycled to the unit.
