ELECTRICAL INSTALLATION
64
AV500/AV900 2D CAMERA
LCC 75XX Light Curtain
When using the Datalogic Light Curtain for focusing, it must be wired to the CBX510
connected to the AV500/AV900 using the M12 cable that is part of the cable assembly in
the kit. (FOCUS CONTROL SMT CABLE) (93A201203). Cut off the M12 5-pin B-code con-

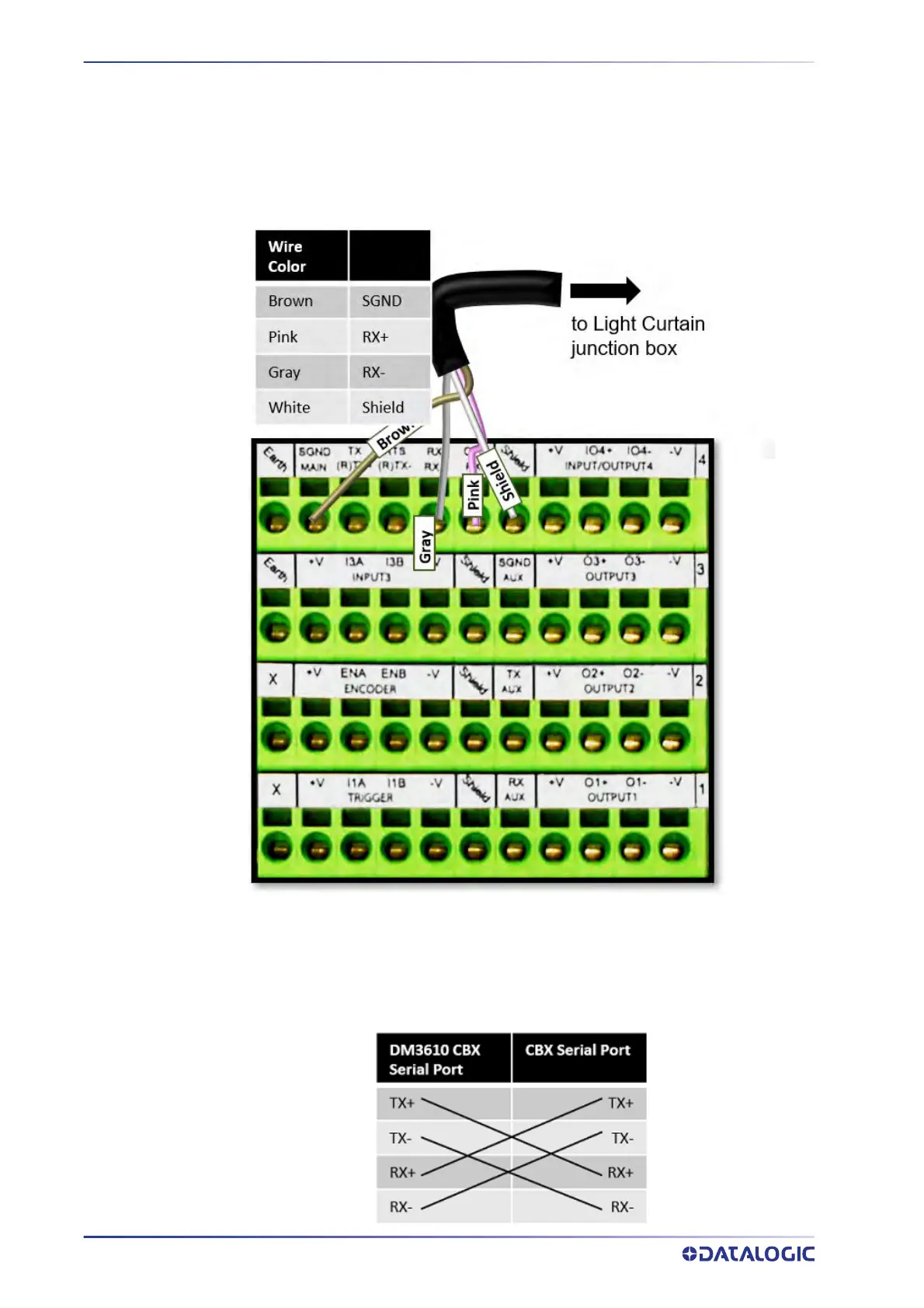

nector and strip back the wires to go into the CBX box as follows:
Wiring from DM3610 CBX to AV500/AV900 CBX
When using a DM3610 dimensioner for focusing, the DM3610’s CBX box must be wired
to the CBX box connected to the camera. Since each of the different CBX boxes may be
used, we will just show the connections necessary as follows:
