Imaging Calibration Wizard
Use the Imaging Calibration Wizard to automatically calibrate focus and sensitivity for
the Fixed, Dual and Sequential focus modes.
To access the Imaging Calibration Wiz
ard:
In the menu tree under Modify Settings, navigat
e to Device Settings | <Camera Name>
| Imaging. The Imaging window opens. Click the Imaging Calibration Wizard button.
The steps for this wizard are different based upon the focusing method you chose.
Fixed Focus Calibration

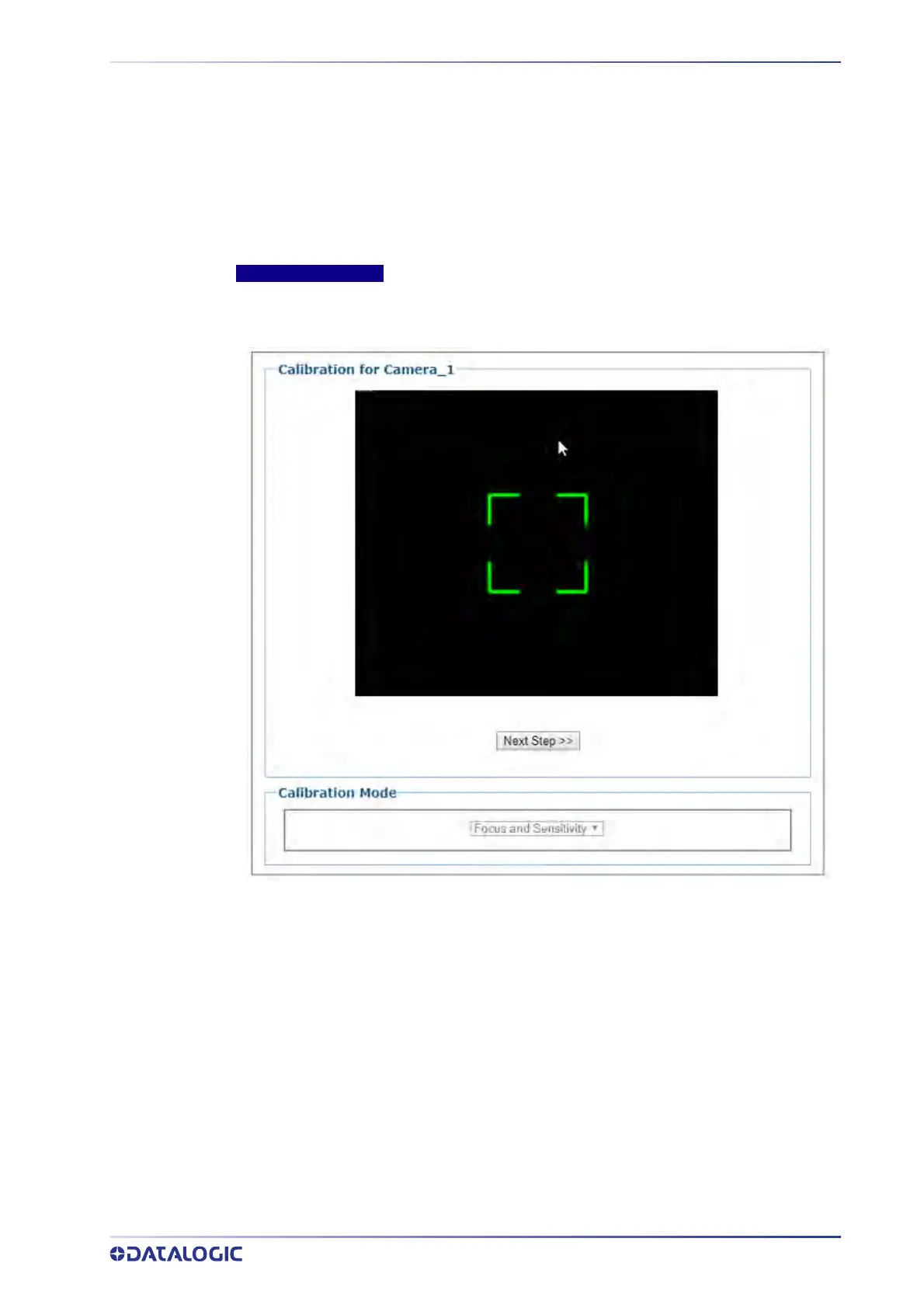

1. When you click the Imaging Calibration Wizard this is the first screen you will see.
Click Next Step>>
.
2. Place a Calibration Ta
rget, or clean barcode, in the middle of the desired working
range. Make sure the checker board grid, or a clean barcode, is centered in the
green alignment area. Leave the target under the camera and press Next Step>>.
