AV500 TIMING AND DISTANCE DIAGRAMS
PRODUCT REFERENCE GUIDE
357

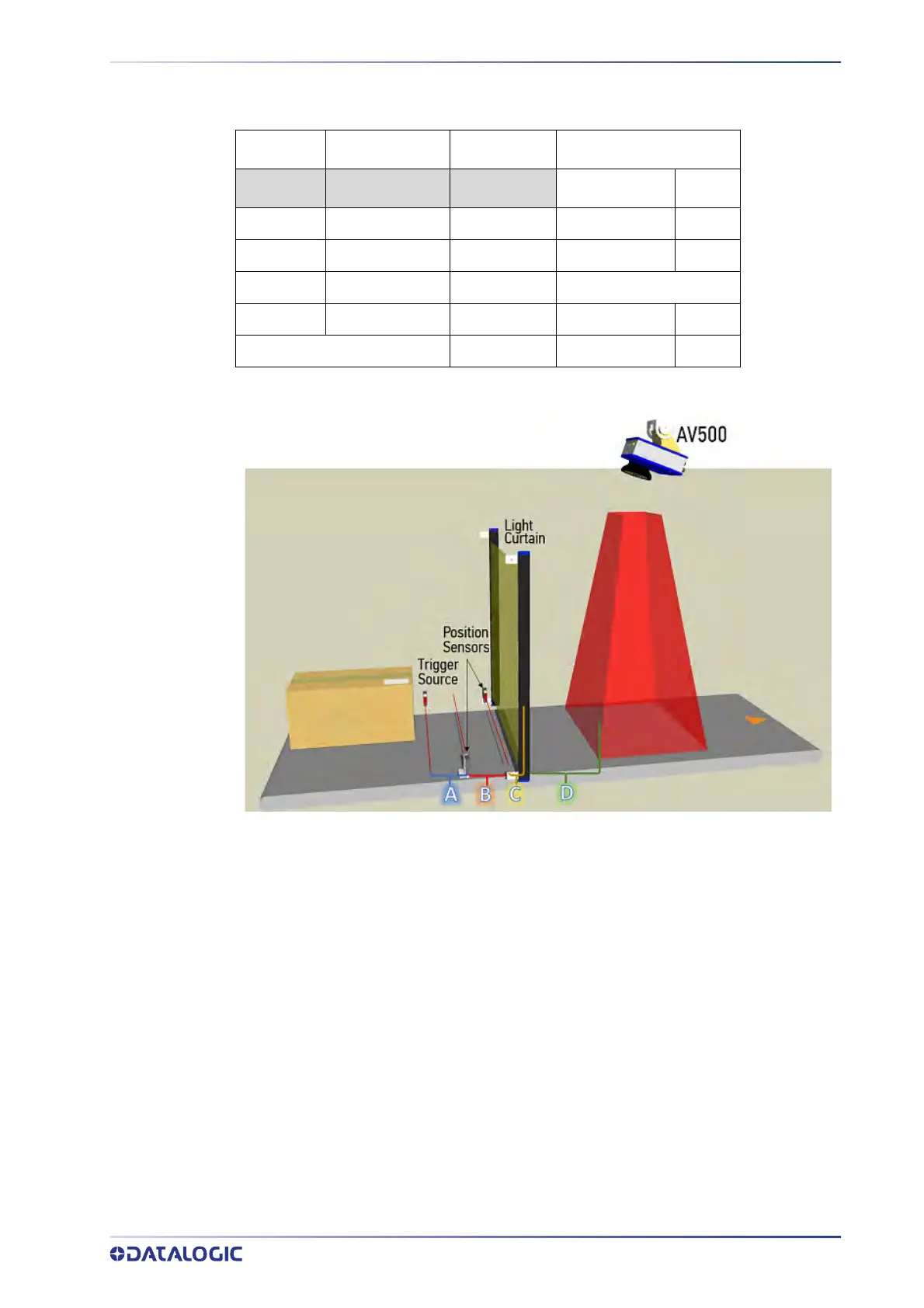

Focusing with a Light Curtain and S85
Identifier Item 1 Item 2 Distance
Standard (in.) Metric
A Trigger Source S85 #1 5 127
B S85 #1 S85 #2 5 127
C S85 #2 Light Curtain No distance required
D Light Curtain AV500 12 305
Position Sensor Delay 127
