TRIGGER, POSITIONING AND FOCUSING DEVICE SETUP
284 AV500/AV900 2D CAMERA

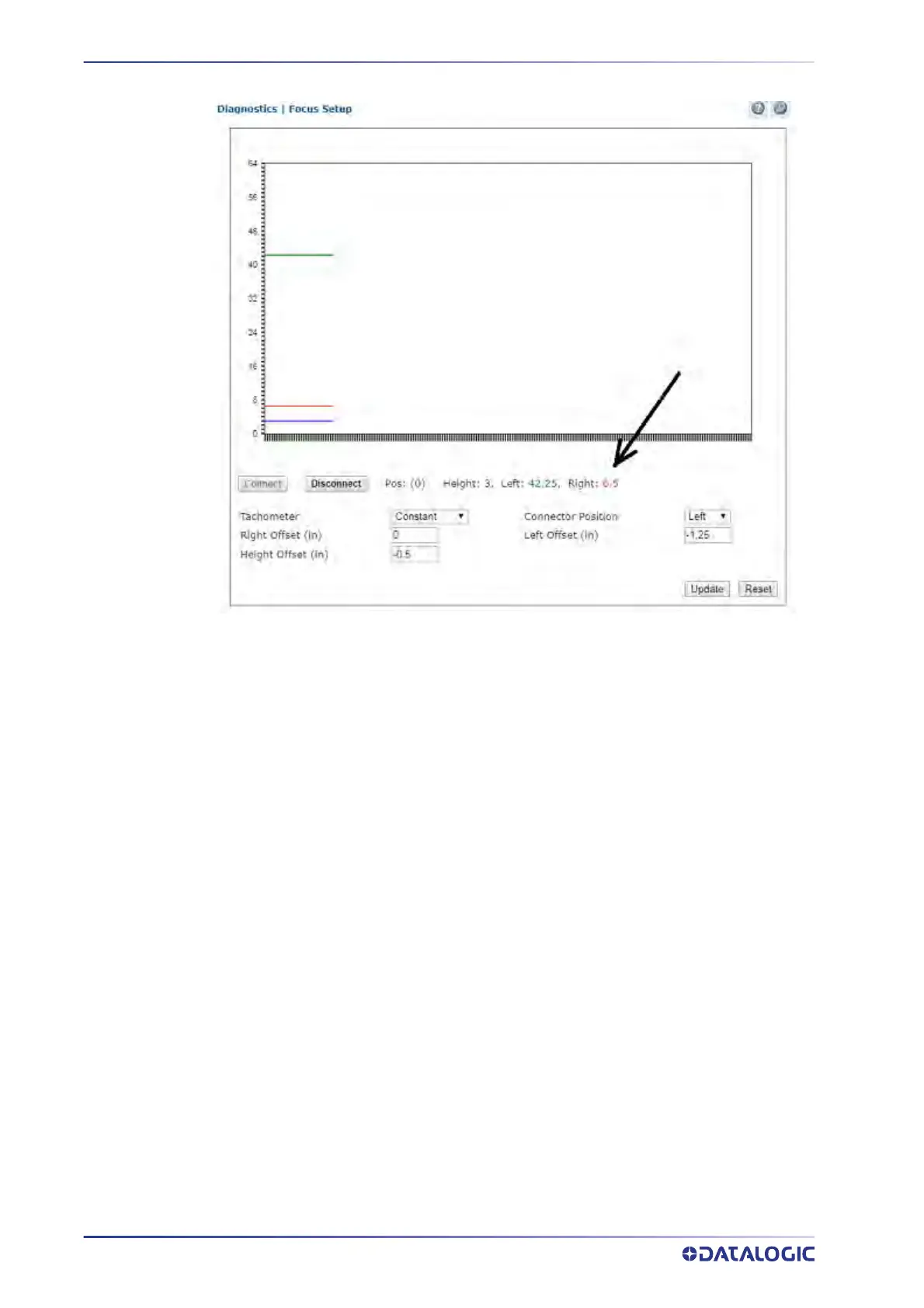

3. Subtract the width of the test box from the value displayed for RIGHT.
6.5 – 3 = 3.5
4. Enter the result into the RIGHT OFFSET field as a negative value, in our example it
is -3.5.
5. Note the position value displayed for RIGHT is now 3.
