TRIGGER, POSITIONING AND FOCUSING
DEVICE SETUP
282
AV500/AV900 2D CAMERA
3.

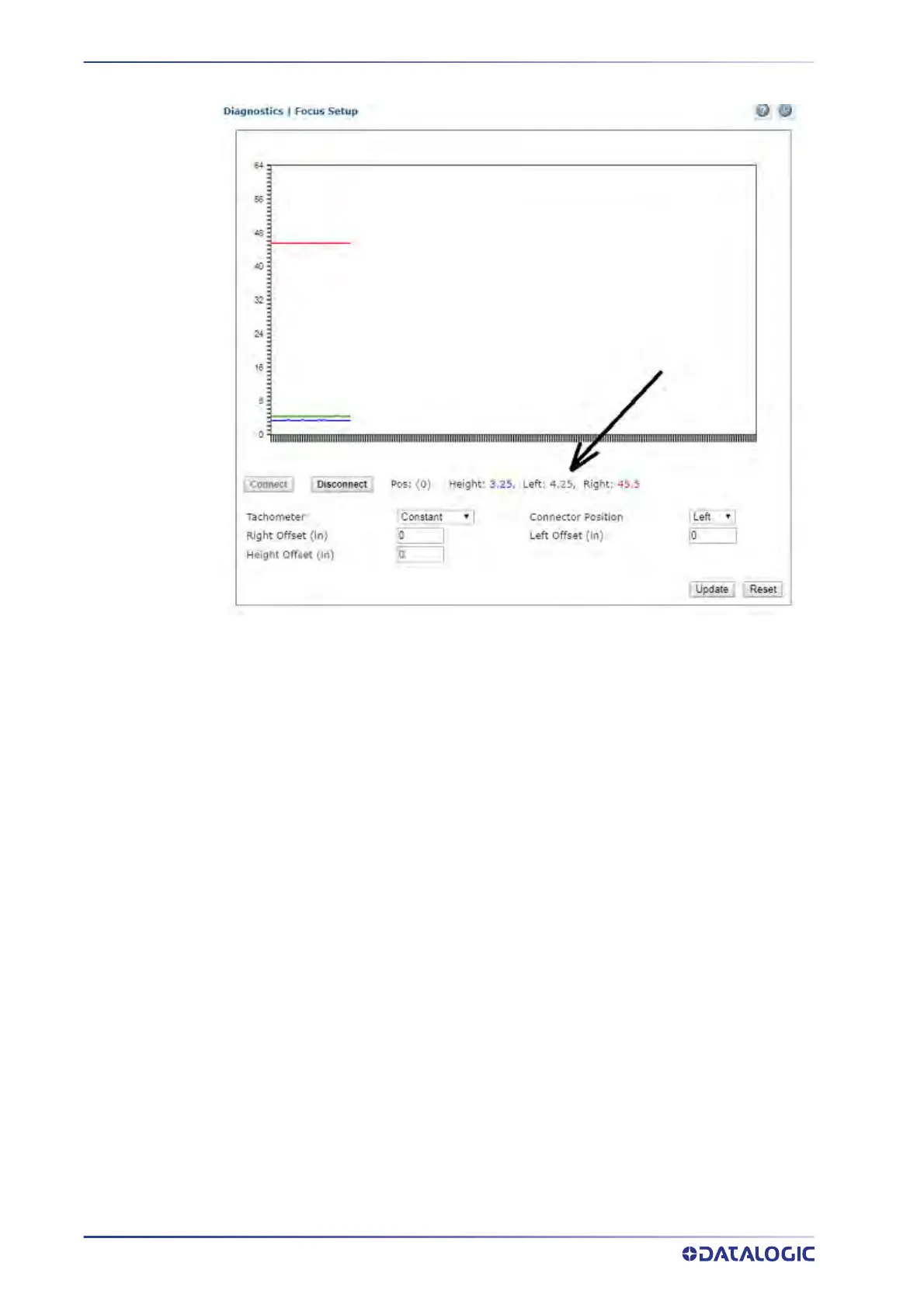

View the display
ed dat
a and determine wha
t the left v
alue is. In the displa
yed
ex
ample above, the value is 4.25”
.
4.
Subtract the width of
the test
box,
in our ex
ample it is 3”
, from the v
alue display
ed
for
L
ef
t
.
4.25 – 3 = 1.25
5.
Enter the result as a NE
GA
TIVE value in the Left Offset
field. In this case you will
enter -1.25.
