•Custom 1-5
•Trigger Message
Ethernet Options:
•Disable
•Standard
•Advanced
•Crisplant
•Beumer
•Custom 1-5
•Web Sentinel
•Video Coding
•SC5000
•Trigger Message

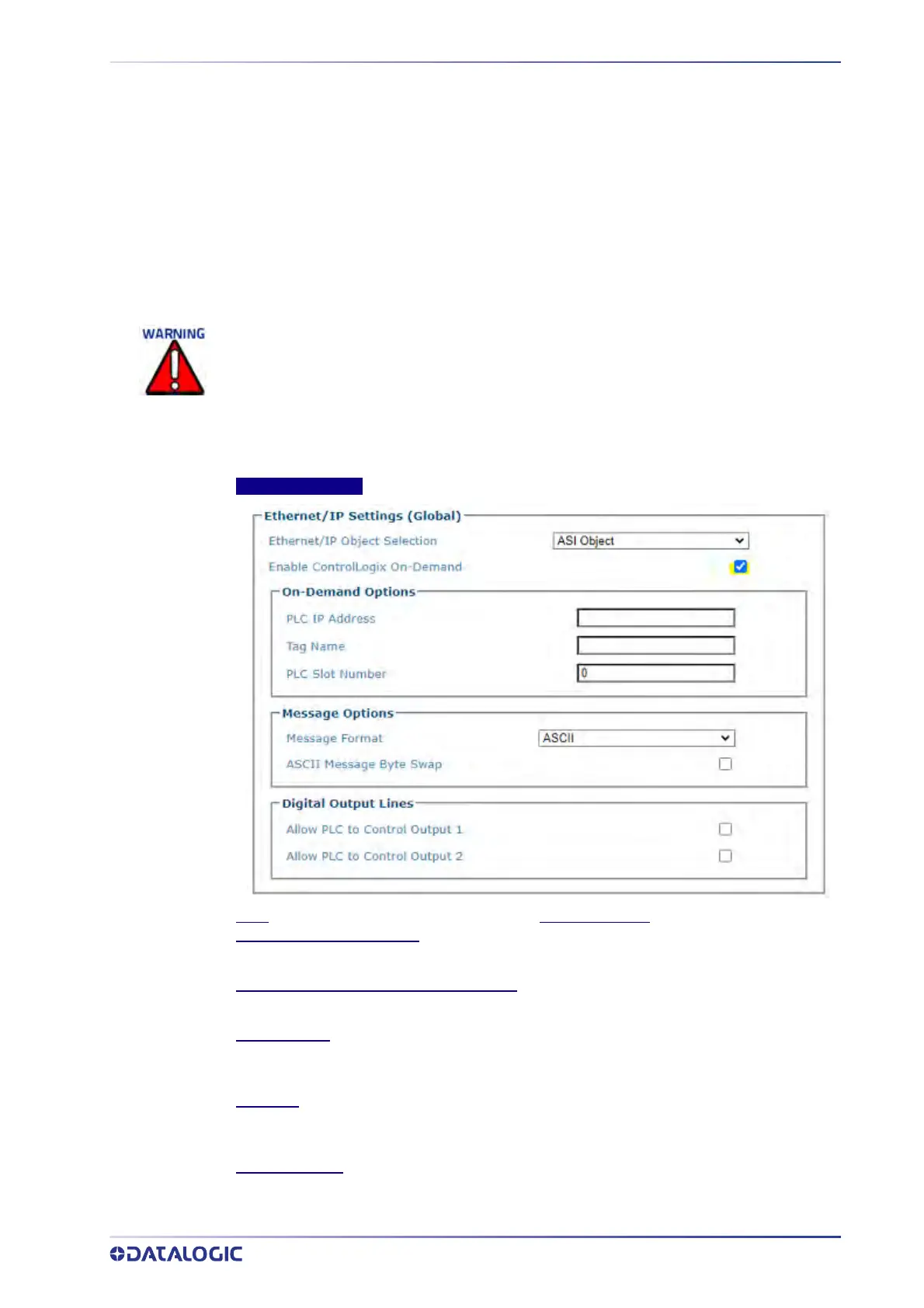

Ethernet IP Settings
See "
Ethernet IP INTRODUCTION" on page 335 for more details.
Ethernet/IP Object Selection
Select ASI Object from the drop-down list. Currently it is the only object.
Enable ControlLogix On-Demand Messaging
Select the check box to enable On-Demand Messaging when ASI Object is selected.
PLC IP Address
See "I/O ControlLogix Messaging Example" on page 341 for information about this
parameter.
Tag Name
See "I/O ControlLogix Messaging Example" on page 341 for information about this
parameter.
PLC Slot Number
See "I/O ControlLogix Messaging Example" on page 341 for information about this
parameter.
You must select Frame ID or Index for your Image names, if you are sending images to a
WebSentinel PLUS Server. This creates unique filenames for each frame, which is nec-
essary for capturing frames and saving them with WebSentinel PLUS.
