SETTING UP THE S85 PHOTOSENSOR
PRODUCT REFERENCE GUIDE
275

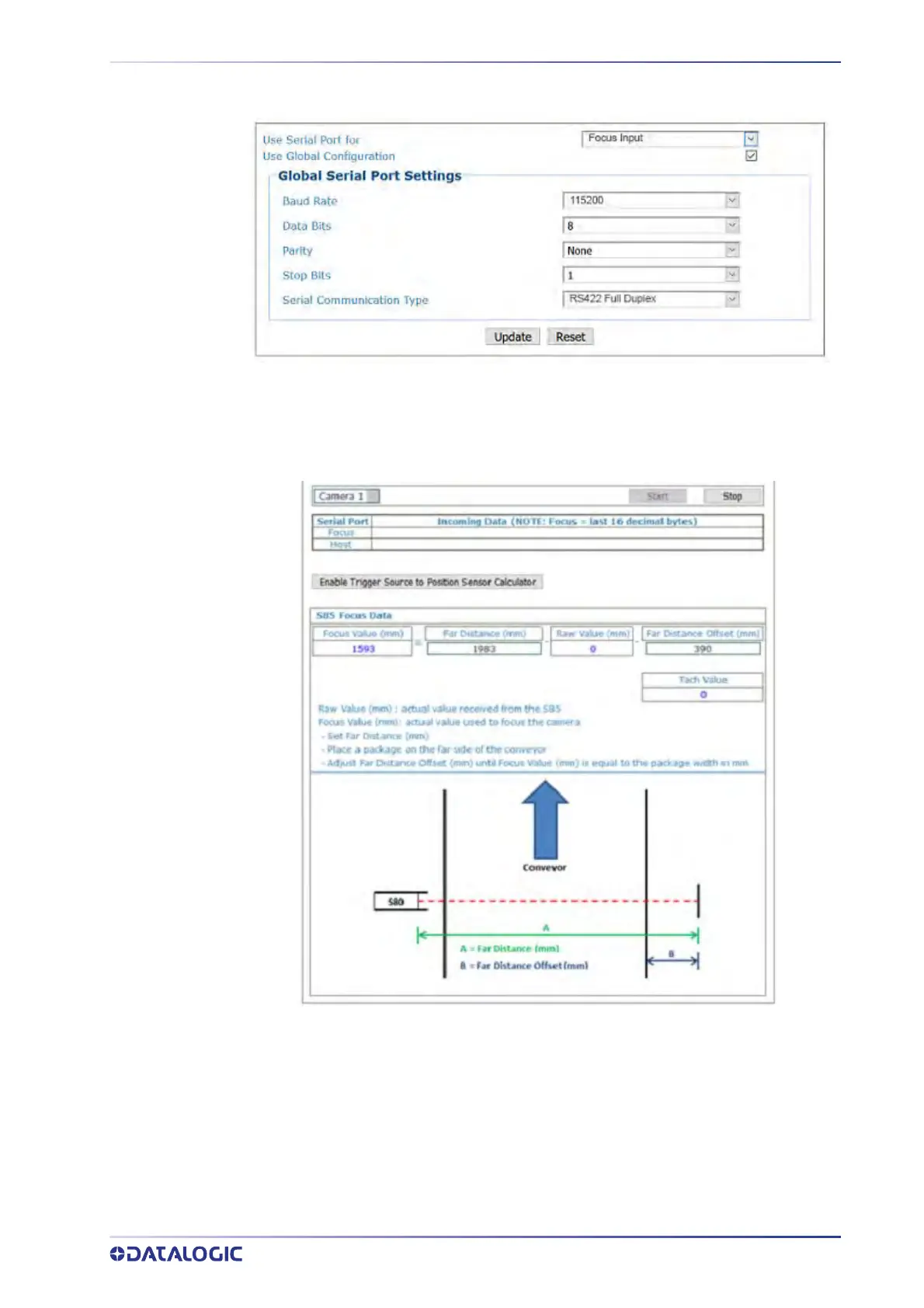

4. Set the Focus/Host Port parameters as shown below:. This will need to be done for
each camera an S85 is connected to.
5. Click Update to save your changes.
6. In the menu tree under
Diagnostics, click Serial Comm Status. The Serial Communi-
cations Status window opens. Follow the steps described below.
7. Once you have determined the appropriate Far Distance Offset, go back to the
Operating Mode window and enter it.
8. Re-enable your S85 and Click
Update to save your changes.
