INSTALLING THE DEFLECTION MIRROR
PRODUCT REFERENCE GUIDE
39

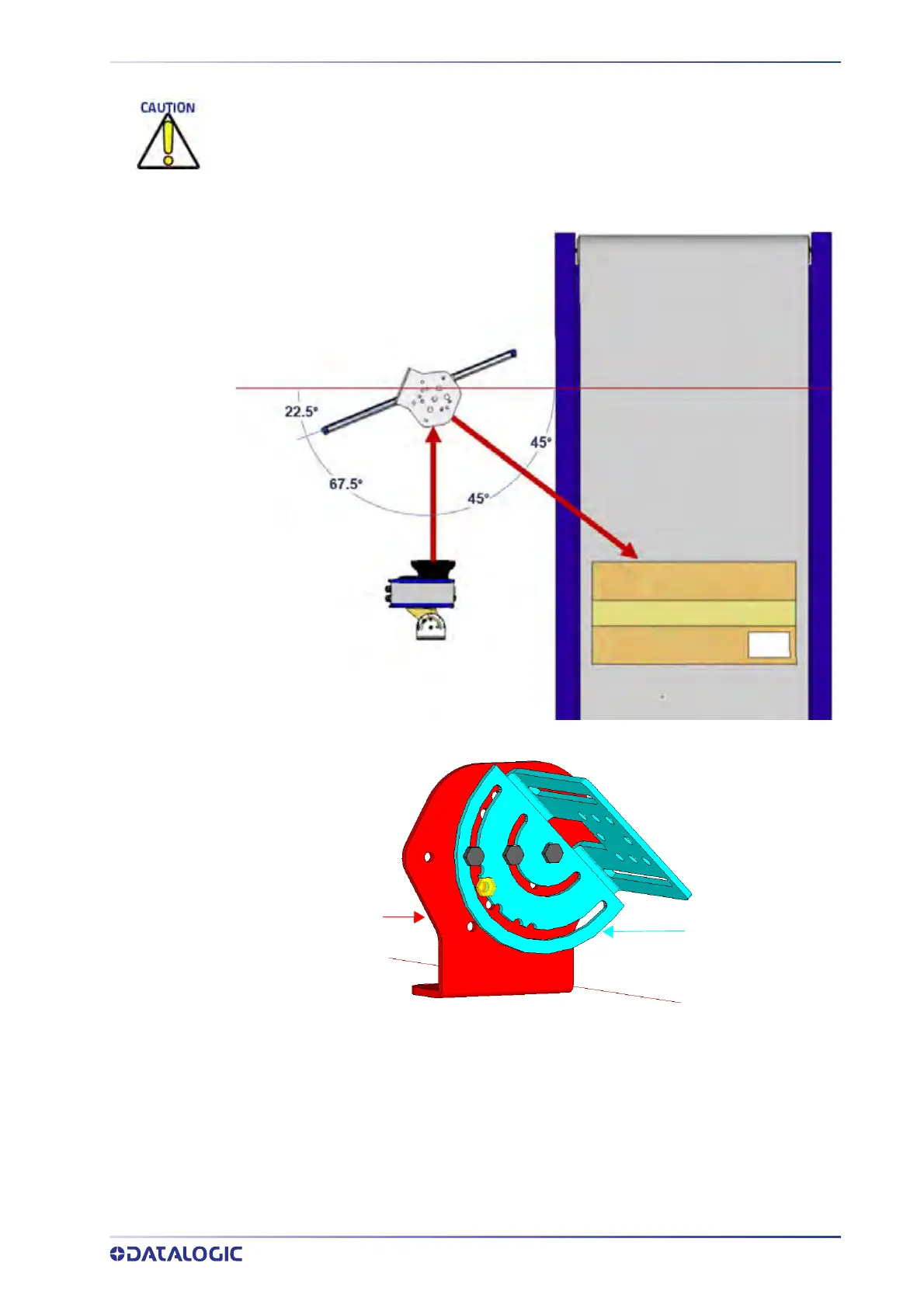

Left Back and Right Back (45 degrees)
From the parallel position, rotate the mirror 22.5 degrees as shown.
Supporting bracket
Rising bracket
Do not mount the reader so far from the mirror that the reading area extends outside of
the mirror surface.
It is critical that the brackets do not stress or flex the mirror, as this will cause focusing
and calibration issues.
