MECHANICAL INSTALLATION
42
AV500/AV900 2D CAMERA

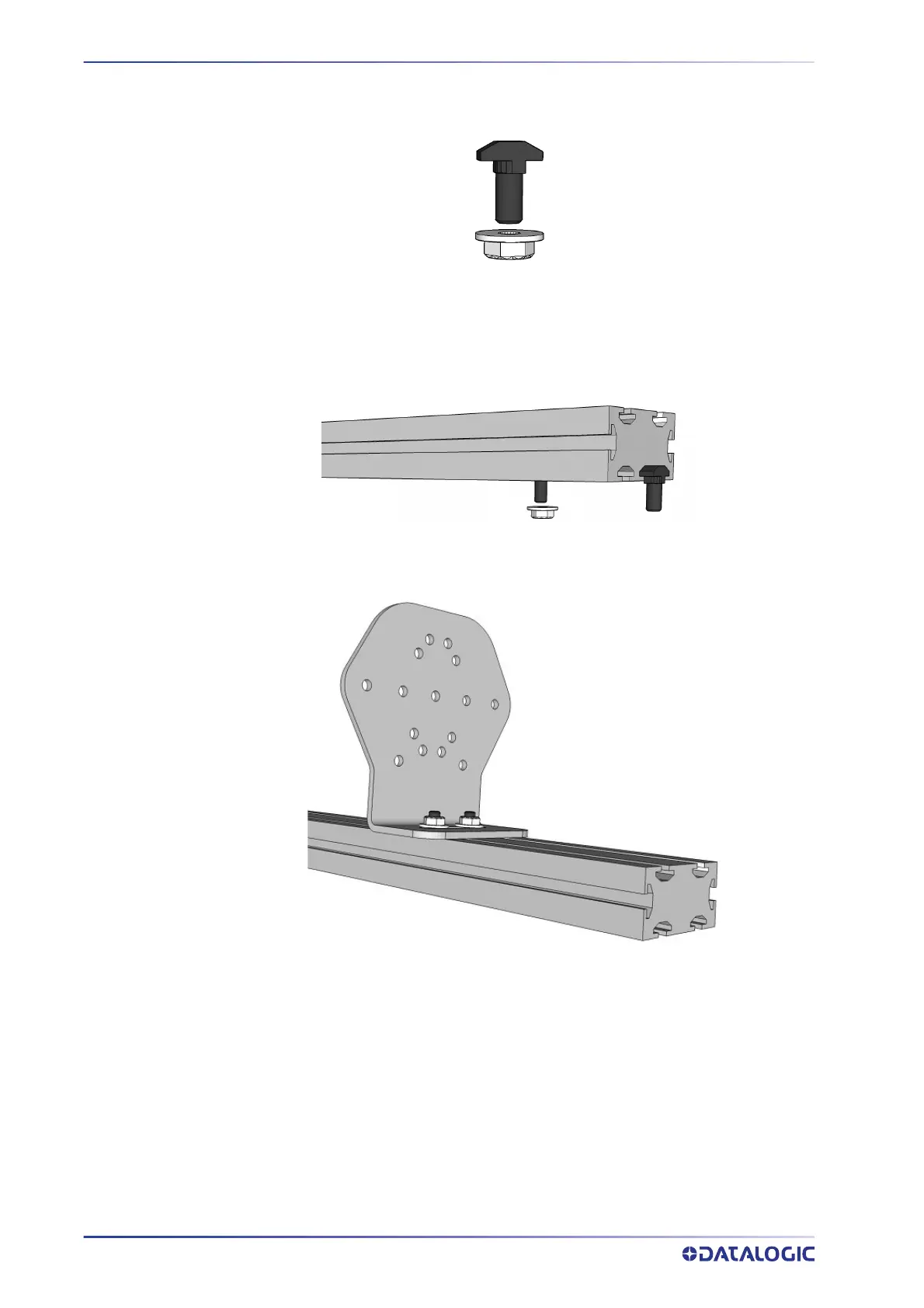

1. Included in your separate mounting kit are T-bolts and nuts. These will be used to
attach the bracket to your mounting structure (typically Bosch or 80/20).
2. Determine where your mirror mounting bracket will go on the structure and slide
the T-bolts into place. (2 or 4). Move the mirror assembly to the correct distance
from the reader according to your application.
3. Once your bracket is in position, tighten nuts on T-bolts.
4. Mount the mirror rising bracket to the supporting bracket with one bolt in the
center position and one bolt in the outer ring.
