Datalogic Magellan 1100i Product Reference Guide

Symbologies
130 Magellan
TM
1100i
Codabar — continued

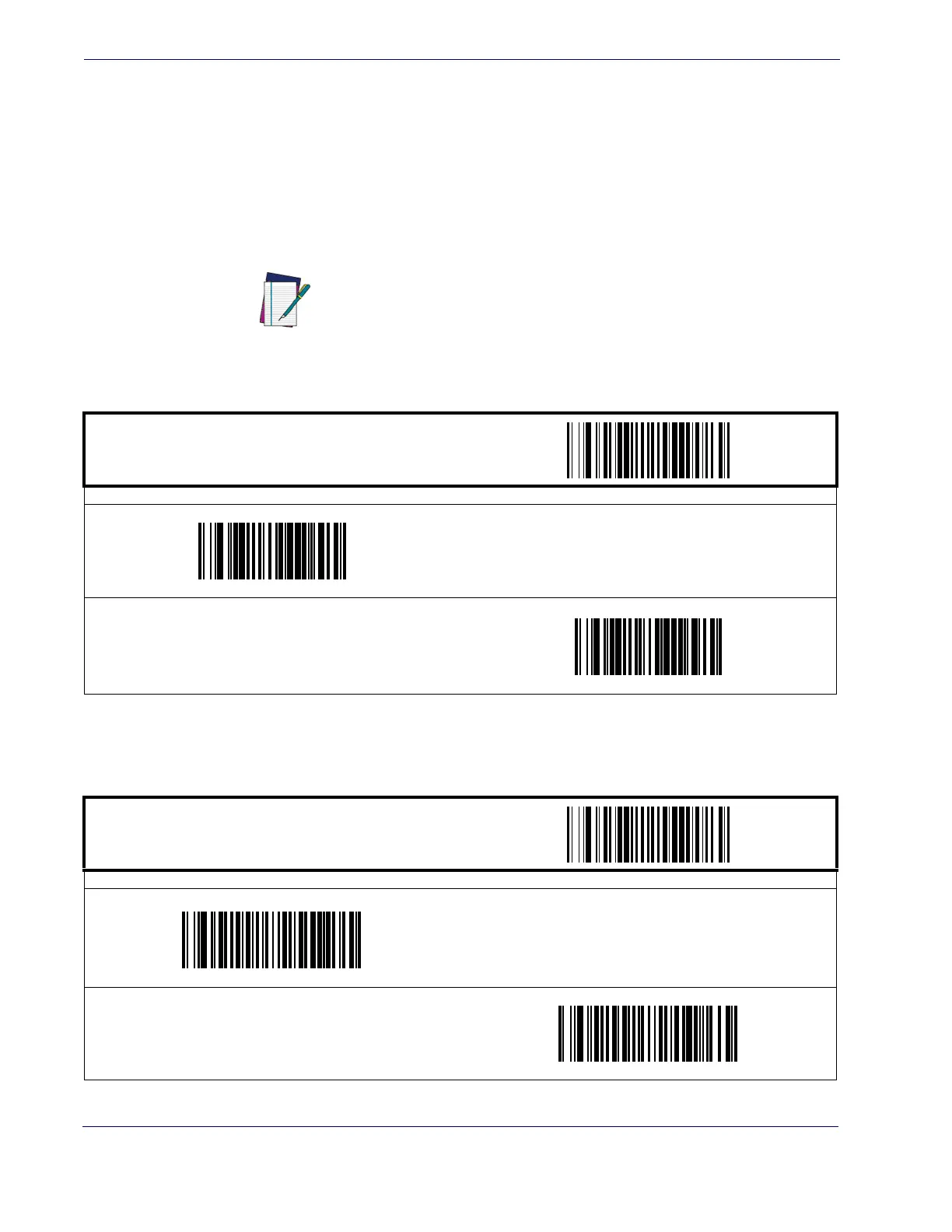

Codabar Length 1, Length 2 Programming Instructions
1. Scan the START barcode.
2. Scan either the Set Length 1 or Set Length 2 barcode.
3. Turn to
Appendix C, Alpha-Numeric Pad and scan the two digits (zero padded) representing
the length in decimal notation.
4. Scan the END barcode.
Quiet Zones
This feature enable/disables the requirement that quiet zones must be present for Codabar bar-
codes.
NOTE
For Codabar barcodes, all start, stop, check and
data characters are included in the length calcu-
lations.
START / END
PROGRAMMING BARCODES
DEFAULT SETTING FOR THIS FEATURE: 03
Set Length 1
Set Length 2
DEFAULT SETTING FOR THIS FEATURE: 50
START / END
PROGRAMMING BARCODES
Don’t require Quiet Zones
DEFAULT
Require Quiet Zones

Datalogic Magellan 1100i Specifications

General

Yaw reading angle	-75 - 75 °
Decoding standards	-1D + GS1 DataBar, -GS1 DataBar Composites, -GS1 DataBar Expanded Stacked, -GS1 DataBar Stacked, -GS1 DataBar Stacked Omnidirectional, -MicroPDF417, -PDF417.
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Standard interfaces	USB, RS-232
Input voltage	4.5 - 14 V
Power consumption	400 mA
Dimensions (WxDxH)	84 x 71 x 94 mm
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	198.5 g
