RS-232 Interface Features — cont.
ACK NAK Error Handling
This item specifies the method the scanner will use to handle errors detected while waiting to
receive the ACK character from the host. Errors include unrecognized host commands and com-
munication errors such as parity or framing errors. Choices are:
00 = Ignore errors detected (recommended setting)
01 = Process error as valid ACK character (risk of lost label data)
02 = Process error as valid NAK character (risk of duplicate label data)

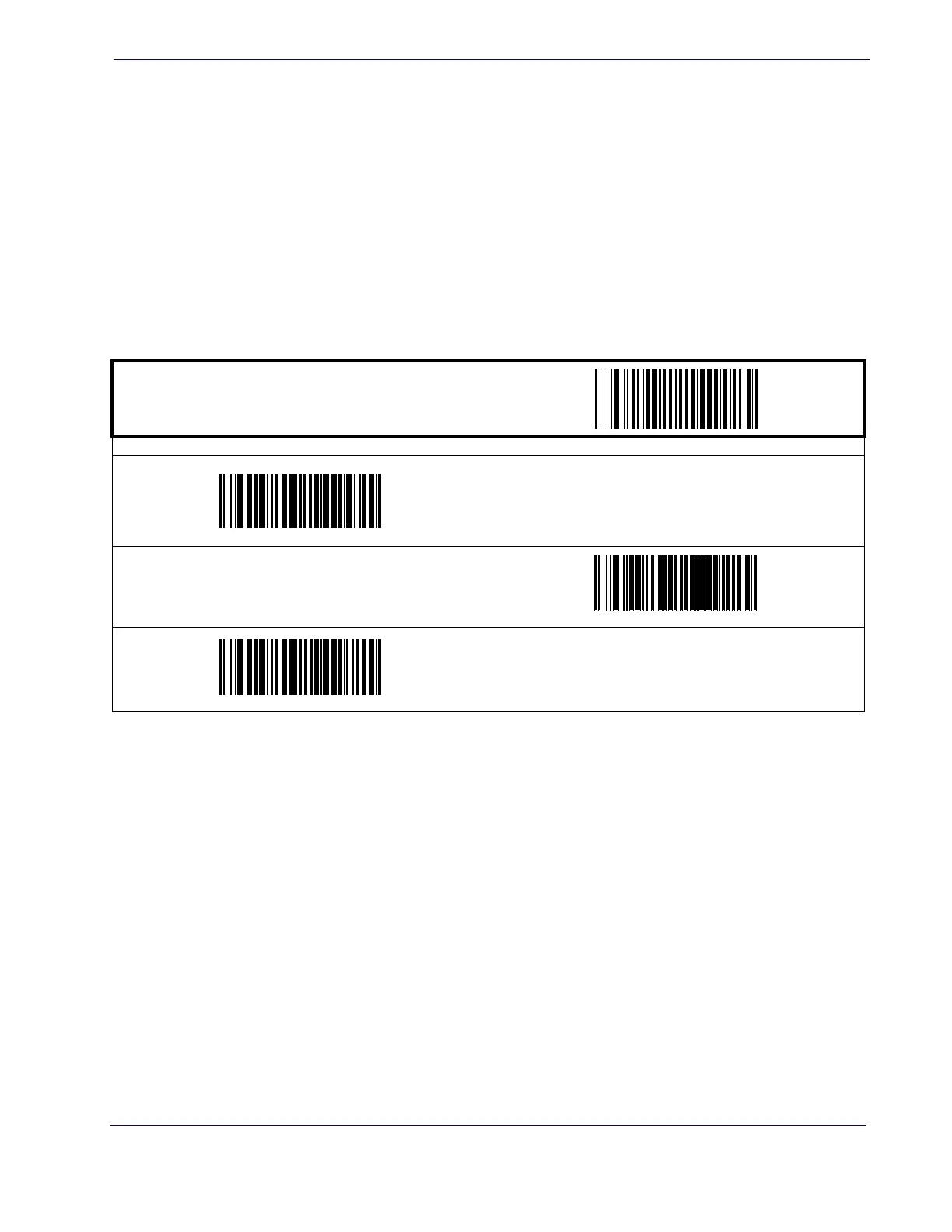

START / END
PROGRAMMING BARCODES
Ignore Errors Detected
DEFAULT
Process error as valid ACK character
Process error as valid NAK character

Datalogic Magellan 1100i Specifications

General

Yaw reading angle	-75 - 75 °
Decoding standards	-1D + GS1 DataBar, -GS1 DataBar Composites, -GS1 DataBar Expanded Stacked, -GS1 DataBar Stacked, -GS1 DataBar Stacked Omnidirectional, -MicroPDF417, -PDF417.
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Standard interfaces	USB, RS-232
Input voltage	4.5 - 14 V
Power consumption	400 mA
Dimensions (WxDxH)	84 x 71 x 94 mm
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	198.5 g
