Product Reference Guide 65
Label ID
A Label ID is used to identify a barcode (symbology) type. See Appendix D, Default Settings, for a
listing for common symbologies. It can be appended previous to or following the transmitted
barcode data depending upon how this option is enabled. This feature provides options for con-
figuring custom Label IDs individually per symbology. If you wish to program the scanner to
always include an industry standard label identifier for ALL symbology types, see the previous
feature,
AIM ID.
The Label ID is a customizable code of up to three ASCII characters (each of which are 00-7F)
followed by a control character (00-01), This control character, when set to zero, does nothing.
When set to one, it appends the symbology’s AIM ID to the Label ID.
To configure a Label ID:
1. Scan the START barcode.
2. Select Label ID position as either BEFORE or AFTER by scanning the appropriate bar-
code.
3. Scan a barcode to select the symbology for which you wish to configure a custom Label
ID.
4. Determine the desired character(s) (you may choose up to three) which will represent the
Label ID for the selected symbology. Next, turn to the
ASCII Chart on the inside back
cover of this manual and find the equivalent hex digits associated with your choice of
Label ID. For example, if you wish to select an equal sign (=) as a Label ID, the chart indi-
cates its associated hex characters as 3D.
5. Turn to
Appendix C, Alpha-Numeric Pad and scan the barcodes representing the hex charac-
ters determined in the previous step. For example, to make an equal sign (=), scan ‘3’ and
‘D’ followed by ‘0’ six times. Since this is a three-character buffer, ‘00’ is scanned for char-
acter two, ‘00’ for character three and ‘00’ for the control character. (‘00’ indicates no
character.)
6. Scan the END barcode to exit programming mode.

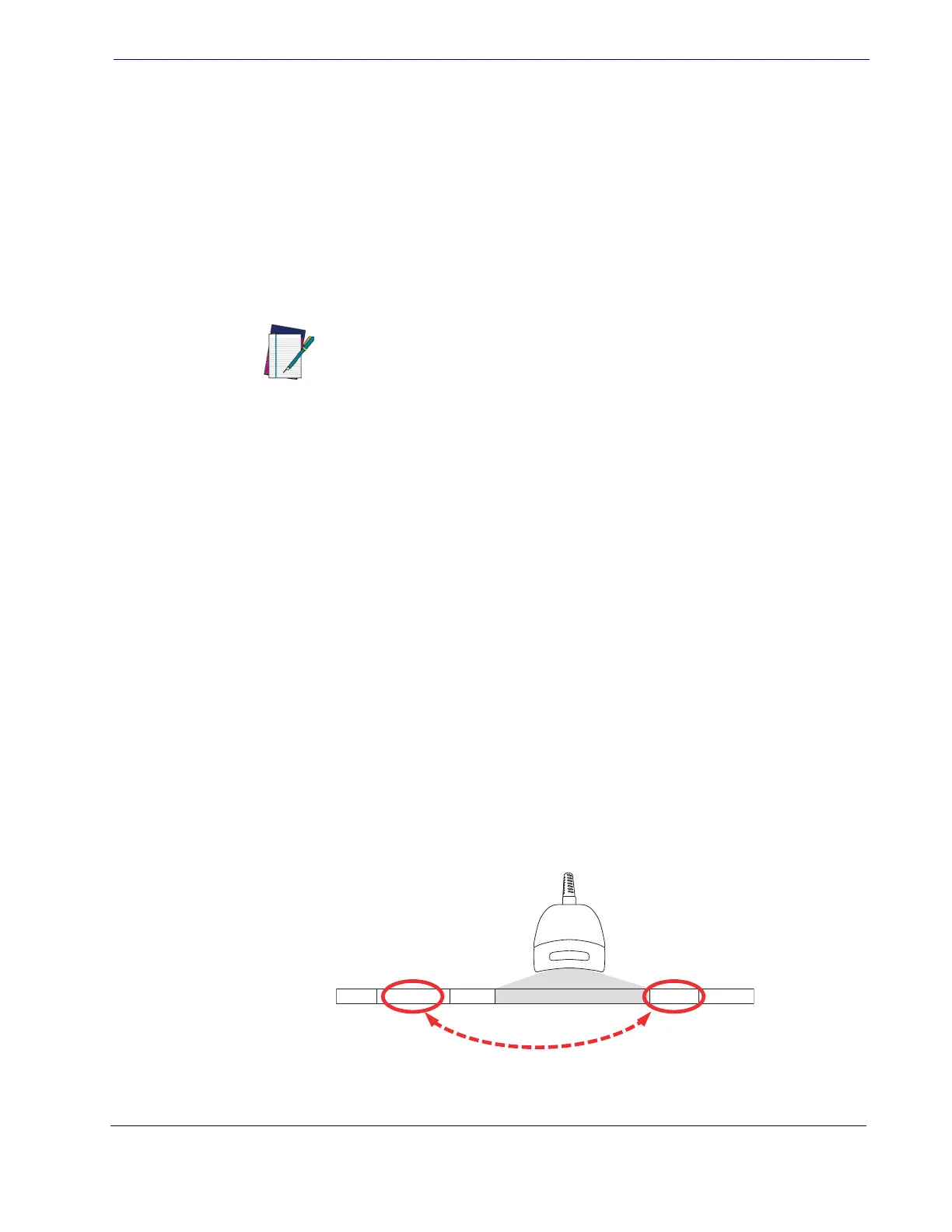

Figure 4-4. Label ID Position Options
NOTE
When the control character is set to 01 for UPC-A and
UPC-E, it expands the label to EAN-13 and thus follows
the EAN-13 Label ID settings.
OR
Prefix SuffixLabel ID Label IDBar Code DataAim ID

Datalogic Magellan 1100i Specifications

General

Yaw reading angle	-75 - 75 °
Decoding standards	-1D + GS1 DataBar, -GS1 DataBar Composites, -GS1 DataBar Expanded Stacked, -GS1 DataBar Stacked, -GS1 DataBar Stacked Omnidirectional, -MicroPDF417, -PDF417.
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Standard interfaces	USB, RS-232
Input voltage	4.5 - 14 V
Power consumption	400 mA
Dimensions (WxDxH)	84 x 71 x 94 mm
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	198.5 g
