Datalogic Magellan 1100i Product Reference Guide

Image Capture
Product Reference Guide 25
Image Brightness
This feature sets the image brightness value. Follow these instructions to configure this feature:
1. Scan the START barcode.
2. Scan the Set Image Brightness barcode.
3. Turn to
Alpha-Numeric Pad and scan the two digits (zero-padded) representing the desired
brightness in decimal notation. The configurable range is 01-0x0A by increments of 01.
4. Scan the END barcode.
Image Contrast
This feature sets the image contrast value. Follow these instructions to configure this feature:
1. Scan the START barcode.
2. Scan the Set Image Contrast barcode.
3. Turn to
Alpha-Numeric Pad and scan the two digits (zero-padded) representing the desired
contrast in decimal notation. The configurable range is 01-0x0A by increments of 01.
4. Scan the END barcode.

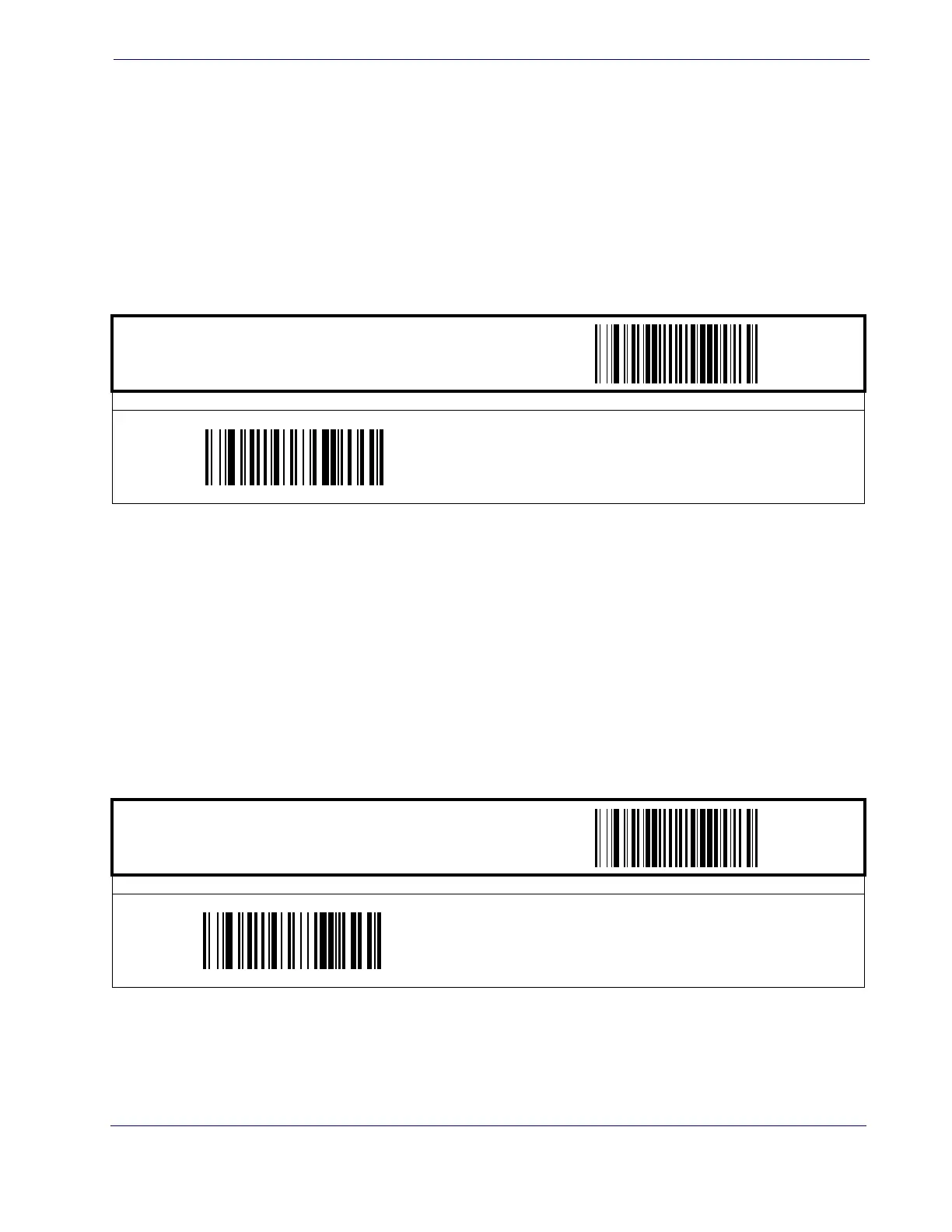

START / END
PROGRAMMING BARCODES
Set Image Brightness
DEFAULT SETTING FOR THIS FEATURE: 09
START / END
PROGRAMMING BARCODES
Set Image Contrast
DEFAULT SETTING FOR THIS FEATURE: 09

Datalogic Magellan 1100i Specifications

General

Yaw reading angle	-75 - 75 °
Decoding standards	-1D + GS1 DataBar, -GS1 DataBar Composites, -GS1 DataBar Expanded Stacked, -GS1 DataBar Stacked, -GS1 DataBar Stacked Omnidirectional, -MicroPDF417, -PDF417.
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Standard interfaces	USB, RS-232
Input voltage	4.5 - 14 V
Power consumption	400 mA
Dimensions (WxDxH)	84 x 71 x 94 mm
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	198.5 g
