Datalogic Magellan 1100i Product Reference Guide

2D Symbologies
154 Magellan
TM
1100i
PDF 417 — continued

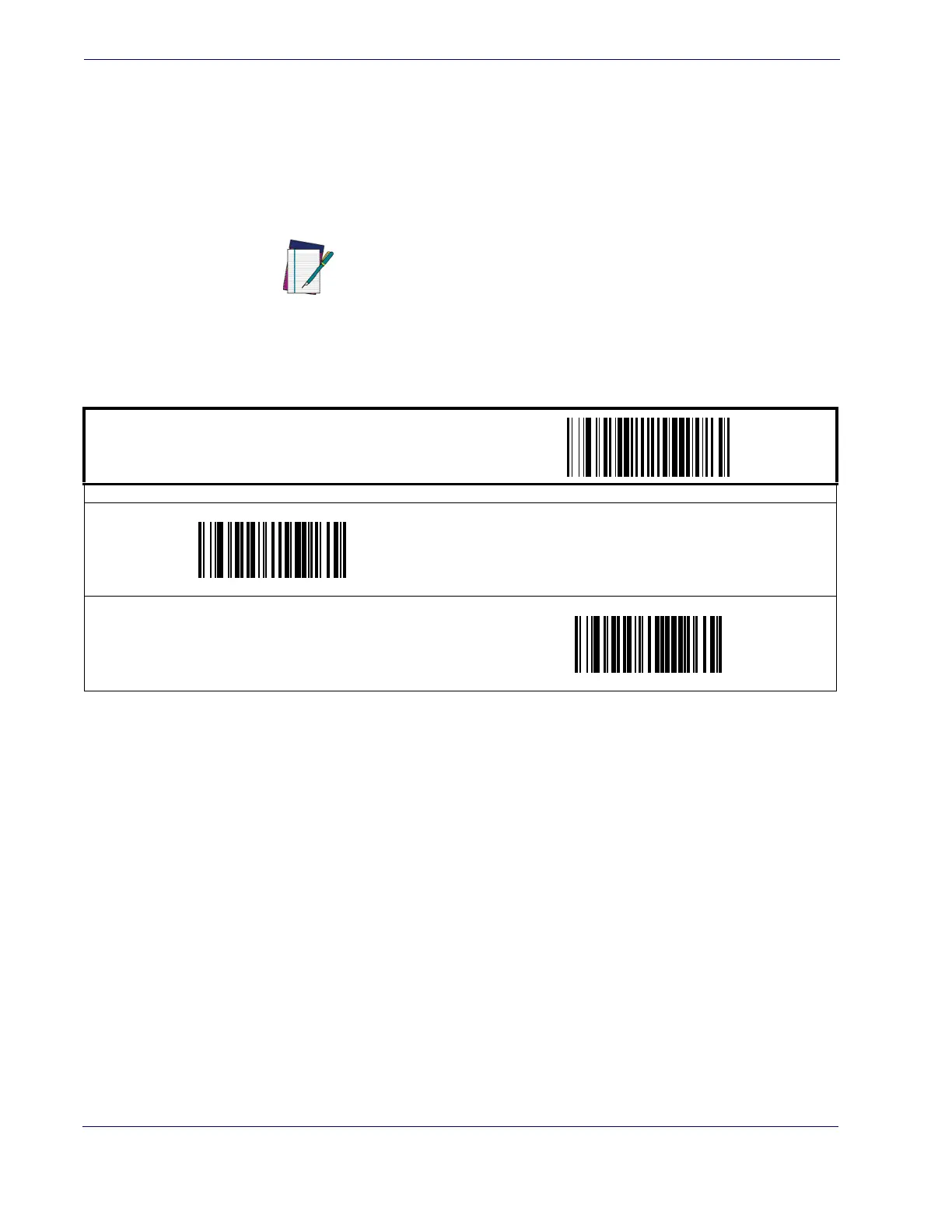

PDF 417 Length 1, Length 2 Programming Instructions
1. Scan the START barcode.
2. Scan either the Set Length 1 or Set Length 2 barcode.
3. Turn to
Alpha-Numeric Pad and scan the four digits (zero-padded) representing the length.
Scan the END barcode.
NOTE
For PDF 417 barcodes, only the data characters are included in the
length calculations.
Any value set higher than 2710 will be considered to be 2710.
START / END
PROGRAMMING BARCODES
DEFAULT SETTING FOR THIS FEATURE: 0001
Set Length 1
Set Length 2
DEFAULT SETTING FOR THIS FEATURE: 2710

Datalogic Magellan 1100i Specifications

General

Yaw reading angle	-75 - 75 °
Decoding standards	-1D + GS1 DataBar, -GS1 DataBar Composites, -GS1 DataBar Expanded Stacked, -GS1 DataBar Stacked, -GS1 DataBar Stacked Omnidirectional, -MicroPDF417, -PDF417.
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Standard interfaces	USB, RS-232
Input voltage	4.5 - 14 V
Power consumption	400 mA
Dimensions (WxDxH)	84 x 71 x 94 mm
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	198.5 g
