Datalogic Magellan 1100i Product Reference Guide

General Features
10 Magellan
TM
1100i
Label Gone Timeout
This feature sets the time after the last label segment is seen before the scanner prepares for a
new label.
Productivity Index Reporting (PIR)
When PIR is enabled, label quality data is appended to decoded data before being presented to
the POS. The PIR feature allows the scanner to provide information to an external computer,
indicating how easy the label was to read.

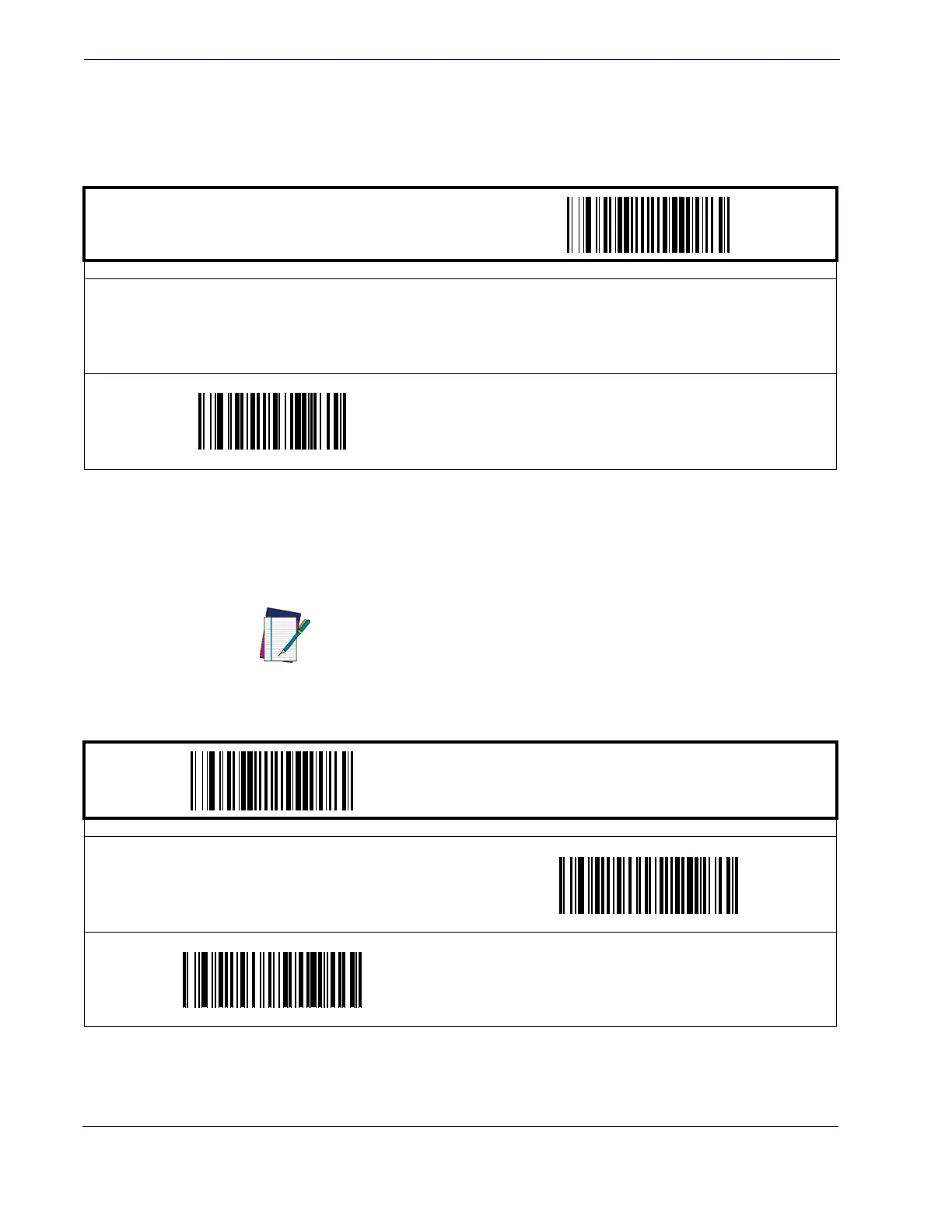

START / END
PROGRAMMING BARCODES
Sets the label gone timeout duration using hex values from 000 to 255 in increments of ten milliseconds (10ms or 0.01 seconds). To
configure this feature, scan the “START/END” barcode above to place the unit in Programming Mode, then the “Set Linear Label
Gone Timeout,” followed by the three digits (zero padded) from the Alphanumeric table in
Appendix C, Alpha-Numeric Pad repre-
senting the desired time value. Exit programming mode by scanning the “START/END” barcode again.
DEFAULT SETTING FOR THIS FEATURE: 320 milliseconds (032)
Set Linear Label Gone Timeout
NOTE
This value-added feature is a factory-programmed
option. Contact your dealer for information about
upgrading your system to include this advanced
capability.
START / END
PROGRAMMING BARCODES
Disable
DEFAULT
Enable

Datalogic Magellan 1100i Specifications

General

Yaw reading angle	-75 - 75 °
Decoding standards	-1D + GS1 DataBar, -GS1 DataBar Composites, -GS1 DataBar Expanded Stacked, -GS1 DataBar Stacked, -GS1 DataBar Stacked Omnidirectional, -MicroPDF417, -PDF417.
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Standard interfaces	USB, RS-232
Input voltage	4.5 - 14 V
Power consumption	400 mA
Dimensions (WxDxH)	84 x 71 x 94 mm
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	198.5 g
