Datalogic Magellan 1100i

Product Reference Guide 177
Chapter B
Cable Pinouts
Standard Cable Pinouts (Primary Interface Cables)
RS-232
IBM Port 5B/9B/17
1
2CTS
3
4RTS
5RXD
6TXD
7
8 VCC IN
9GND
10
1
2
3
4DATA -
5
6DATA +
7
8VCC_IN
9GND
10

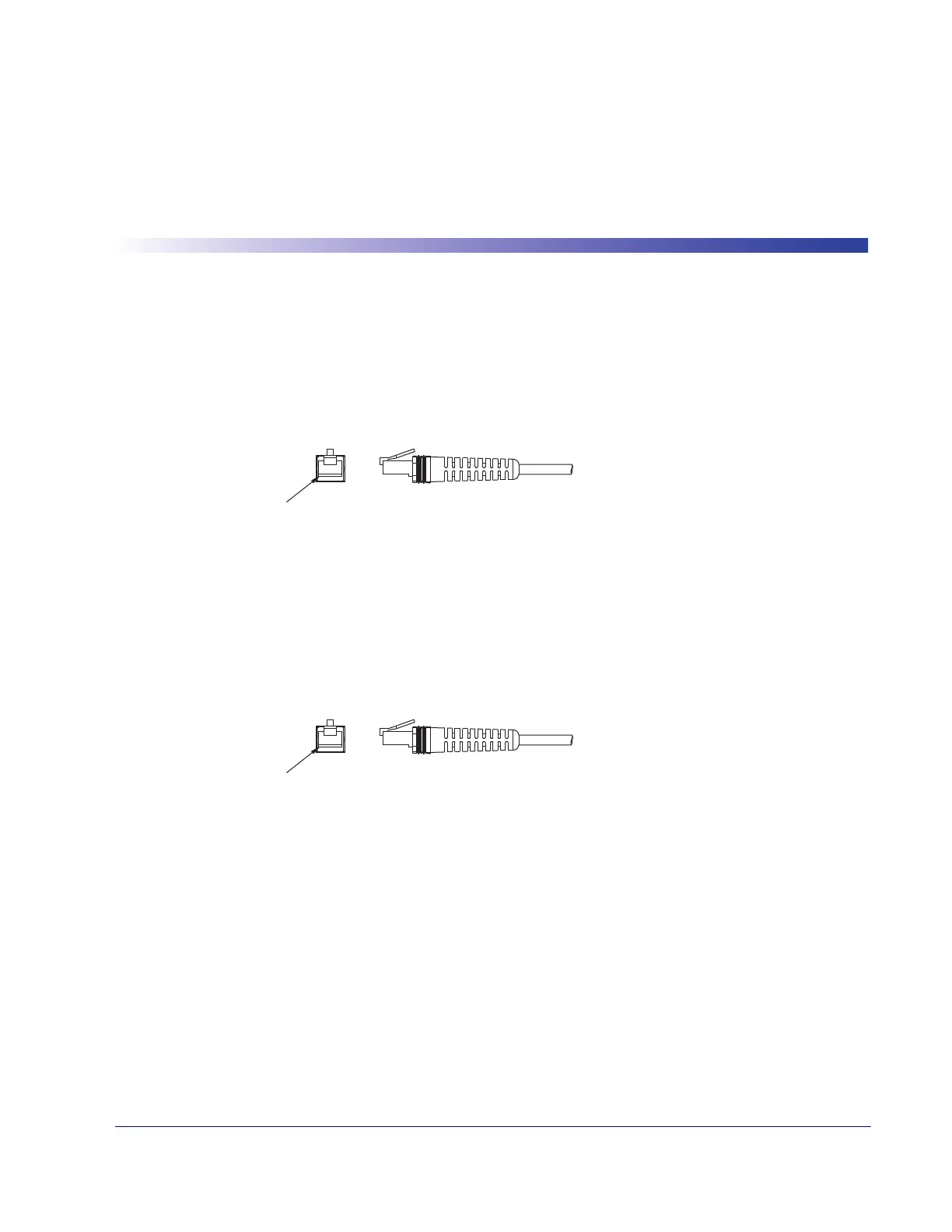

Pin 1
10 Position RJ
(Scanner End)
Pin 1
10 Position RJ
(Scanner End)
