Interface Features
Product Reference Guide 39
RS-232 Interface Features — cont.
Hardware Flow Control
Disable Hardware Control— The scanner transmits to the host regardless of any activity on
the CTS line.
Enable CTS Flow Control— The CTS signal controls transmission of data to the host.
Enable CTS Scan Control— The CTS line must be active for the scanner to read and trans-
mit data. While the CTS line is inactive, the scanner remains in a host-disabled state; following
a successful label transmission, the CTS signal must transition to inactive and then to active to
enable scanning for the next label.

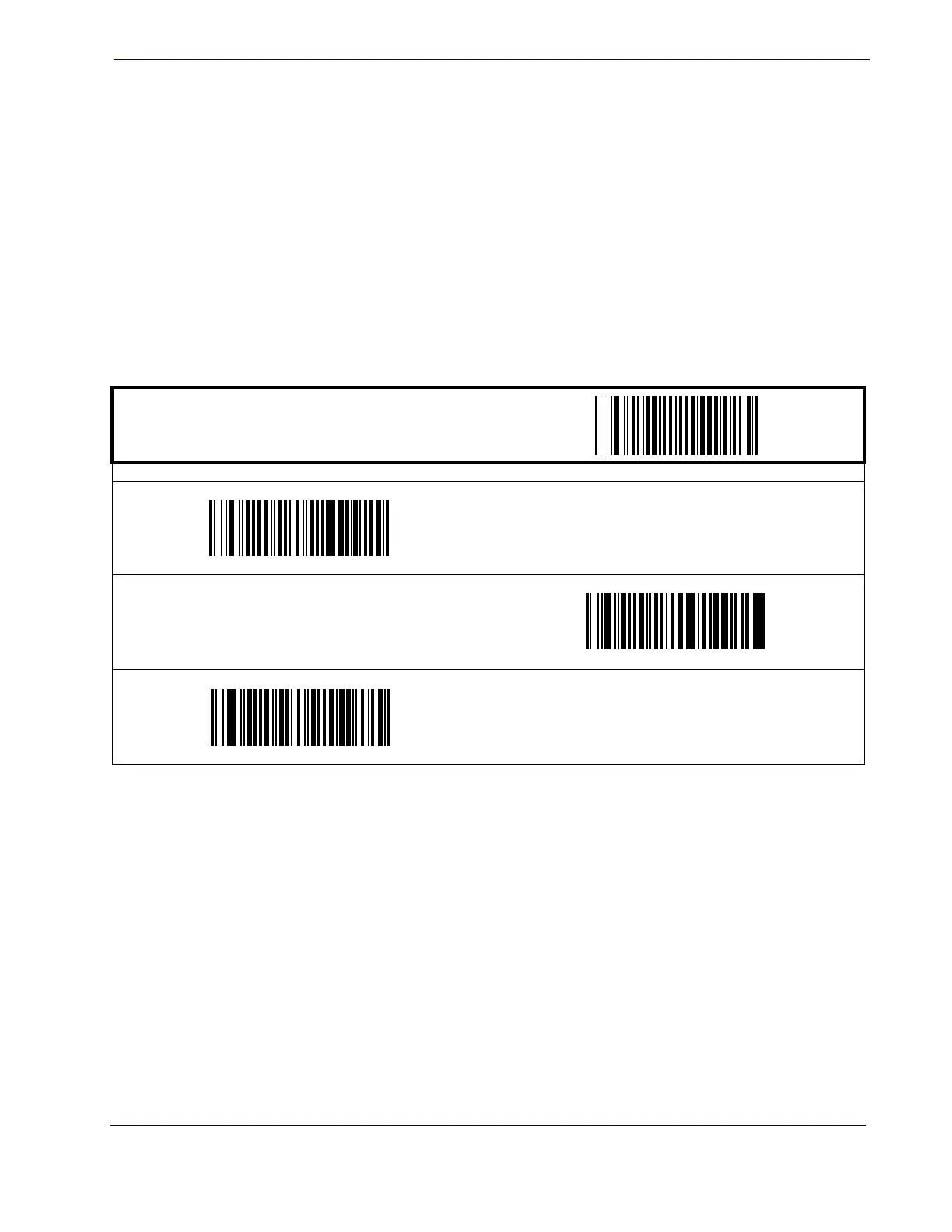

START / END
PROGRAMMING BARCODES
Disable Hardware Control
DEFAULT
Enable CTS Flow Control
Enable CTS Scan Control

Datalogic Magellan 1100i Specifications

General

Yaw reading angle	-75 - 75 °
Decoding standards	-1D + GS1 DataBar, -GS1 DataBar Composites, -GS1 DataBar Expanded Stacked, -GS1 DataBar Stacked, -GS1 DataBar Stacked Omnidirectional, -MicroPDF417, -PDF417.
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Standard interfaces	USB, RS-232
Input voltage	4.5 - 14 V
Power consumption	400 mA
Dimensions (WxDxH)	84 x 71 x 94 mm
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	198.5 g
