Datalogic Magellan 1100i

Cable Pinouts
178 Magellan
TM
1100i
USB-OEM
USB, USB Keyboard & USB COM
Keyboard Wedge
1
2
3
4D -
5
6D +
7
8VIN
9GND
10
1
2
3
4D -
5
6D +
7
8 VBUS_VIN
9GND
10
1
2 KB_DATA
3AT_CLK
4 KB_CLK
5
6AT_DATA
7
8VCC_IN
9GND
10

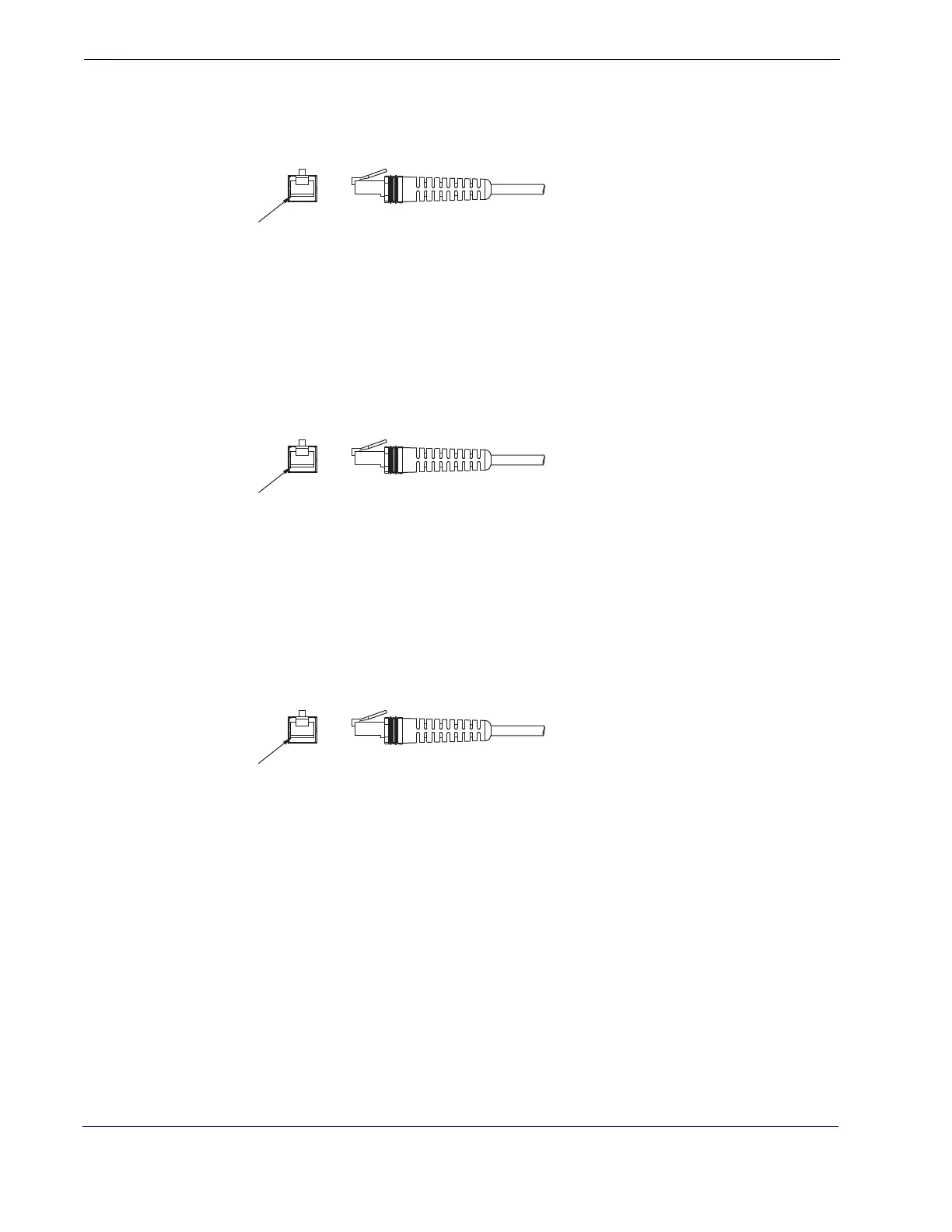

Pin 1
10 Position RJ
(Scanner End)
Pin 1
10 Position RJ
(Scanner End)
Pin 1
10 Position RJ
(Scanner End)
