Datalogic MAGELLAN 8100 User Manual

Product Reference Guide 2-15

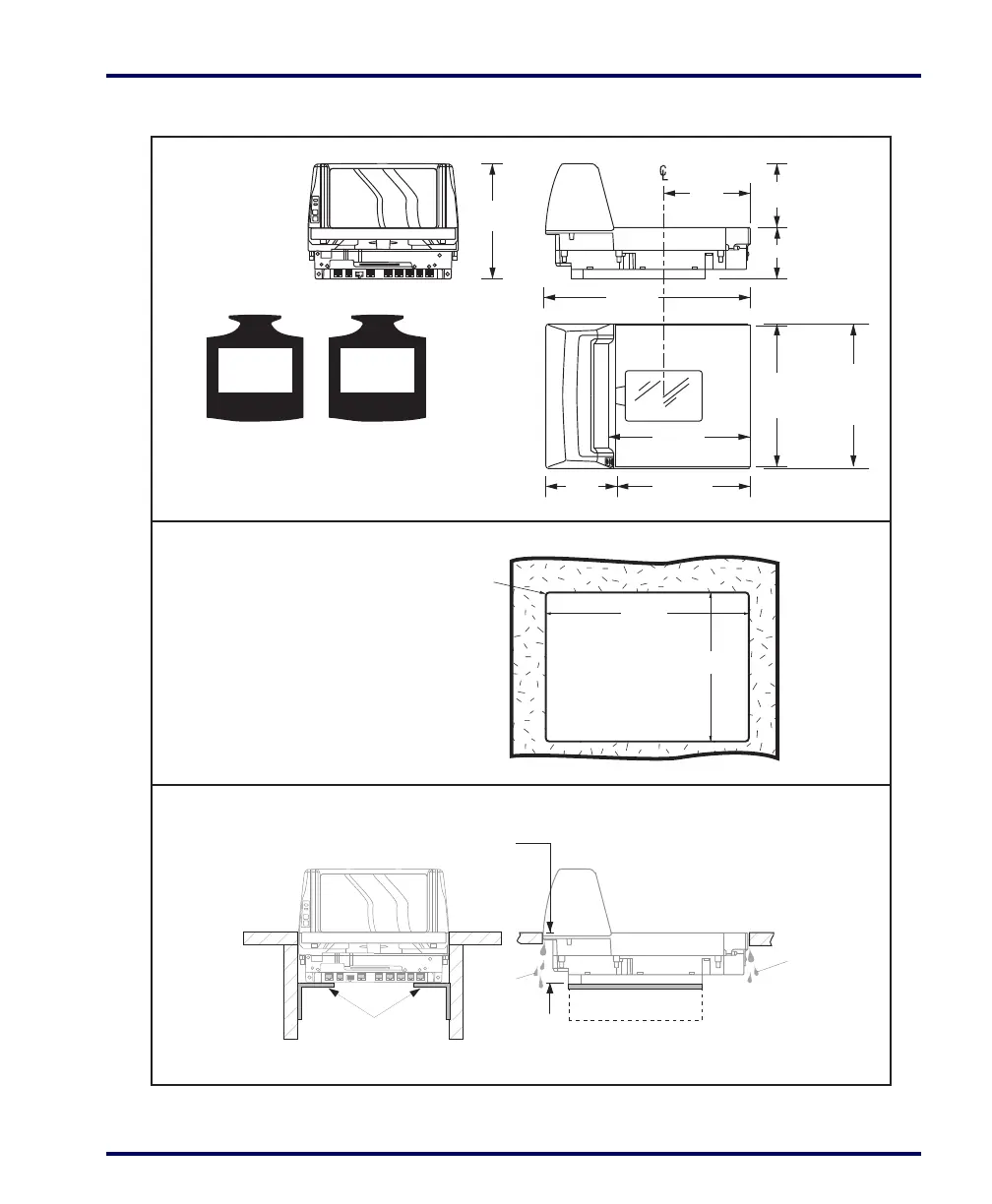

Figure 2-8. Model 8101, 8201, 8102 and 8202 (Medium Scanner or
Scanner/Scale) Cutout Dimensions
Models 8101/8201
& Models 8102/8202
Dimensions
Models 8101/8201
& Models 8102/8202
Cutout
11.625"
(29.53cm)
Max. Radius = 0.25"
(0.635cm) 4x
18.0 lb.
(8.16kg)
Scanner/Scale
Weight
13.2 lb.
(6.00kg)
Scanner
Weight
4.125" ± .062 (10.5cm)
11.1"
(28.19cm)
PLATTER
11.5"
(29.21cm)
SCANNER/
SCALE
5.1"
(12.95cm)
10.4"
(26.42cm)
10.65"
(27.1cm)
PLATTER
15.7"
(39.88cm)
9.1"
(23.1cm)
5.3"
(13.46cm)
Window
6.2"
(15.75cm)
15.825"
(40.195cm)
Models 8101/8201
& Models 8102/8202
Supports
4.125" ± .062 (10.5cm)
Liquid
Drainage
Liquid
Drainage
Support Rails
