Product Reference Guide 2-23
Do not plug the AC power cord into the outlet at this time. It is a good
practice to always connect the power cable to the scanner first before plug-
ging it into the AC receptacle. The procedures titled, Set-Up, provided
later in this section will instruct you to connect the power cord at that

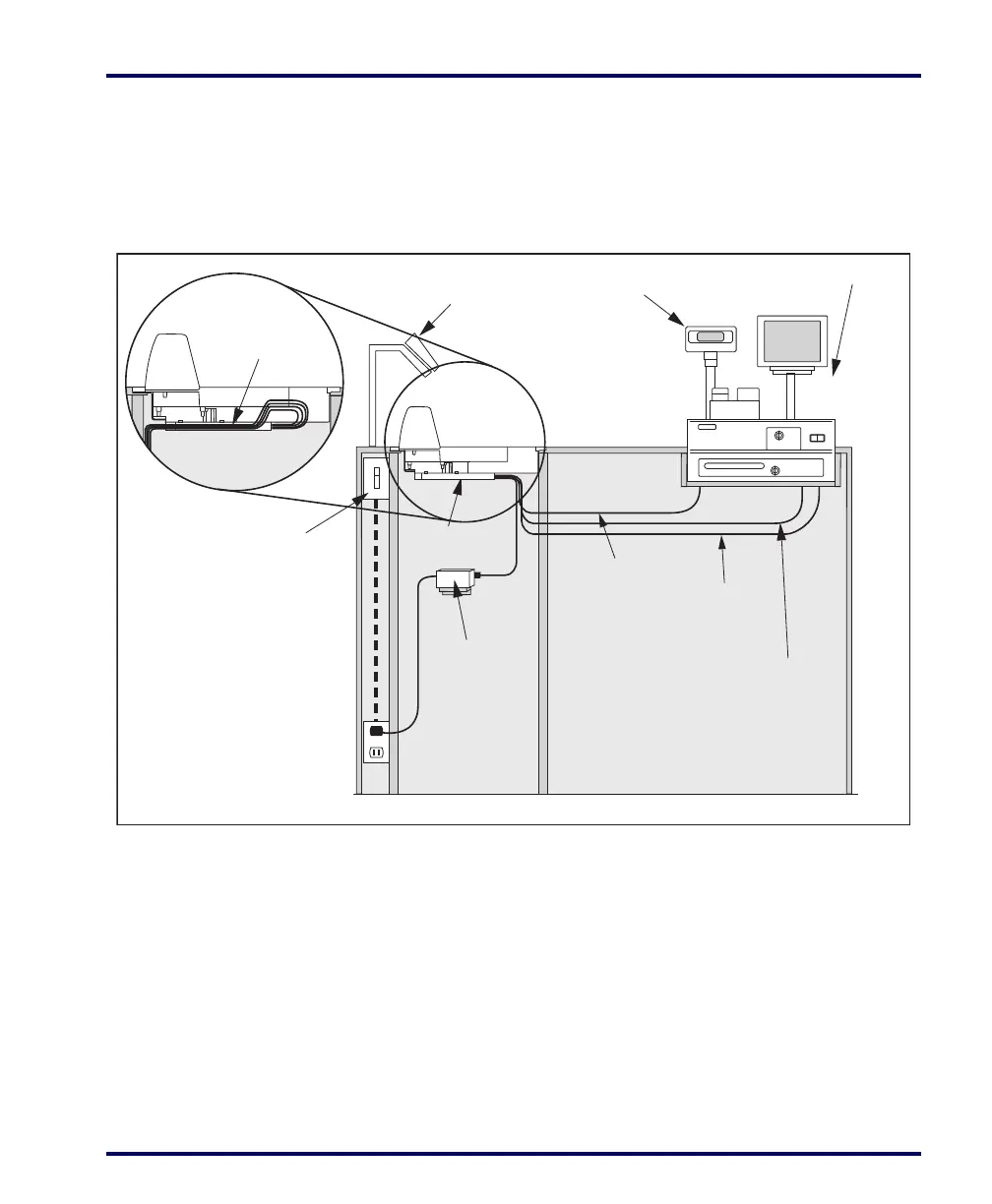

time. Figure 2-11 illustrates the basic cable routing scheme.
Figure 2-11. Cable Routing
Scanner
AC Power
Switch
(recommended)
AC/DC
Power
Supply
Scanner
Interface
Cable
Scale
Interface
Cable
(Scanner/Scale)
Remote Scale
Display Cable
(optional
Scanner/Scale)
POS Terminal, Printer &
Cash Drawer
Remote
Display
Keyboard
Alternate
Cable
Routing
To Next Page
