3-12 Magellan
®
8100/8100Ω and 8200/8200Ω Scanner
2. The vertical bezel cover is held in place by tabs along its top and
side edges. To remove it, carefully lift up on the top edge as
shown in Figure 3-4a, tilt it out and snap it off.
3. Lift out the vertical window. Carefully dispose of any damaged
glass.

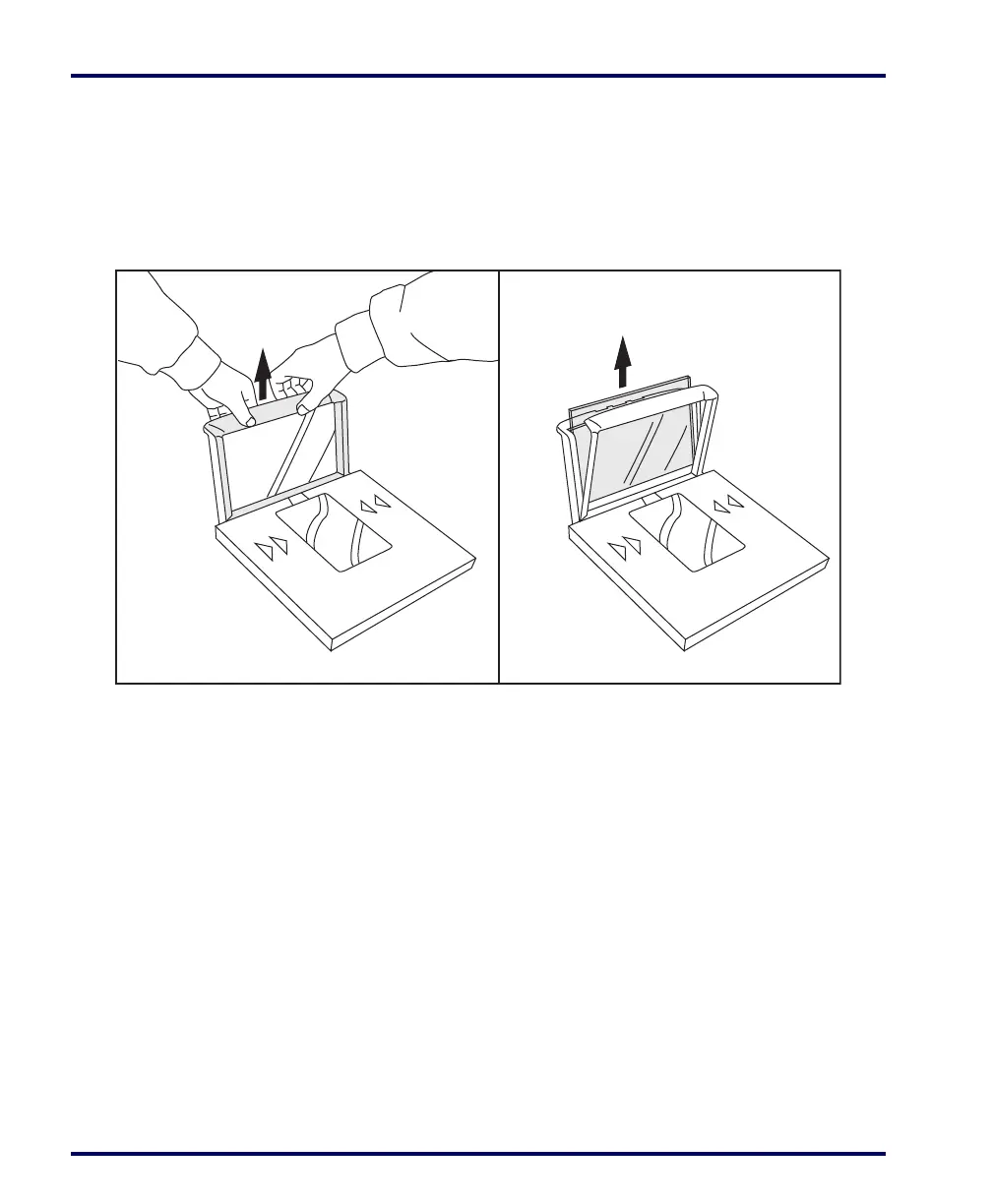

Figure 3-4. Vertical Scan Window Removal/Replacement
4. Fully seat the new vertical scan window into the window channel.
5. Align the vertical bezel cover with the assembly. Press firmly along
the top and sides to engage the tabs and secure it in place.
6. Clean both sides of the new vertical scan window using a paper
towel or lint free cleaning tissues dampened with a mild, water-
based glass cleaner. DO NOT use abrasive cleaners or pads.
7. Re-install the platter. Vertical scan window replacement is now
complete.
