MATRIX 210N™ REFERENCE MANUAL
7.2.1 Auto Calibration
DL.CODE provides the Image Auto-Setup tool to maximize the reading performance by
tuning the acquisition parameters (photometry) automatically. By selecting the Image Auto-
Setup tool from the Image Setup step, the following window appears:

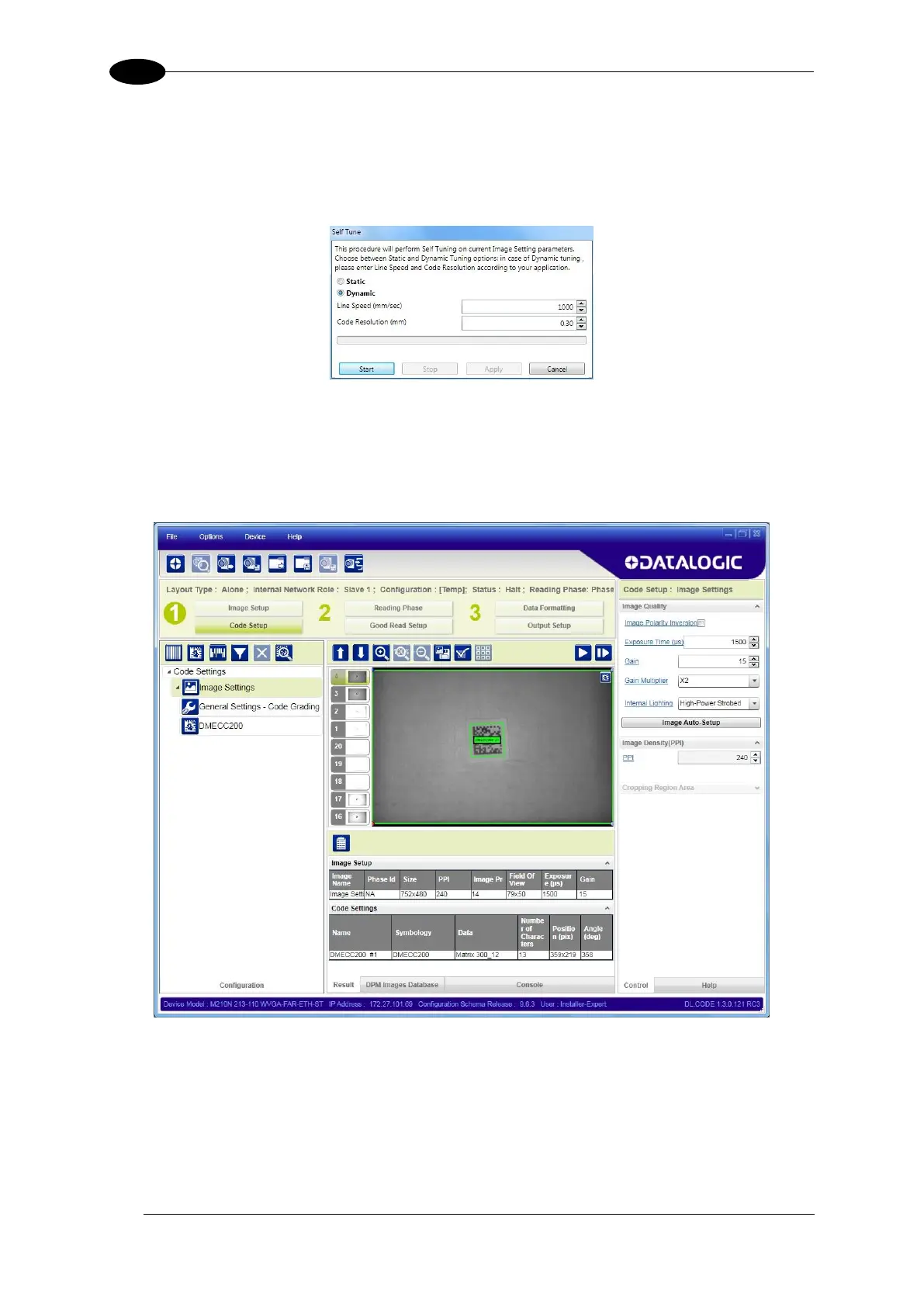

Figure 76 – Image Auto-Setup
Select the Static or Dynamic Self-Tuning option; Start Autolearn and Apply to the Image
Setup. The Image Setup window works interactively so that you can see the results of the
parameter setting changes as well as the decoding results (Results panel). When switching
to the Code Setup step you can also see the decoding results displayed on the image.
Figure 77 – Decoding Results OK
