RAPID CONFIGURATION
STEP 5A – ETHERNET DEVICE DISCOVERY
The following configuration procedure assumes a laptop computer, running DL.CODE, is
connected to a factory default reader through the Ethernet port. See Step 1 – Connect the
System.
The User Interface opens and displays a list of all the devices belonging to the Local Area
Network. DL.CODE has a discovery feature to accomplish this task.

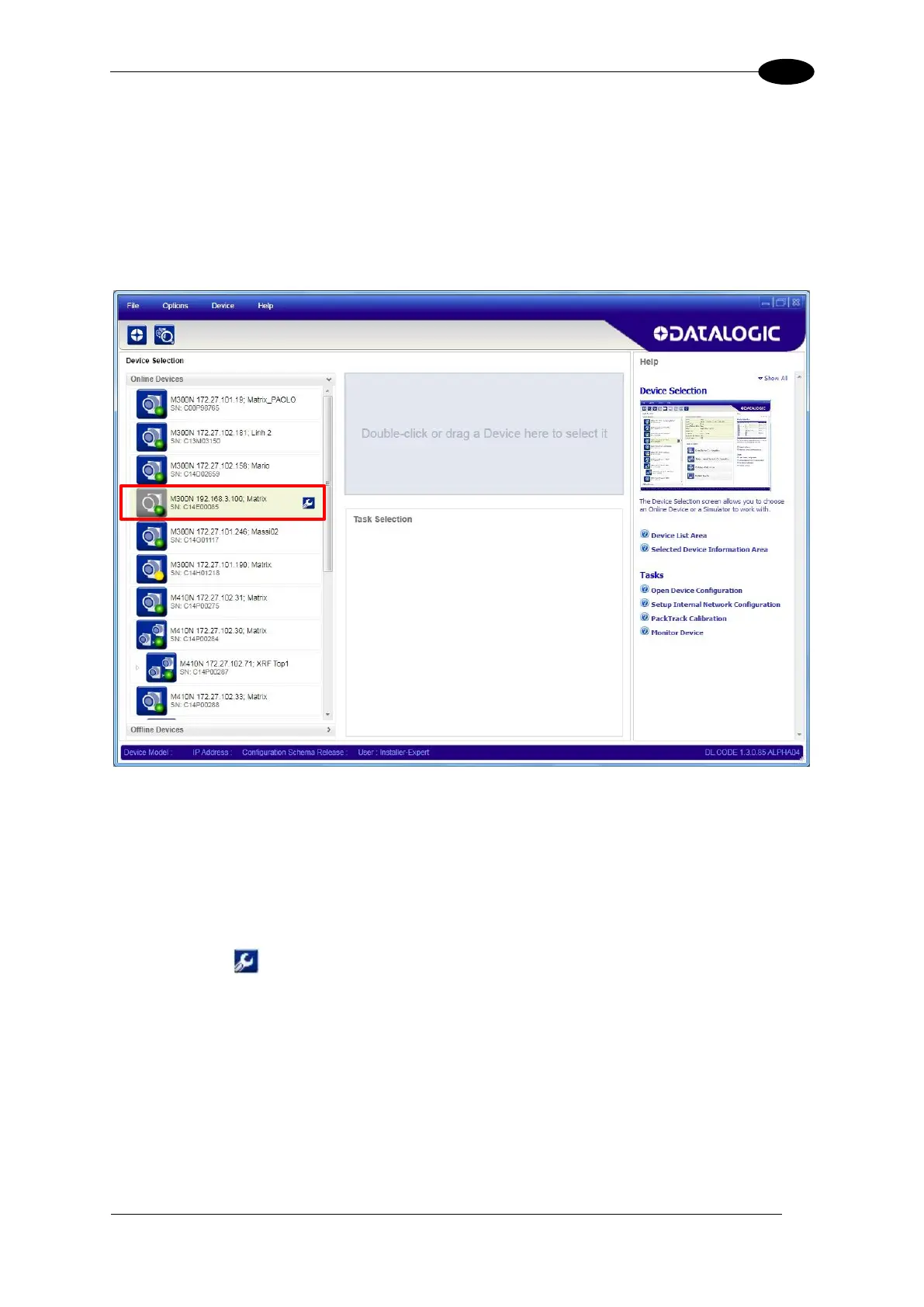

Figure 14 – Device Discovery
The discovery feature will also show devices not belonging to the LAN and display them in
grey (see Figure 14).
3. First the device must be added to the LAN by aligning its IP Address to the network. The
network administrator should provide valid LAN address(es).
4. Find your device in the list by matching its serial number (SN) then click on the device
wrench icon to open the Device Environment Configuration window.
5. Change the Ethernet Settings (IP Address, Subnet Mask, Gateway Address etc.)
according to the network requirements.
