Datalogic Matrix 210N - Image Cropping

MATRIX 210N™ REFERENCE MANUAL
102
7
7.2.4 Image Cropping

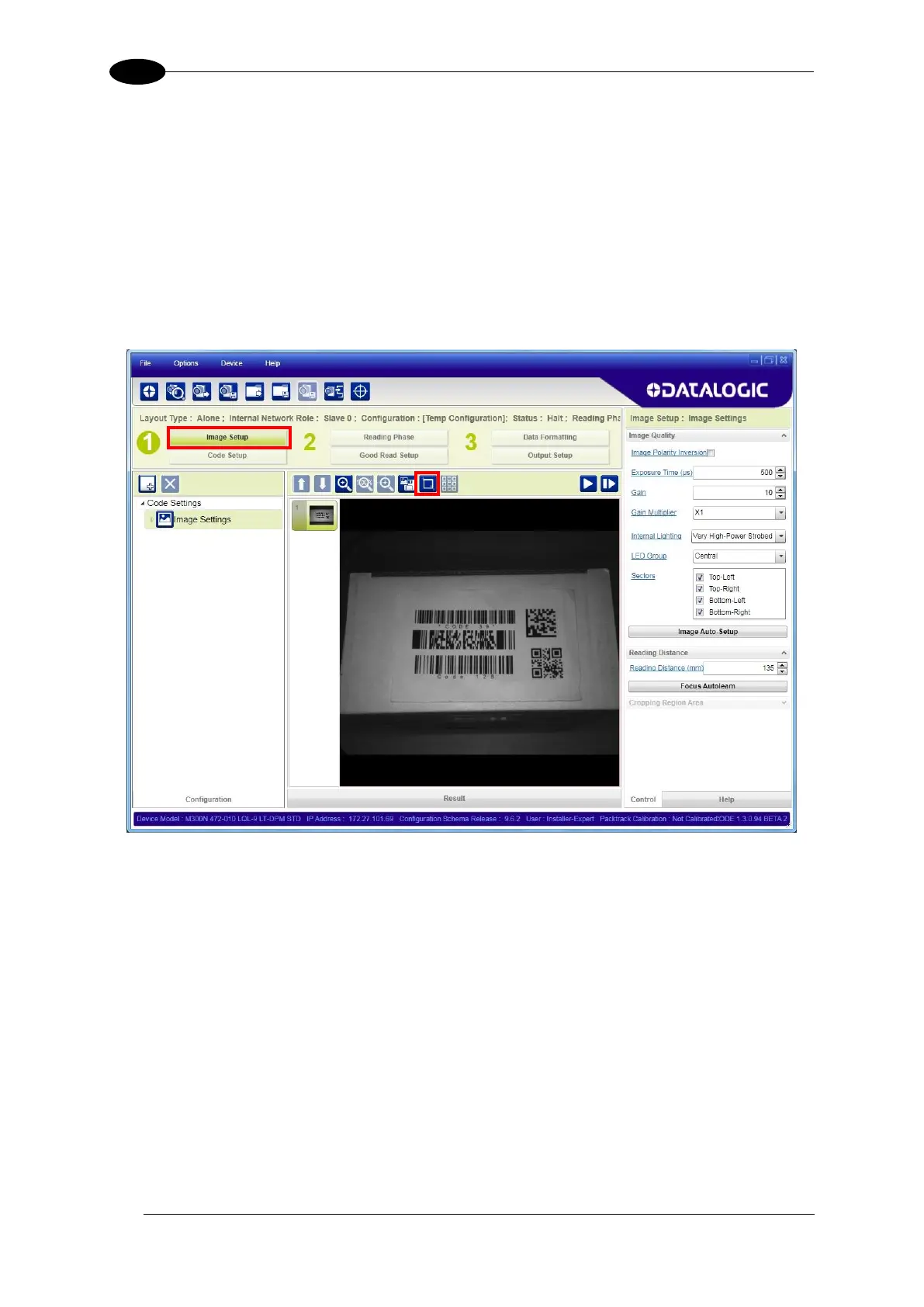

In some applications, the Image Cropping feature in DL.CODE can help to increase decoding
and result performance. Image cropping is performed from the Image Setup tab by clicking
on the Add Cropping Region icon as shown below.
In Matrix 210N the frame rate is dependent on the number of rows and columns in the
defined window. Image cropping allows reducing the Image processing area from the full
FoV to a smaller area where codes are present. By excluding portions of the FoV, processing
time is reduced.
