Datalogic Matrix 210N - AUXILIARY RS232 INTERFACE

CBX ELECTRICAL CONNECTIONS
67
4

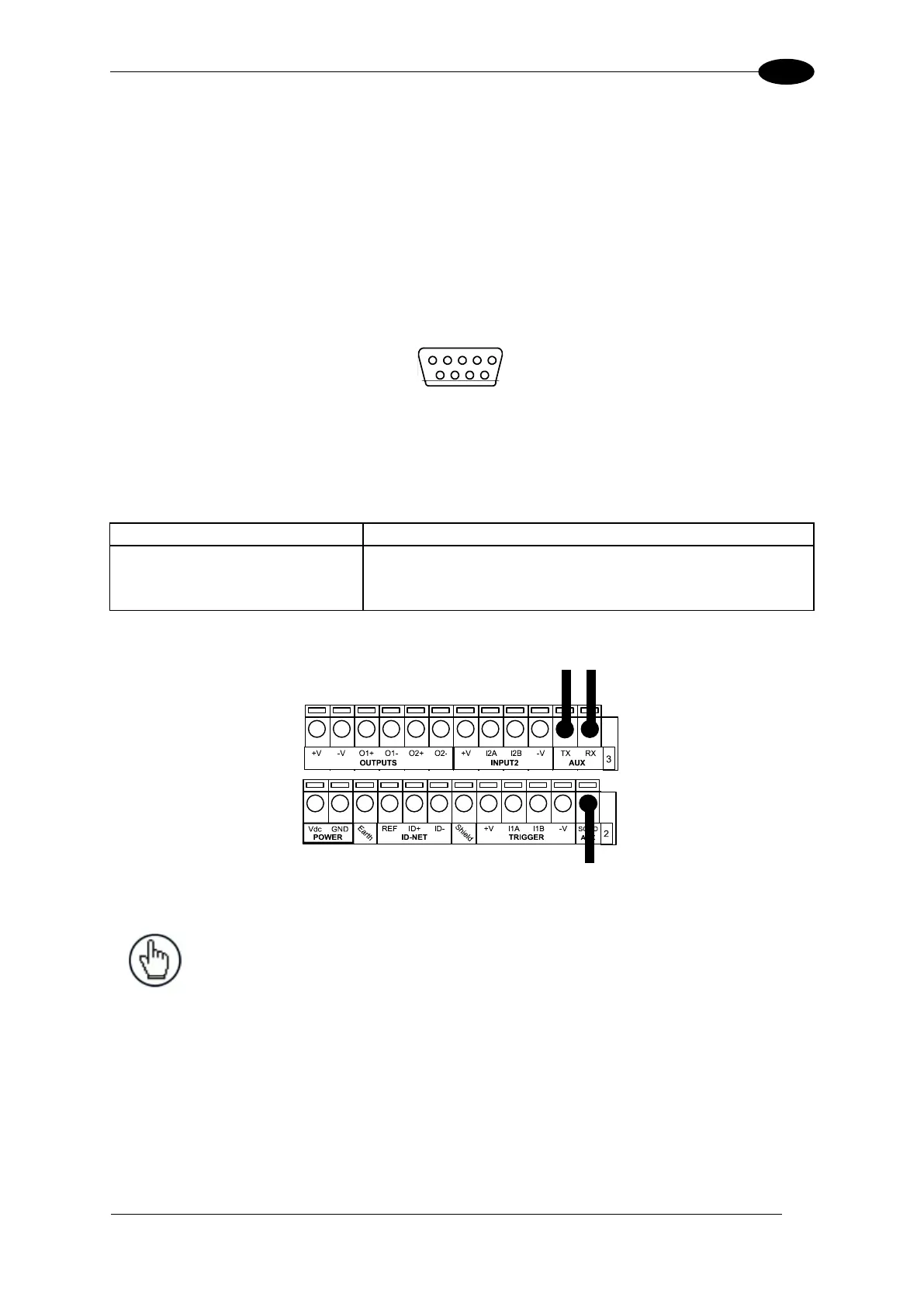

4.4 AUXILIARY RS232 INTERFACE
The RS232 auxiliary interface is available for Point-to-Point connections. When it is
connected to the host computer it allows transmission of code data.
The parameters relative to the aux interface (baud rate, data bits, etc.) can be defined
through the Reading Phase step (Channels) in DL.CODE.
The 9-pin female Auxiliary Interface connector inside the CBX is the preferred connector for
temporary communication monitoring.
5
1
6
9
Figure 49 - 9-pin female connector
If permanent system wiring is required, the following pins are used to connect the RS232
auxiliary interface:
CBX100/500
Function
RX
Auxiliary Interface Receive Data
TX
Auxiliary Interface Transmit Data
SGND
Auxiliary Interface Reference
RX TX
Reference
USER INTERFACE
Figure 50 - RS232 Auxiliary Interface Connections
NOTE: Do not connect the Aux Interface to the CBX spring clamp
connectors and the 9-pin connector simultaneously.
