INTRODUCTION
2.3 ID-NET
The ID-NET network is a built-in high-speed interface dedicated for
high-speed reader interconnection. ID-NET is in addition to the
Main and Auxiliary serial interfaces.
The following network configurations are available:

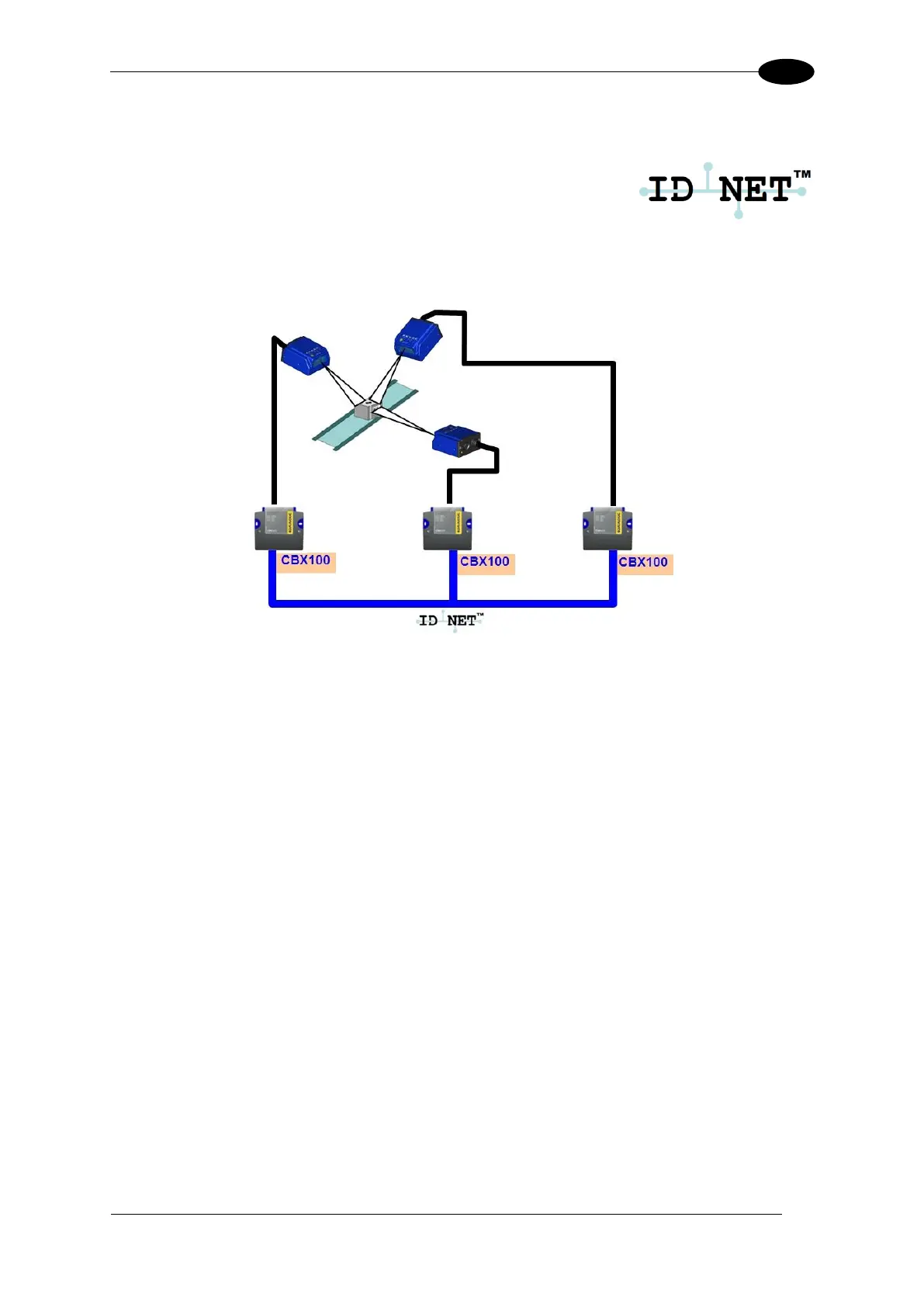

ID-NET Synchronized: Single station – multiple readers
ID-NET interface allows local connection of multiple readers reading different sides of the
same target. All readers share a single presence sensor and activate/deactivate
simultaneously.
At the end of each reading phase a single data message is transmitted to the host.
Thanks to ID-NET, data communication among readers is highly efficient so that an
immediate result will be available.
See par. 4.3 for connection details and par. 7.4 for configuration details.
