RAPID CONFIGURATION
STEP 4 – X-PRESS CONFIGURATION FOR FIXED FOCUS MODELS
NOTE: For Software Adjustable Focus models go to Step 3.
Matrix 210N™ fixed focus models provide a built-in aiming system to aid reader positioning.
The aiming system is accessed through the X-PRESS Interface.
1. Power the reader on. During the reader startup (reset or restart phase), all the LEDs blink
for one second. On the connector side of the reader near the cable, the “POWER ON”
LED (blue) indicates the reader is correctly powered.
2. Enter the Aim/Locate function by pressing and holding the X-PRESS push button until the
Aim LED is on.
3. Release the button to enter the Aim function. The aiming system turns on see Figure 10.
4. Place the application specific code in front of the reader at the reading distance
indicated for your model in the Reading Features Fixed Focus table in par.6.1, centering
it in the aiming system indicator.

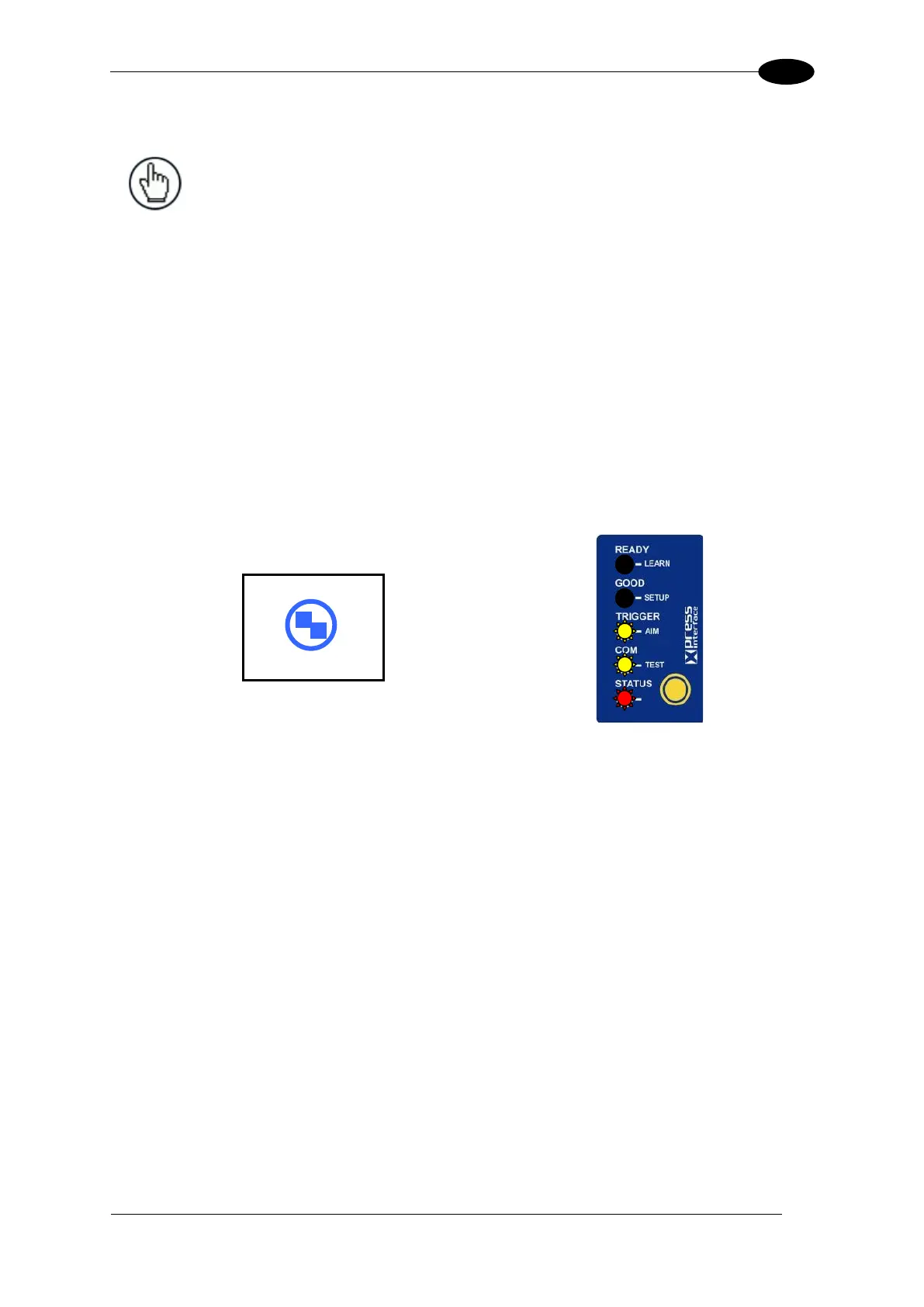

Figure 10 – Aiming Function Using The Blue Ring
Figure 11 – X-PRESS Interface: Aim Function
5. Exit the Aim function by pressing the X-PRESS push button once. The aiming system
turns off.
