Datalogic Matrix 210N - SERIAL CONNECTION

TYPICAL LAYOUTS
79
5
5.2 SERIAL CONNECTION
In this layout the data is transmitted to the Host on the main serial interface. The Ethernet
interface can be used for reader configuration by connecting a laptop computer running
DL.CODE.
Data can be transmitted on the RS232 auxiliary interface independently from the main
interface selection to monitor data.
When One Shot or Phase Mode operating mode is used, the reader can be activated by an
External Trigger (for example a pulse from a photoelectric sensor) when the object enters its
reading zone.

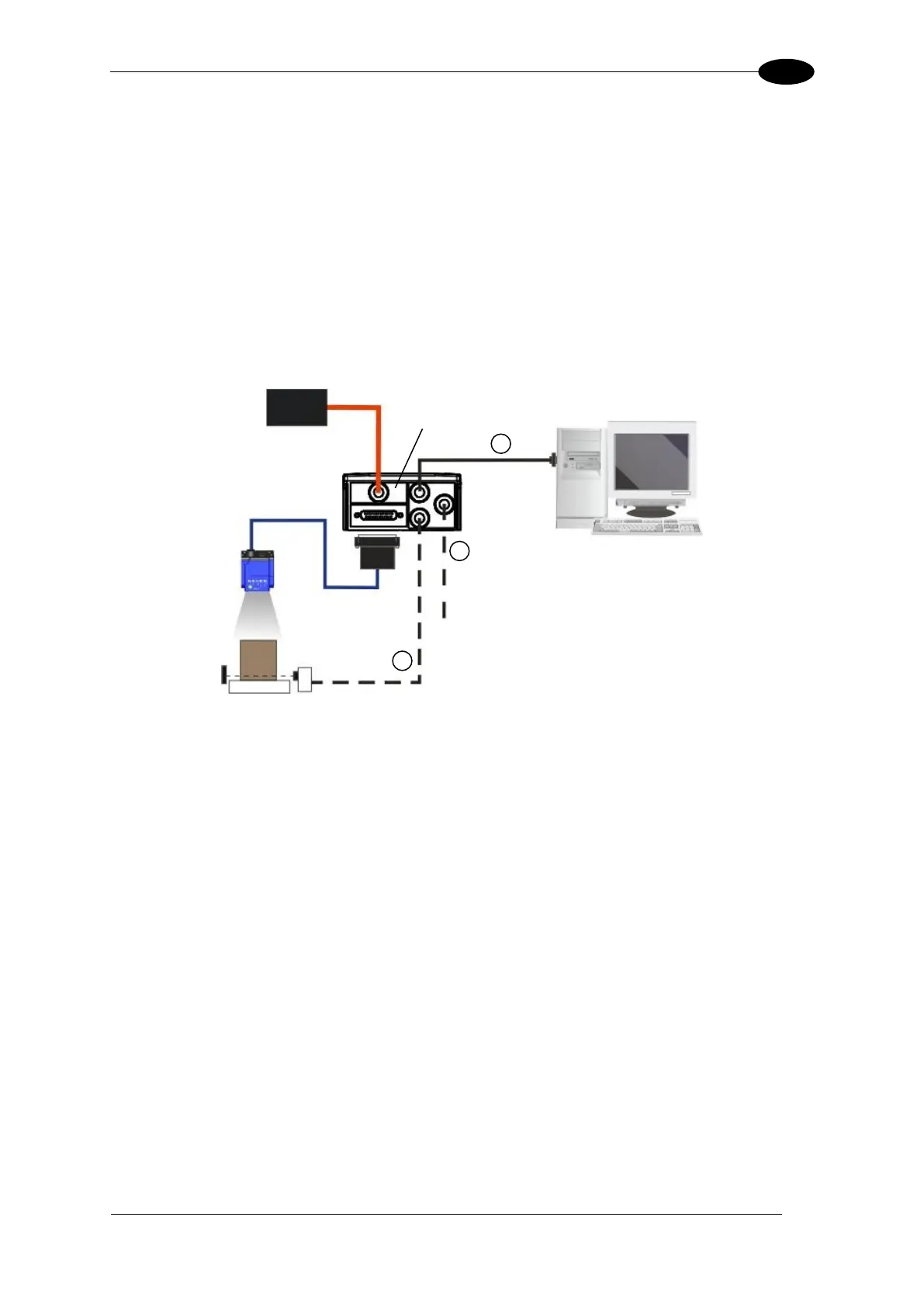

Figure 64 – Serial Interface Point-to-Point Layout
All devices always support multiple output channels (i.e. for data monitoring).
Matrix
210N
Alone
1
2
3

Main Serial Interface (RS232 or RS422 Full-Duplex)

Auxiliary Serial Interface (RS232 – Data Monitor)
 External Trigger (for One Shot or Phase Mode)
Host
PG6000
CBX
