4.8 ON-BOARD ETHERNET INTERFACE
The on-board Ethernet Interface can be used for TCP/IP communication with a remote or
local host computer by connecting the reader to either a LAN or directly to a host PC. There
is no need to use a crossover adapter since Matrix 210N incorporates an auto-cross function.
A CAB-ETH-M0x cable can be used to connect to a LAN.
On the Matrix 210N on-board Ethernet interface the following communication channels are
available:
 TCP Client
 TCP Server
 UDP Client
 FTP Client
The following Fieldbus protocols are also available over the on-board Ethernet interface:
 EtherNet/IP
 PROFINET IO
 Modbus TCP Client
For further details refer to the Help On Line page of the Reading Phase step (Channels) and
(Fieldbuses) in DL.CODE.
4.9 USER INTERFACE – SERIAL HOST
The following table contains the pinout for standard RS232 PC Host interface. For other user
interface types please refer to their own manual.

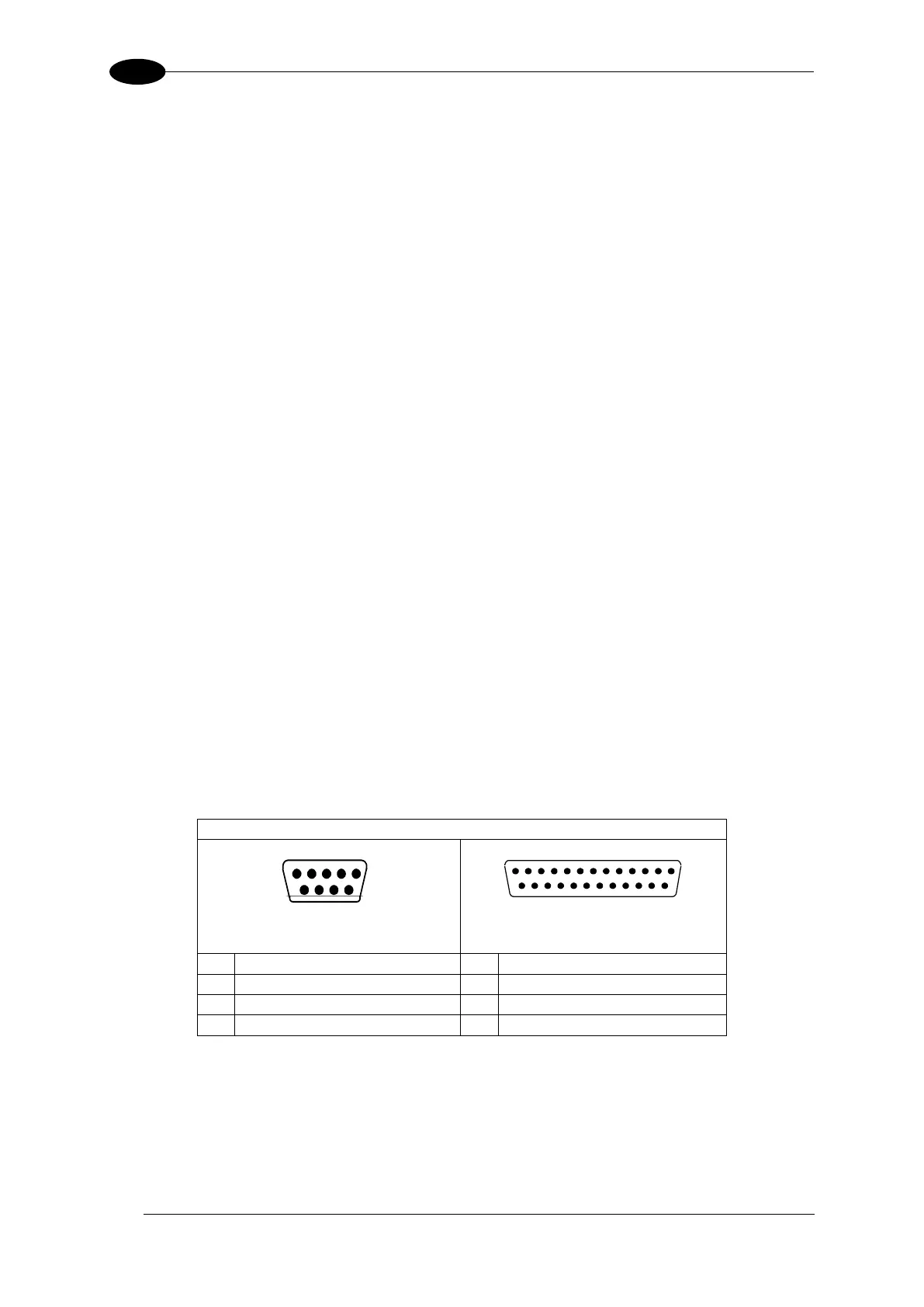

RS232 PC-side connections
1
5
9
6
9-pin male connector
13
25
14
1
25-pin male connector
Pin
Name
Pin
Name
2
RX
3
RX
3
TX
2
TX
5
GND
7
GND
