2.2 INDICATORS AND KEYPAD BUTTON

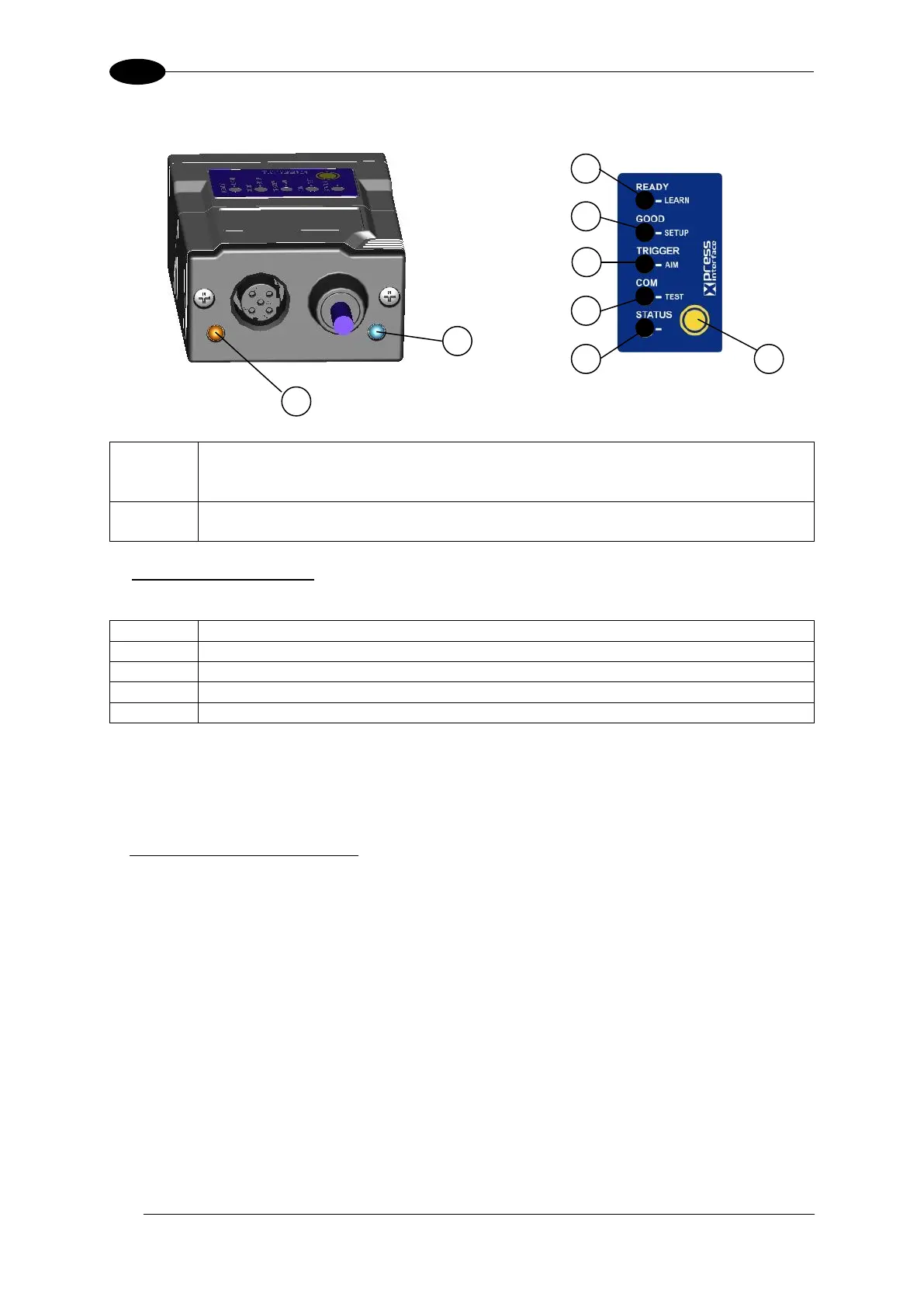

Figure 19 - Indicators
The following LED indicators are located on the reader:
NET
On the connector side of the reader near the Ethernet connector, the orange
ETHERNET NETWORK PRESENCE LED indicates the on-board Ethernet
network connection. (Figure 19, 1)
PWR
On the connector side of the reader near the cable, the blue POWER ON LED
indicates the reader is correctly powered. (Figure 19, 2)
In normal operating mode the colors and meaning of the five LEDs are illustrated in the
following table:
READY
green LED indicates that the reader is ready to operate (Figure 19, 3)
GOOD
green LED confirms successful reading (Figure 19, 4)
TRIGGER
yellow LED indicates the status of the reading phase (Figure 19, 5)
COM
yellow LED indicates active communication on the main serial port * (Figure 19, 6)
STATUS
red LED indicates a NO READ result (Figure 19, 7)
* When connected to a Fieldbus network through the CBX500, the COM LED is always active, even in
the absence of data transmission, because of polling activity on the Fieldbus network.
During the reader startup (reset or restart phase), these five LEDs blink for one second.
In X-PRESS Configuration mode the colors and meaning of these five LEDs are described in
par. 2.4.
The keypad button (Figure 19, 8, is software programmable. By default it starts the X-PRESS
interface for quick installation without using a PC (see chp. 1).
