ON-BOARD ETHERNET CONNECTOR
A Standard M12 D-Coded connector is provided for the on-board Ethernet connection. This
interface is IEEE 802.3 10 BaseT and IEEE 802.3u 100 BaseTx compliant.

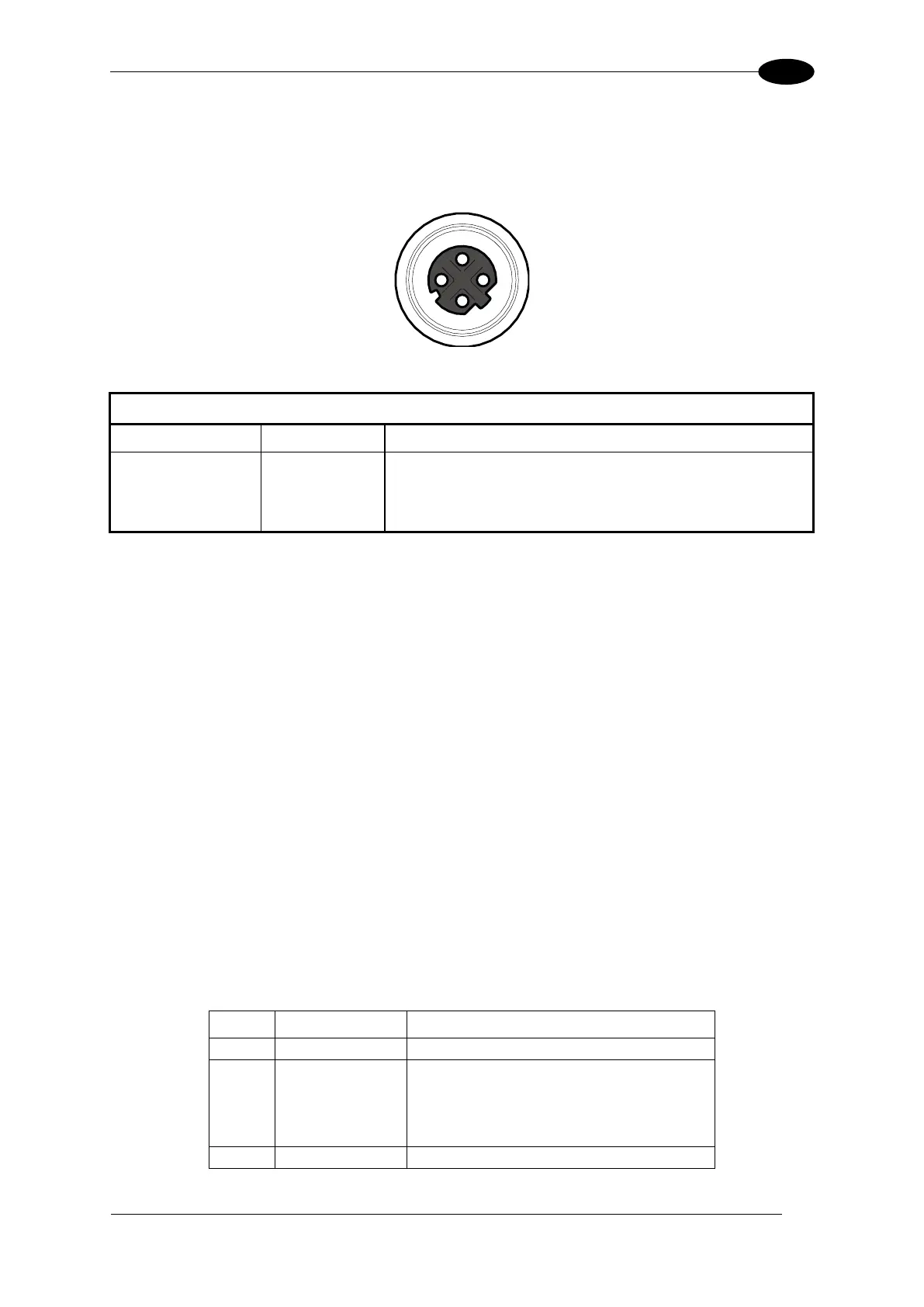

Figure 90 - M12 D-Coded Female Ethernet Network Connector
On-Board Ethernet Network Connector Pinout
Pin
Name
Function
1
TX +
Transmitted data (+)
2
RX +
Received data (+)
3
TX -
Transmitted data (-)
4
RX -
Received data (-)
ID-NET NETWORK TERMINATION
The network must be properly terminated by a 120 Ohm resistor at the first and last reader of
the network.
INPUTS
There are two opto-coupled polarity insensitive inputs available on the 25-pin connector of
the reader: Input 1 (External Trigger) and Input 2, a generic input. See par. 4.5 for more
details.
The electrical features of both inputs are:
V
AB
= 30 Vdc max.
I
IN
= 10 mA max.
The relative pins on the 25-pin connector are:
Pin
Name
Function
9
Vdc
Power Supply input voltage +
18
I1A
External Trigger A (polarity insensitive)
19
I1B
External Trigger B (polarity insensitive)
6
I2A
Input 2 A (polarity insensitive)
10
I2B
Input 2 B (polarity insensitive)
7
GND
Power Supply input voltage -
