MATRIX 210N™ REFERENCE MANUAL
7.2.3 Multi Image Acquisition Settings
When controlled variable conditions occur in the application, Multiple Image Acquisition
Settings can be defined to create a database of parameter groups that handle each specific
application condition. This database of pre-defined settings improves system flexibility and
readiness by being applied either automatically or selectively by an activation event.
For example, an application may have several stable but different lighting conditions which
require different lighting options. One Image Acquisition Setting could enable and use an
internal illuminator and another setting could enable and use an external lighting system.
This feature is available for all Operating Modes.

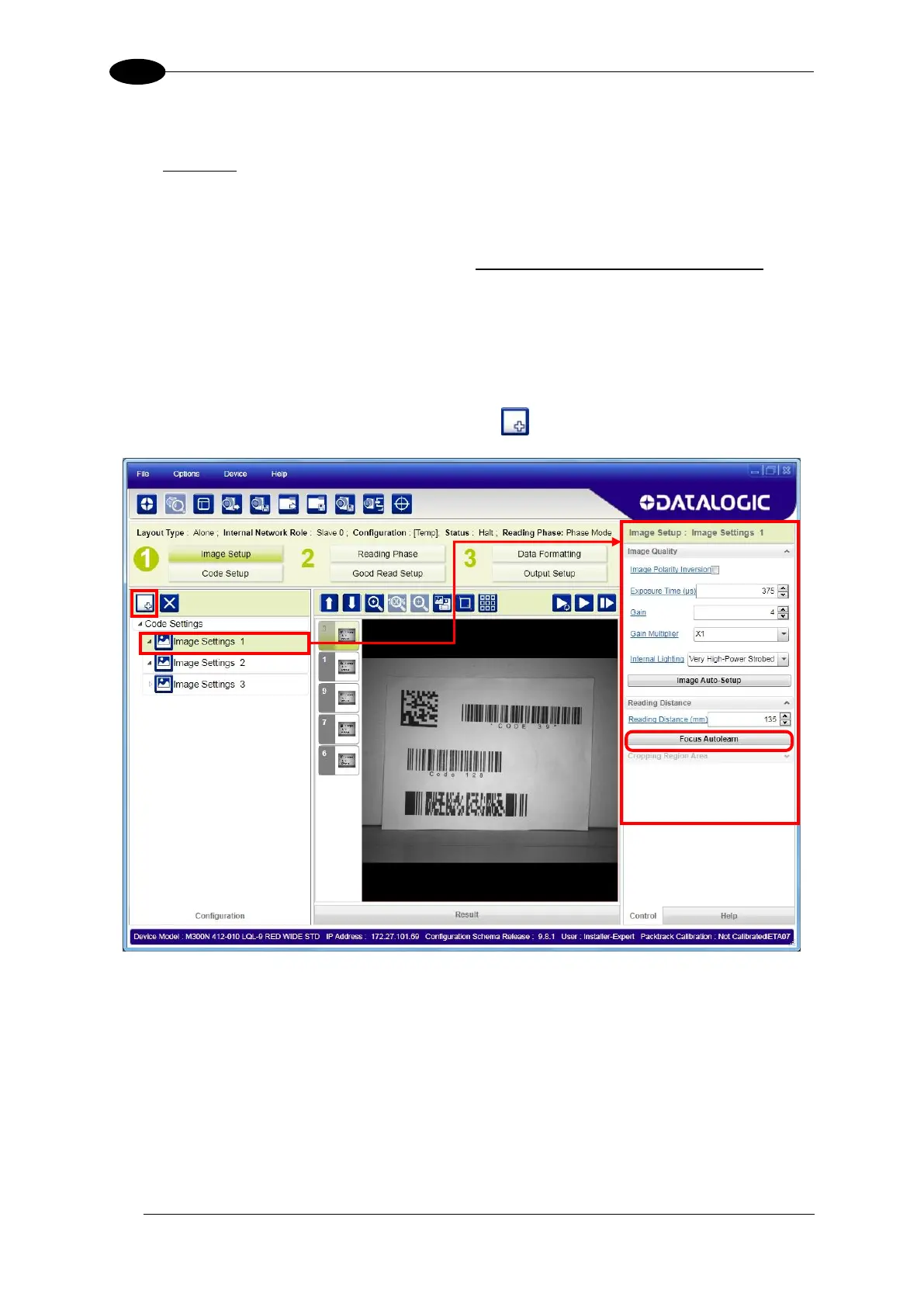

Image Settings are found in the DL.CODE Image Setup step. Up to 10 different Image
Settings can be configured by adding them with the icon.
For each Image Setting condition start Image Auto Setup, select the Static or Dynamic Self-
Tuning option; and Apply it.
