USER INTERFACE – SERIAL HOST
RS232 PC-side connections
1
5
9
6
9-pin male connector
13
25
14
1
25-pin male connector
Pin
Name
Pin
Name
2
RX
3
RX
3
TX
2
TX
5
GND
7
GND

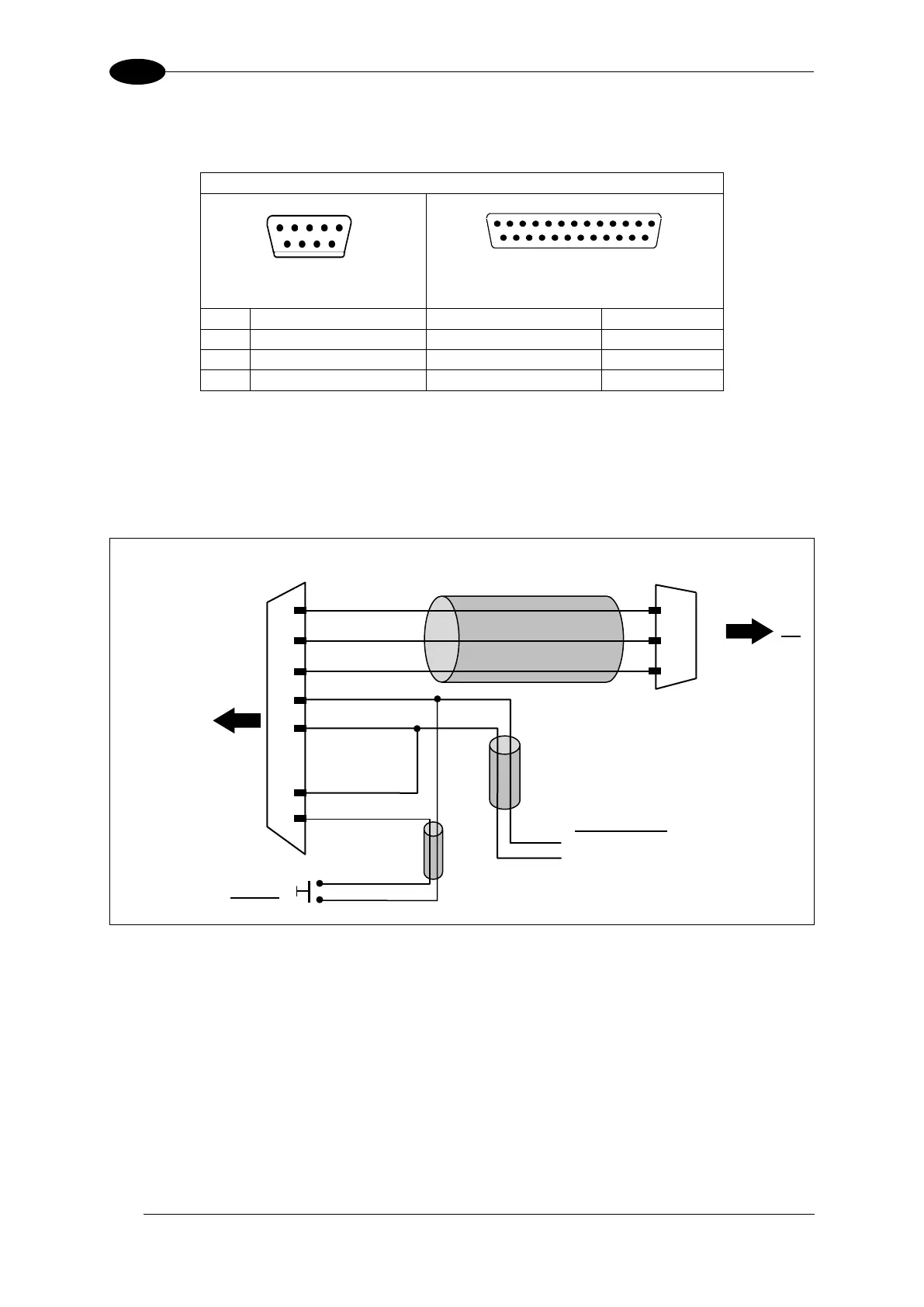

How To Build A Simple Interface Test Cable:
The following wiring diagram shows a simple test cable including power, external (push-
button) trigger and PC RS232 COM port connections.
Figure 95- Test Cable for Matrix 210N
Matrix 210N
25-pin D-sub female
7
20
GND
RX
TX
21
25
13
GND
Vdc
9-pin D-sub female
GND
TX
RX
PC
2
3
5
18
I1A
Power Supply
Power GND
Vdc (10 – 30 Vdc)
Trigger
I1B
19
