Datalogic Matrix 210N - MECHANICAL DIMENSIONS

MATRIX 210N™ REFERENCE MANUAL
52
3
3.2 MECHANICAL DIMENSIONS
Matrix 210N can be installed to operate in different positions. The four screw holes (M3 x 4)
on the body of the reader are for mechanical fixture (Figure 31).

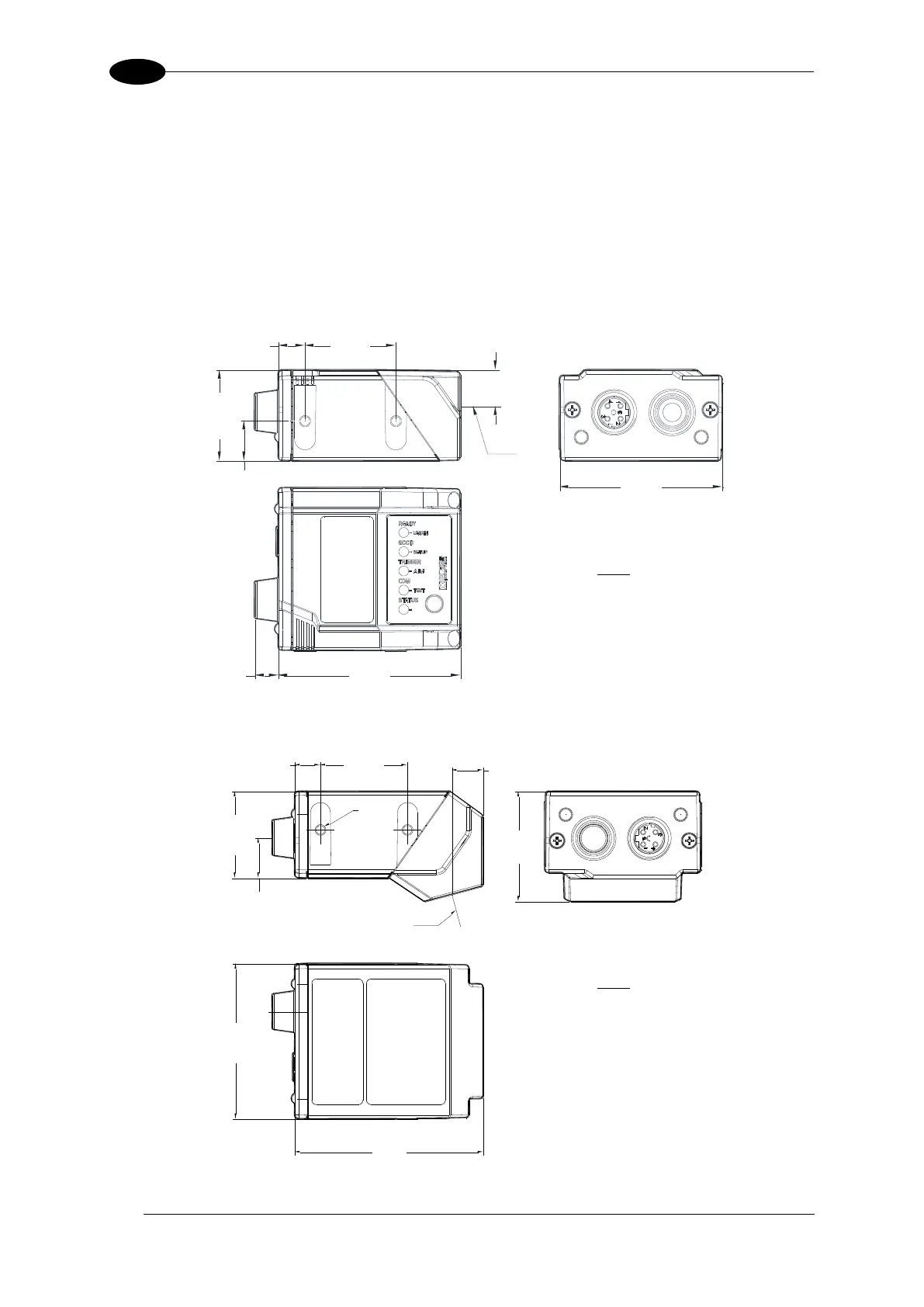

The diagram below gives the overall dimensions of the reader and may be used for its
installation.
Refer to par. 3.3 for various mounting solutions and correct positioning and chp. 6 for
Reading Distance considerations.
Figure 31 – Straight Model Overall Dimensions
Figure 32 – 90° Model Overall Dimensions
45
[1.76]
10.0
[0.39]
25.0
[0.98]
11.0
[0.43]
25
[0.98]
50
[1.97]
7
[0.29]
6
[0.25]
32
[1.25]
9.0
[0.36]
25.0
[0.98]
7
[0.29]
M3X4
n°4
25
[0.98]
45
[1.76]
54
[2.13]
11
[0.45]
mm
[in]
mm
[in]
Optical axis
Optical axis
