5.3 FIELDBUS CONNECTION
In this layout a single reader functions as a Slave node on a Fieldbus network. The data is
transmitted to the Host through an accessory Fieldbus interface board installed inside the
CBX500 connection box.
Reader configuration can be accomplished through the Ethernet interface using the
DL.CODE configuration program.
Data can be transmitted on the RS232 auxiliary interface independently from the Fieldbus
interface selection to monitor data.
When One Shot or Phase Mode operating mode is used, the reader can be activated by an
External Trigger (photoelectric sensor) when the object enters its reading zone.

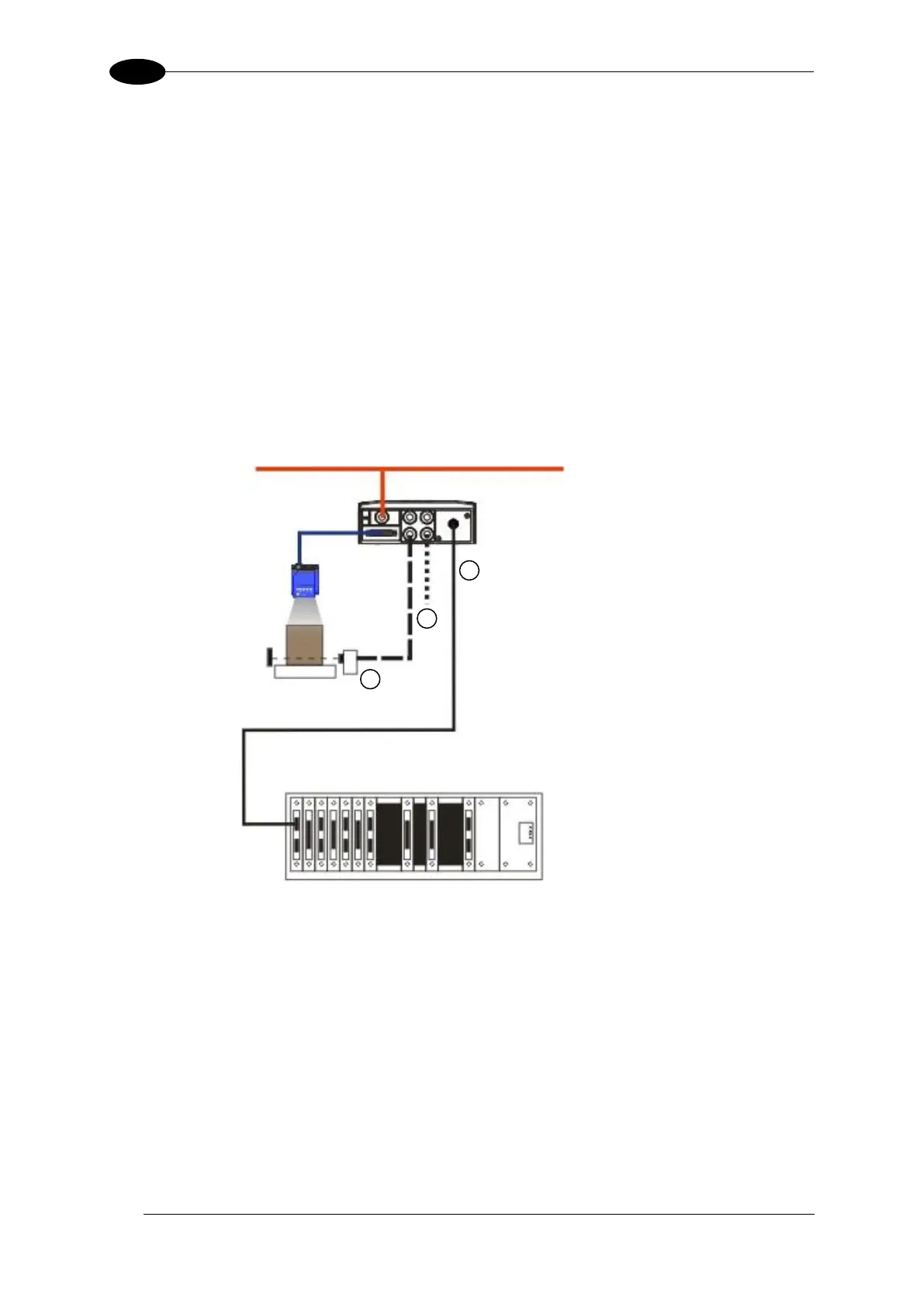

Figure 65 – Fieldbus Interface Point-to-Point Layout
All devices always support multiple output channels (i.e. for data monitoring).

Fieldbus Interface (Profibus, DeviceNet, etc.)
 Auxiliary Serial Interface (RS232 – Data Monitor)
 External Trigger (for One Shot or Phase Mode)
Matrix 210N
1
2
3
Host
Power
CBX500
Alone
