Datalogic Matrix 210N - MOUNTING AND POSITIONING MATRIX 210 N

INSTALLATION
55
3

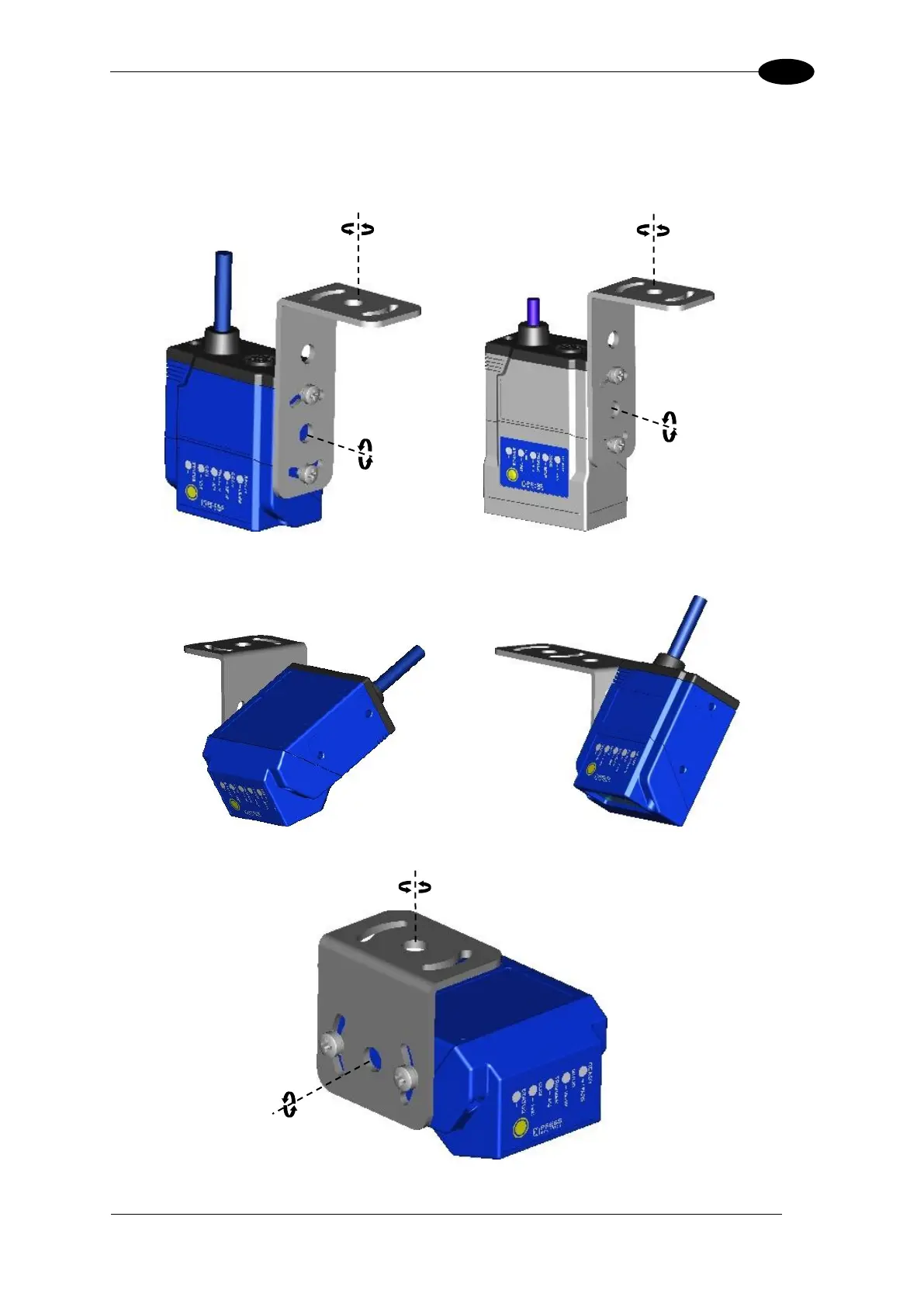

3.3 MOUNTING AND POSITIONING MATRIX 210N
Using the Matrix 210N mounting brackets you can obtain rotation on the various axes of the
reader as shown in the diagrams below:
Figure 36 –Straight Model with ST-336 Mounting Bracket – External Positioning
Figure 37 –Mounting Bracket External Positioning
Figure 38 –90° Model with ST-337 Mounting Bracket - Internal Positioning
Tilt
Skew
Tilt
Skew
Tilt
Skew
