9. Enter the Learn function by pressing and holding
the X-PRESS push button until the Learn LED is
on.
10. Release the button to enter the Learn function.
The Learn LED will blink until the procedure is
completed.
The Learn procedure ends when the Image
Processing and Decoding parameters for a single
code are successfully saved in the reader memory,
the Green Spot is activated, the Learn LED will stop
blinking and Matrix 210N emits 3 high pitched
beeps
1
.
If the autolearning cannot be reached after a
timeout of about 3 (three) minutes Matrix 210N will
exit without saving the parameters to memory, the
Learn LED will stop blinking and in this case Matrix
210N emits a long low pitched beep.

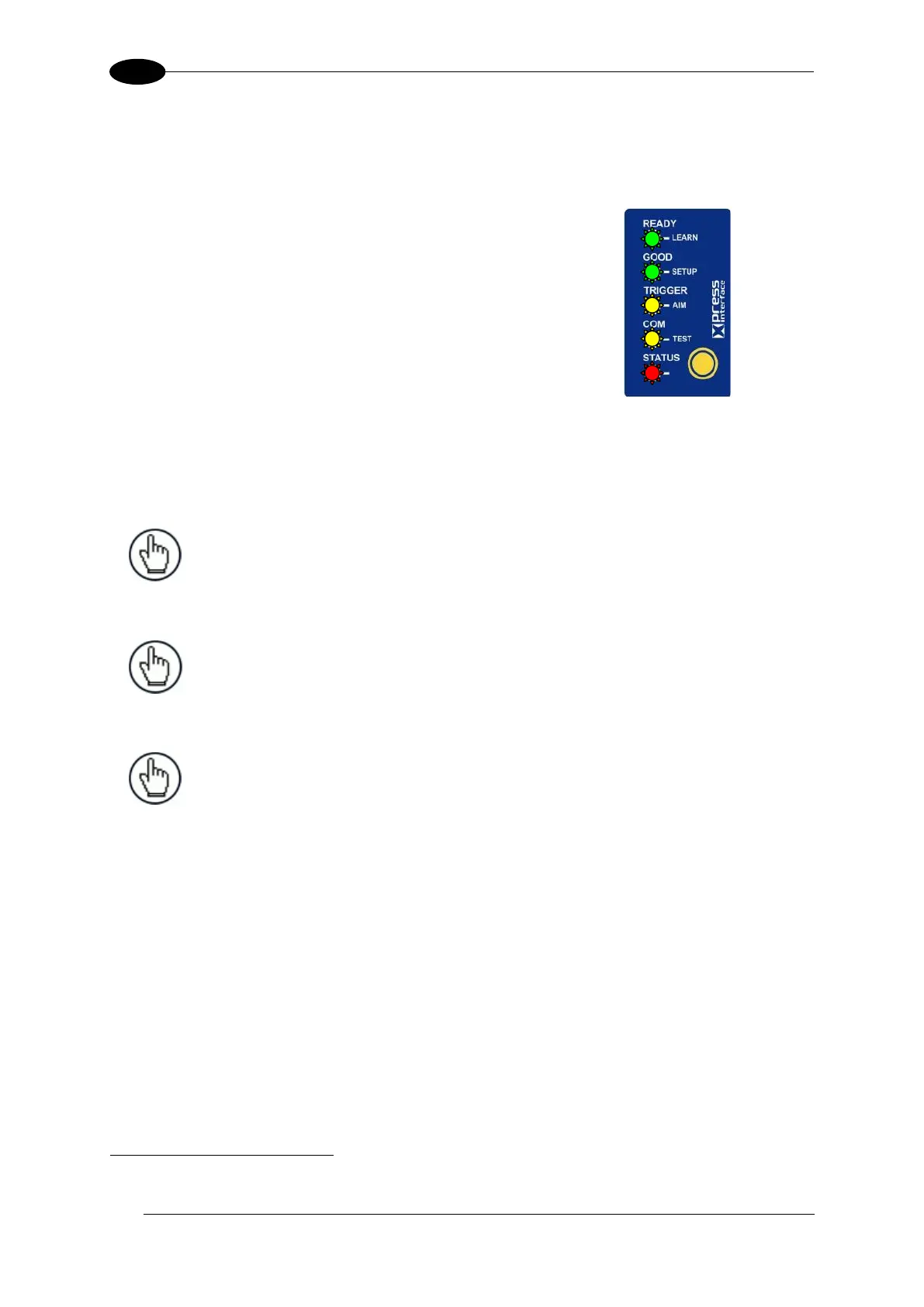

Figure 9 – X-PRESS Interface: Learn
Function
NOTE: When using X-PRESS or the BM150 menu to perform the Auto-learn,
only a single code can be configured (successive Learns will substitute the
current code). To configure multiple code symbologies, use the DL.CODE
Auto-learn procedure.
NOTE: You can always exit from any X-PRESS function at any time by
pressing the X-PRESS push button once. After a short delay the procedure is
cancelled.
NOTE: If you have used this procedure to configure Matrix 210N go to step
7.
The Learn procedure will not recognize the following symbologies: Postal Codes, Pharmacode, MSI, Standard 2 of 5,
Matrix 2 of 5.
