RAPID CONFIGURATION
Once Matrix 210N is focused at the correct reading distance, you must configure it for
optimal code reading relative to your application.
Aim
5. Repeat the Aim function, but now position a single
code from your application at the center of the
FOV (equidistant from the laser pointers).
The reader may start flashing and try to perform
autofocus.
6. To avoid overwriting the distance and PPI values
previously set, exit the Aim function by pressing
the X-PRESS push button once.
After a short delay the Aim function is cancelled
and the laser pointers turn off.

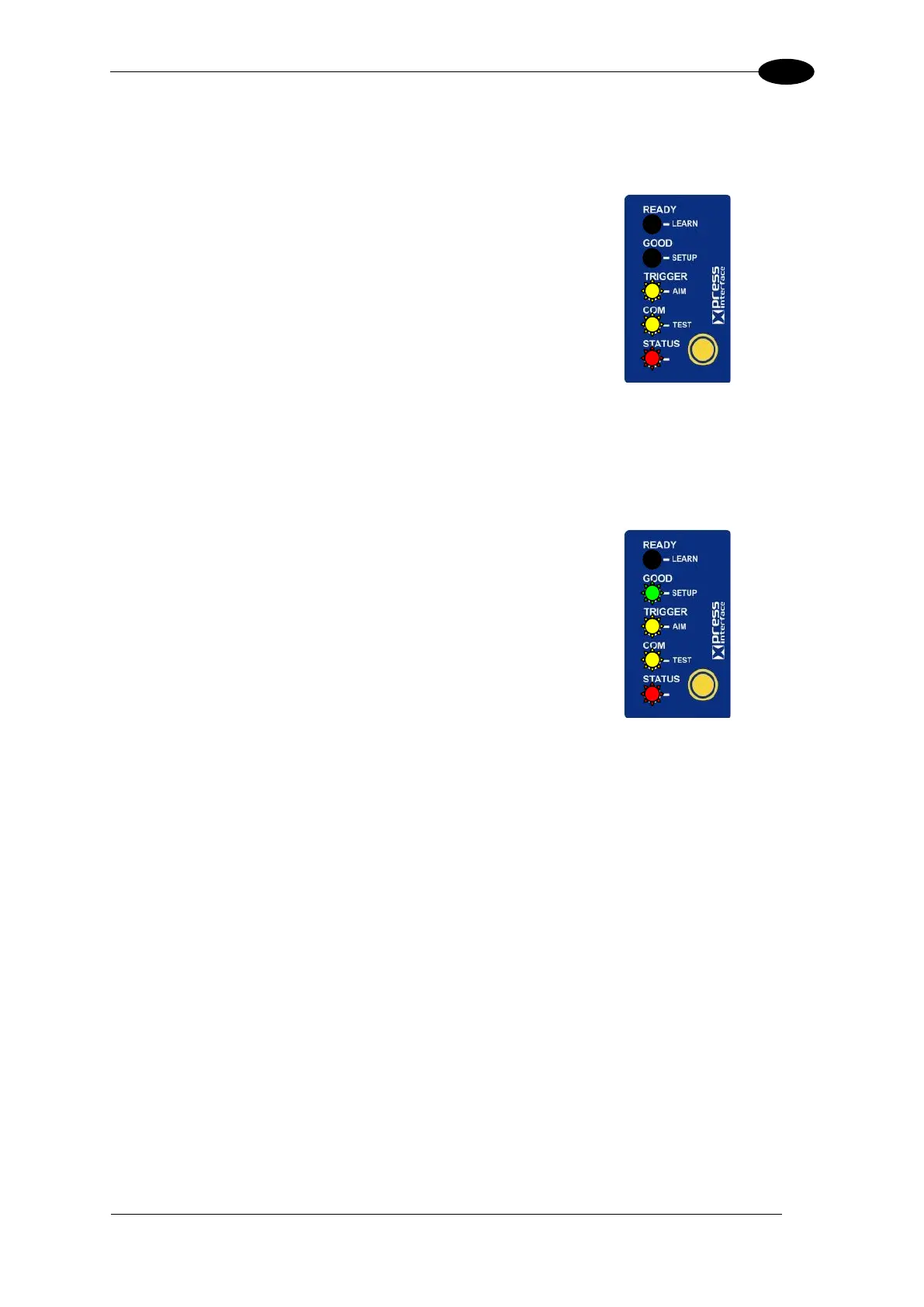

Figure 7 – X-PRESS Interface: Aim
Function
Setup
7. Enter the Setup function by pressing and holding
the X-PRESS push button until the Setup LED is
on.
8. Release the button to enter the Setup function.
The Setup LED will blink until the procedure is
completed.
The Setup procedure ends when the Image
Acquisition parameters are successfully saved in
the reader memory, the Setup LED will stop
blinking and Matrix 210N emits 3 high pitched
beeps.
If the calibration cannot be reached after a timeout
of about 5 (five) seconds Matrix 210N will exit
without saving the parameters to memory, the
Setup LED will stop blinking and in this case Matrix
210N emits a long low pitched beep.
Figure 8 – X-PRESS Interface: Setup
Function
