MATRIX 210N™ REFERENCE MANUAL

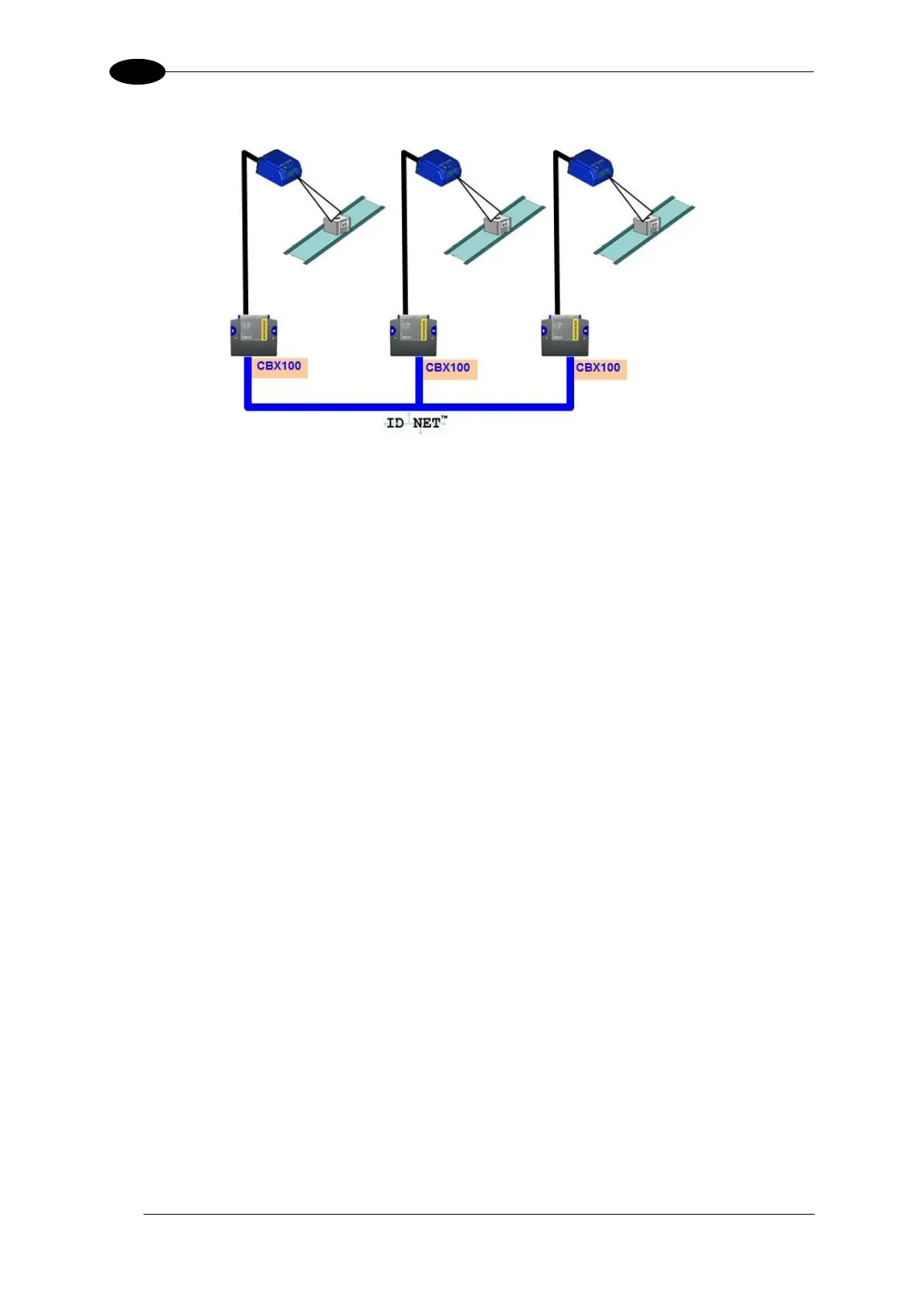

ID-NET™ Multidata: Multiple stations – single reader
ID-NET interface allows connection of readers reading objects placed on independent
conveyors. All readers are typically located far away from each other and they can have
different operating modes from each other.
At the end of each reading phase, each reader transmits its own data message to the host.
Thanks to ID-NET, data collection among readers is accomplished at a high speed without
the need of an external multiplexing device. This leads to an overall cost reduction and to
simple system wiring.
See par. 4.3 for connection details and par. 7.4 for configuration details.
