MATRIX 210N™ REFERENCE MANUAL
3. Now save them to a new Slave specific application job name
.

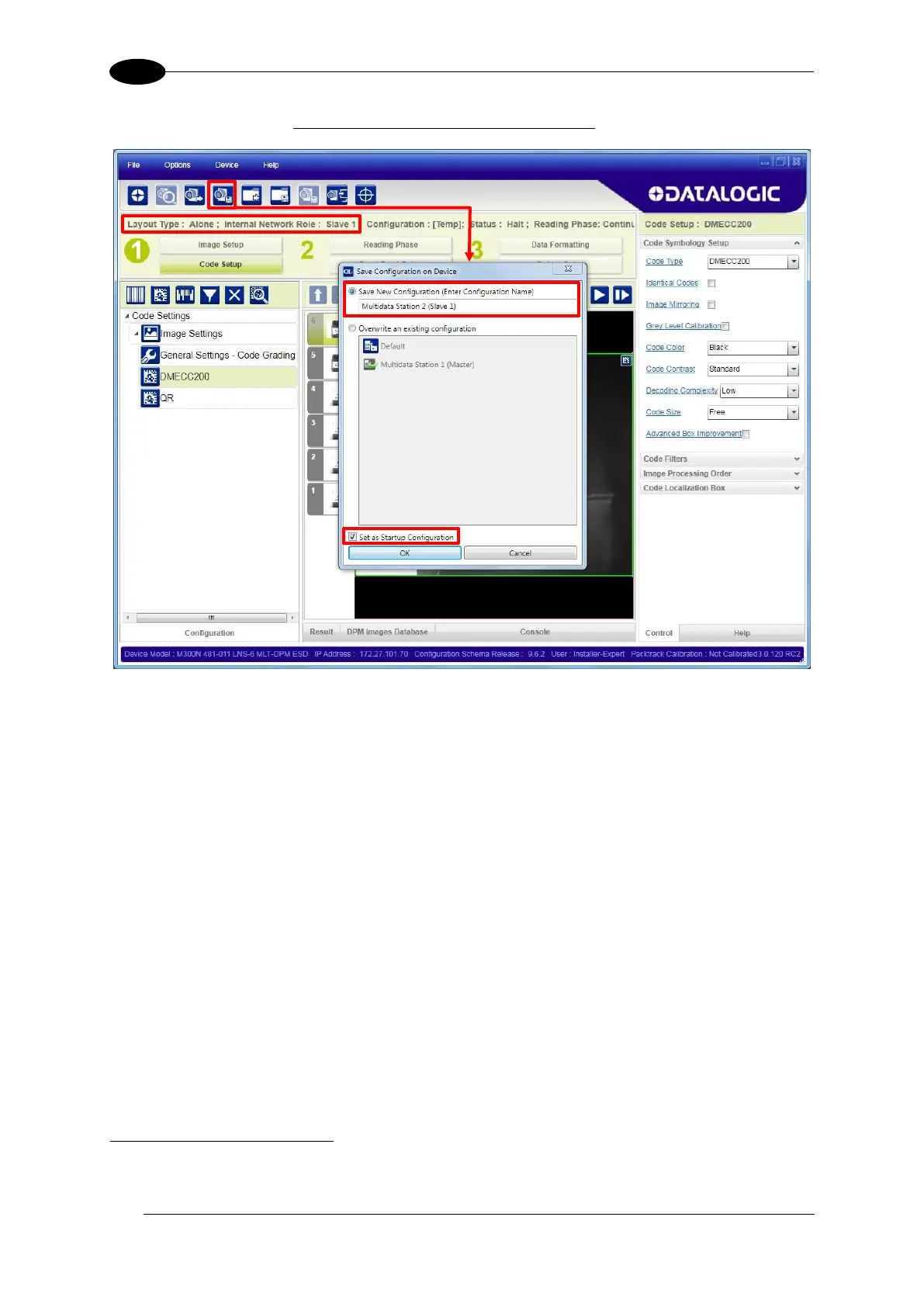

Figure 83 – Saving Multidata Configuration to Slave 1
Repeat this procedure for each Slave device until the entire network is configured.
The following screenshots show the pass-through configuration settings for the three devices
in the example in par. 5.5.
An application job with the same name as the Master’s (but with Slave specific configuration parameters), has been saved to
the Slaves. Each Slave has its own configuration parameters saved in its own copy of the application job. There are no common
parameters managed by the Master for Multidata configurations.
